Pinpoint Test K - Washer Pump Is In Operative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

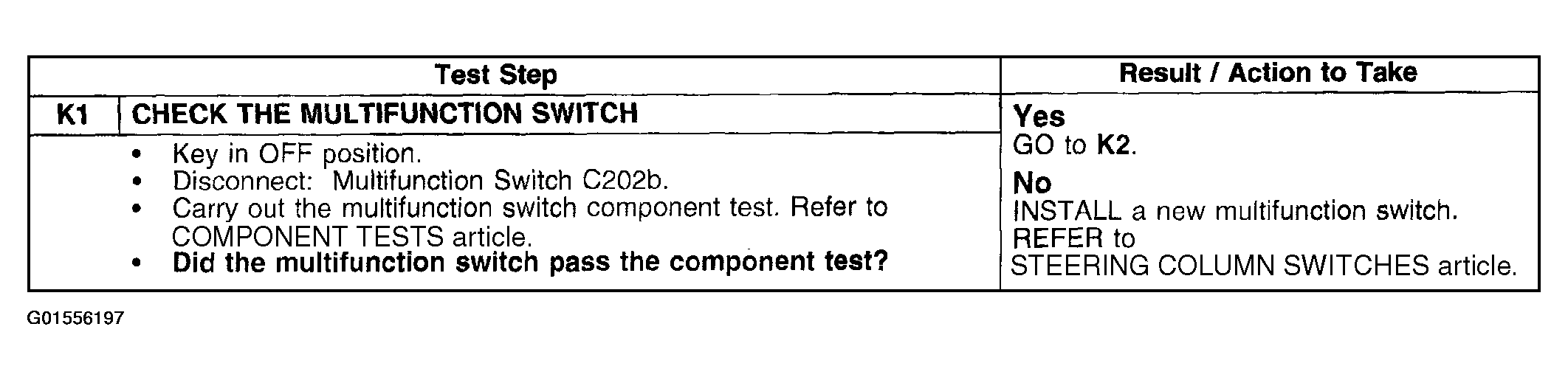

Fig 1: Pinpoint Test K - Washer Pump Is In Operative (K1)

G01556197

Courtesy of FORD MOTOR CO.

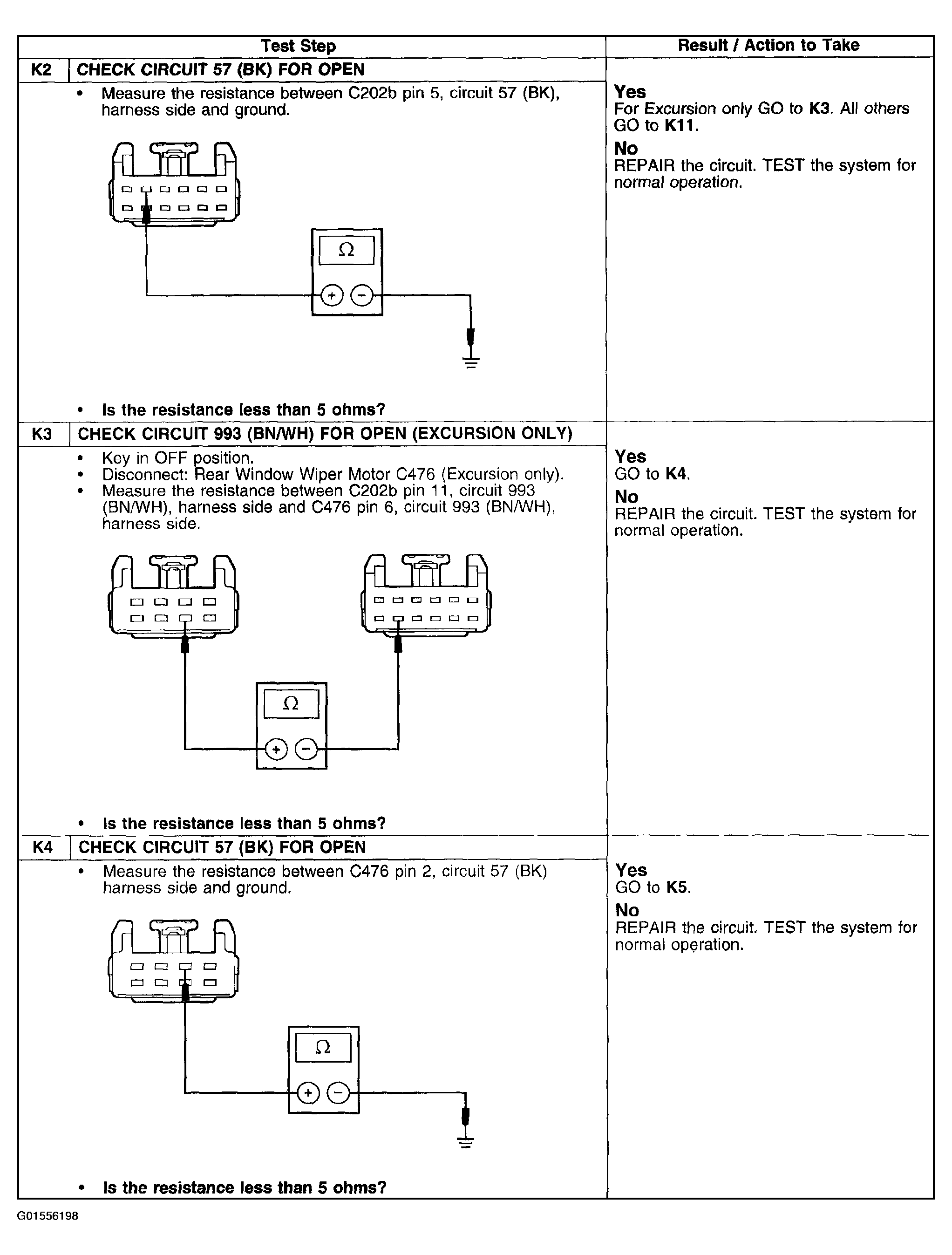

Fig 2: Pinpoint Test K - Washer Pump Is In Operative (K2 To K4)

G01556198

Courtesy of FORD MOTOR CO.

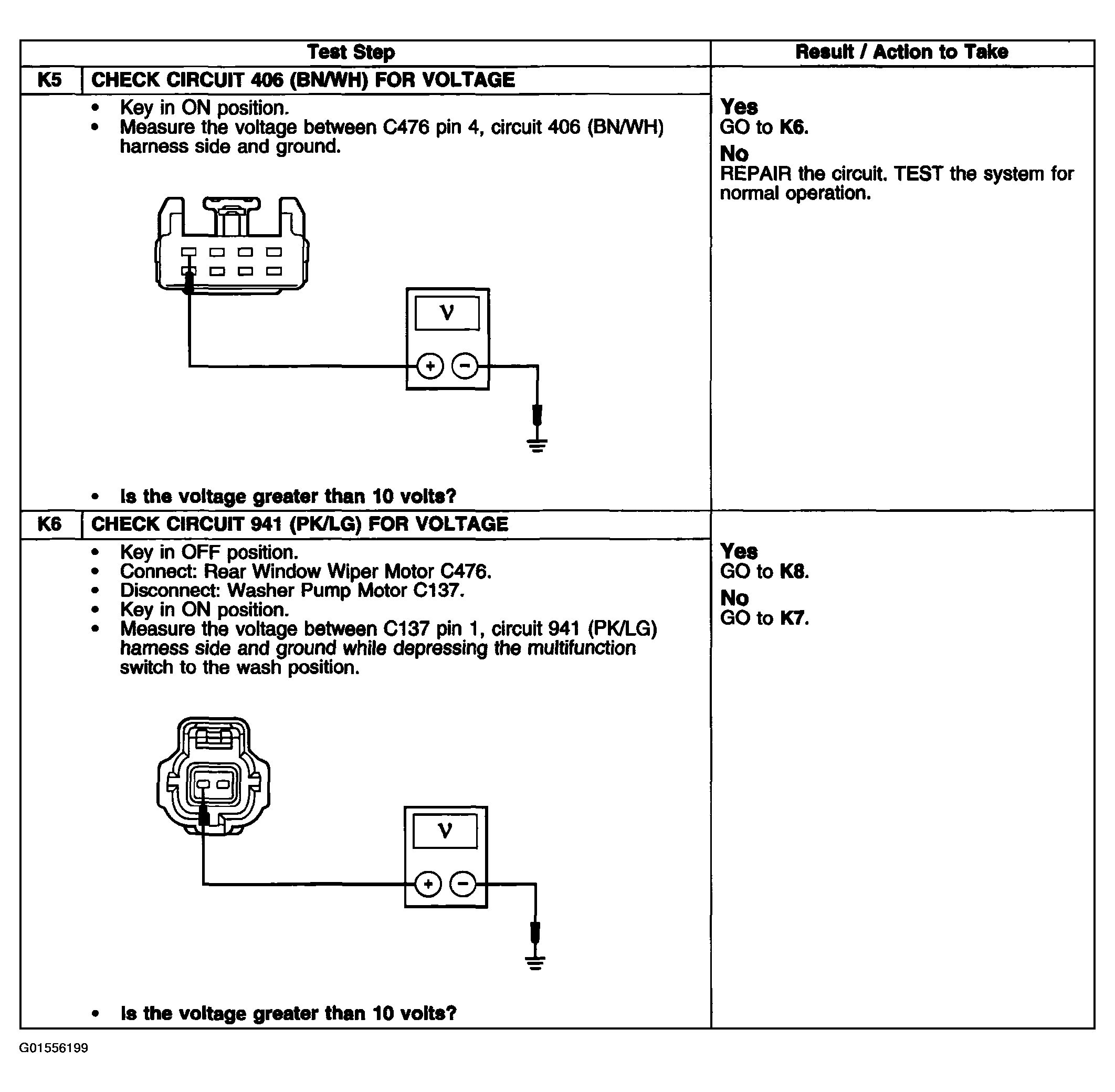

Fig 3: Pinpoint Test K - Washer Pump Is In Operative (K5 To K6)

G01556199

Courtesy of FORD MOTOR CO.

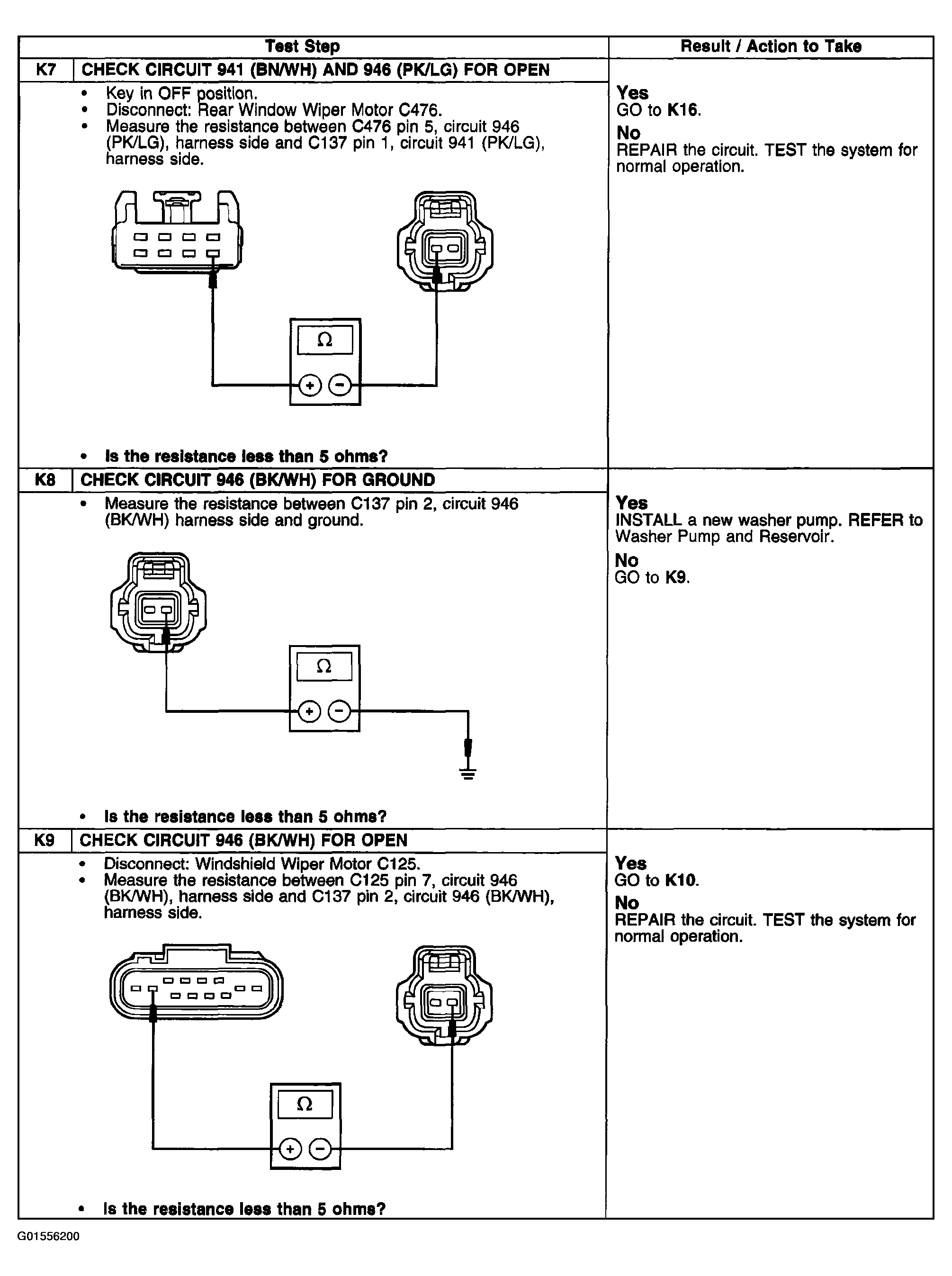

Fig 4: Pinpoint Test K - Washer Pump Is In Operative (K7 To K9)

G01556200

Courtesy of FORD MOTOR CO.

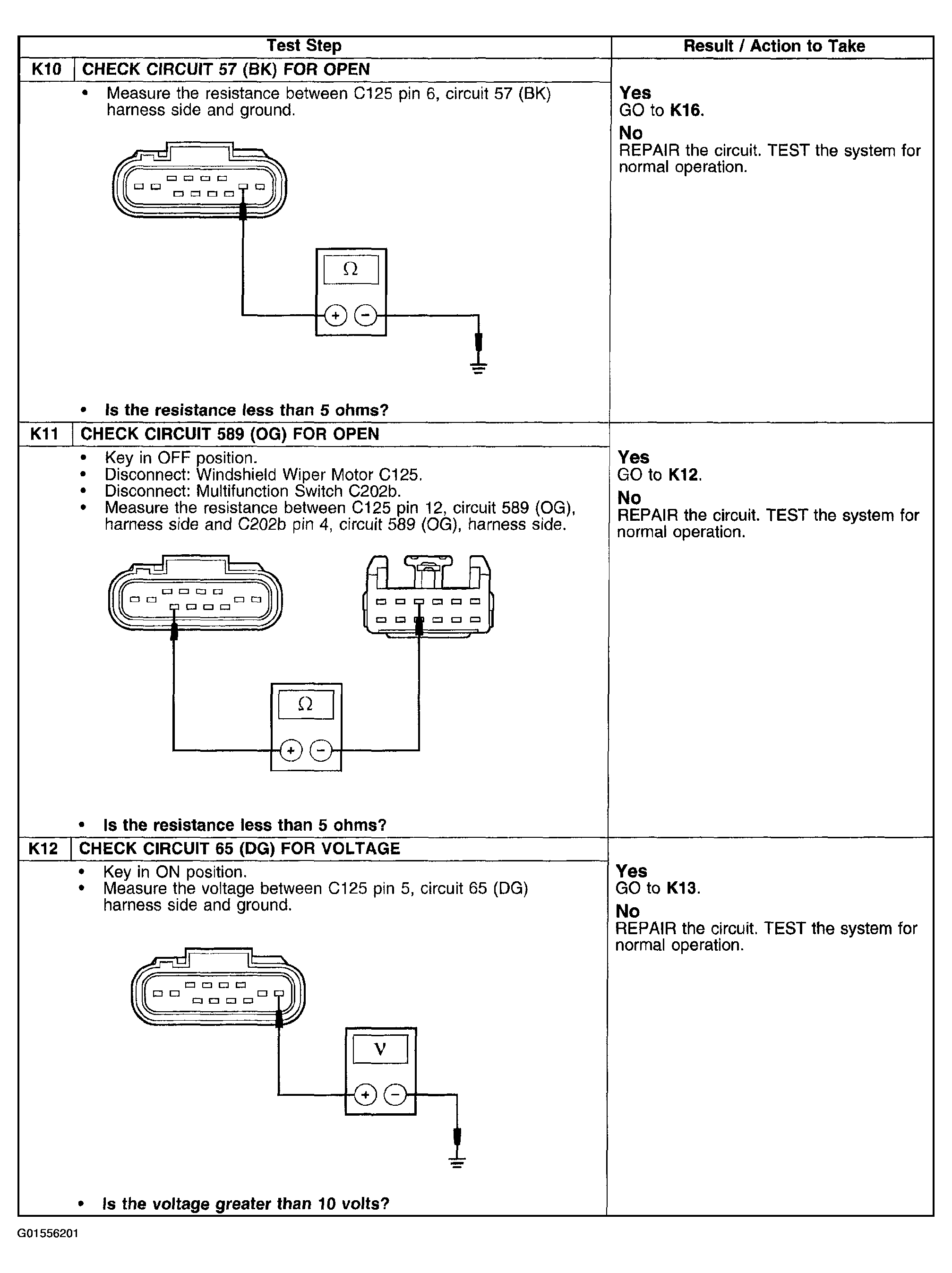

Fig 5: Pinpoint Test K - Washer Pump Is In Operative (K10 To K12)

G01556201

Courtesy of FORD MOTOR CO.

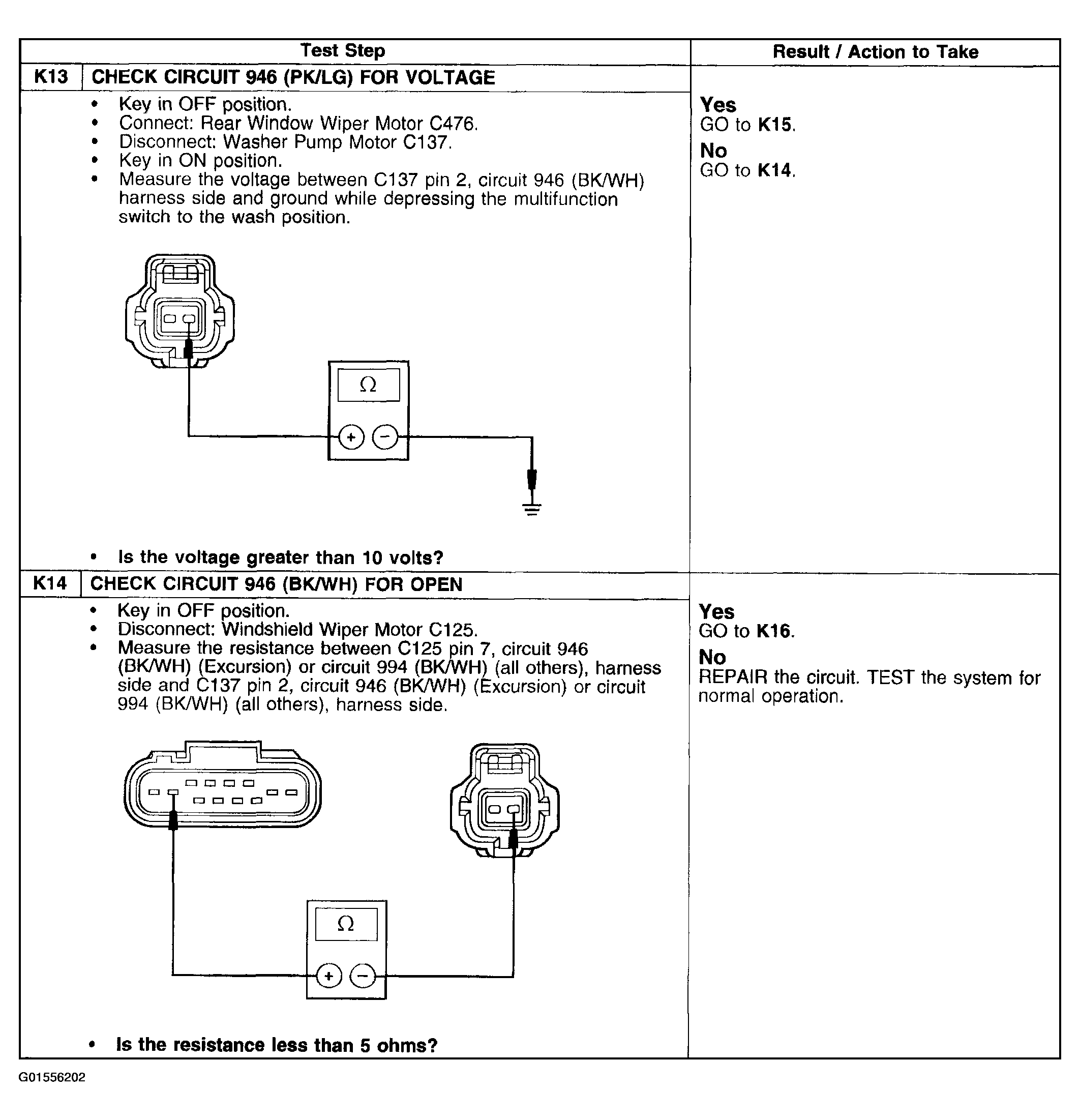

Fig 6: Pinpoint Test K - Washer Pump Is In Operative (K13 To K14)

G01556202

Courtesy of FORD MOTOR CO.

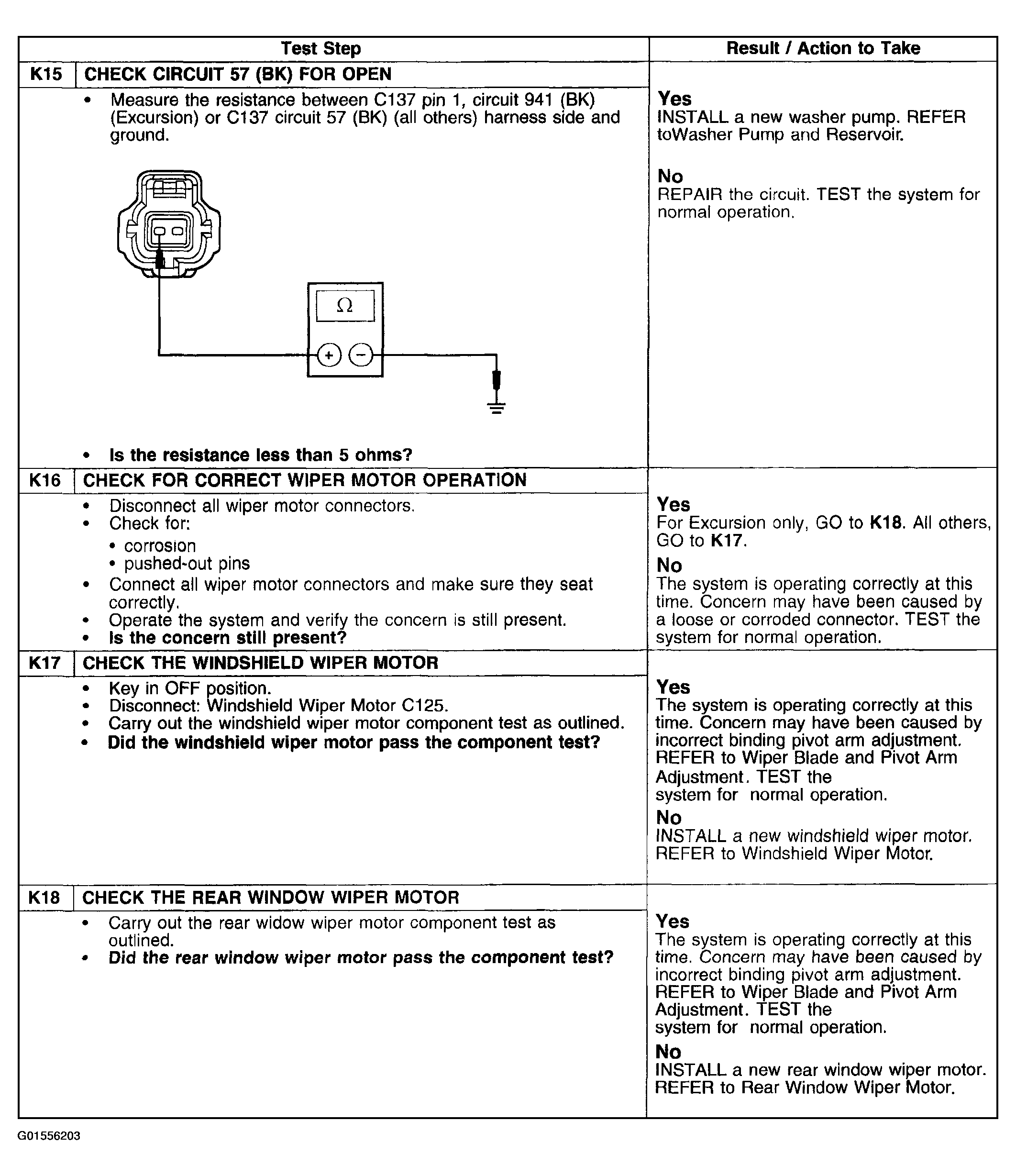

Fig 7: Pinpoint Test K - Washer Pump Is In Operative (K15 To K18)

G01556203

Courtesy of FORD MOTOR CO.
