Pinpoint Test D - Rear Wiper Stays On Continuously

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

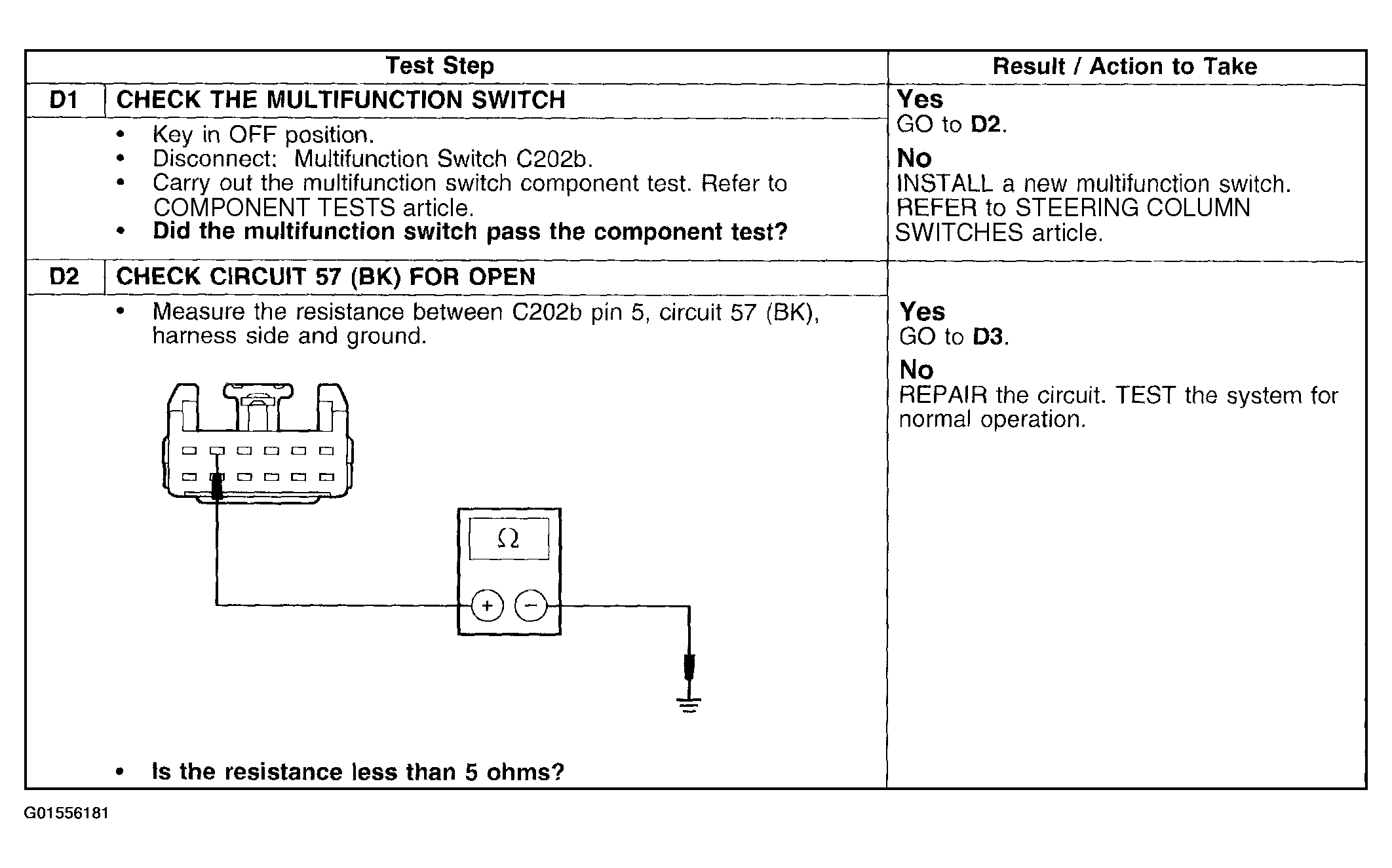

Fig 1: Pinpoint Test D - Rear Wiper Stays On Continuously (D1 To D2)
G01556181Courtesy of FORD MOTOR CO.

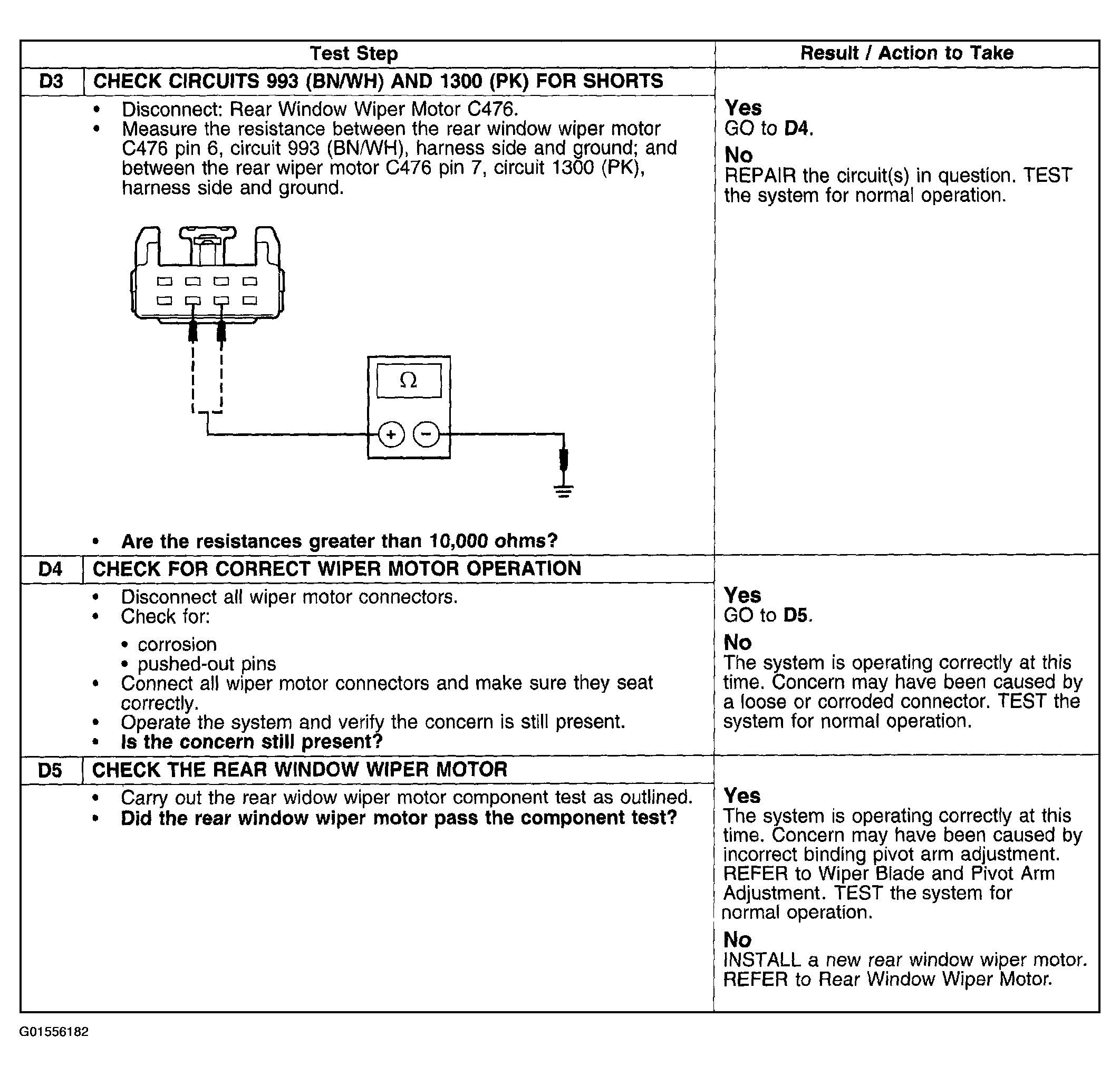

Fig 2: Pinpoint Test D - Rear Wiper Stays On Continuously (D3 To D5)
G01556182Courtesy of FORD MOTOR CO.
