Pinpoint Test C - Windshield Wipers Stay On Continuously

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

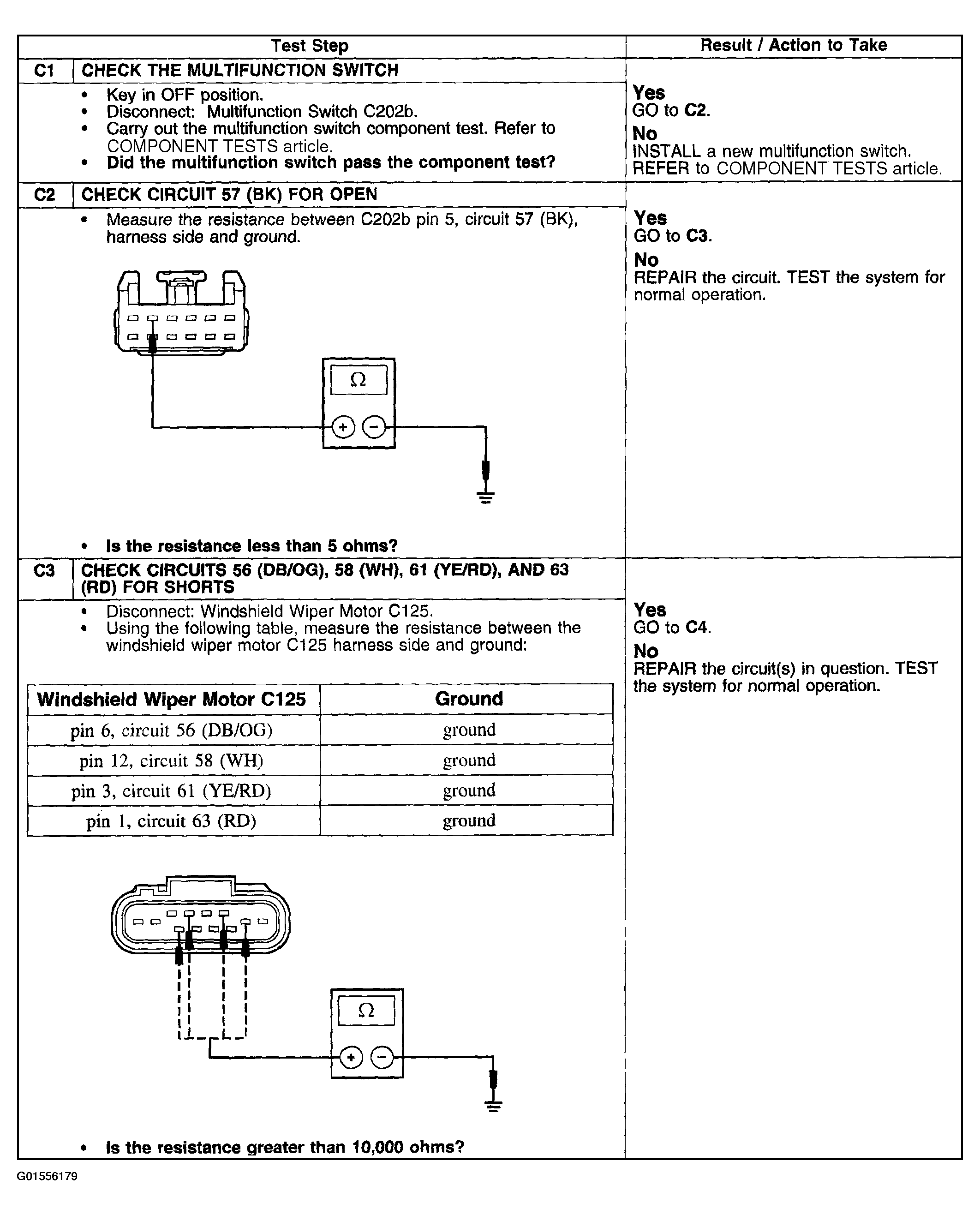

Fig 1: Pinpoint Test C - Windshield Wipers Stay On Continuously (C1 To C3)
G01556179Courtesy of FORD MOTOR CO.

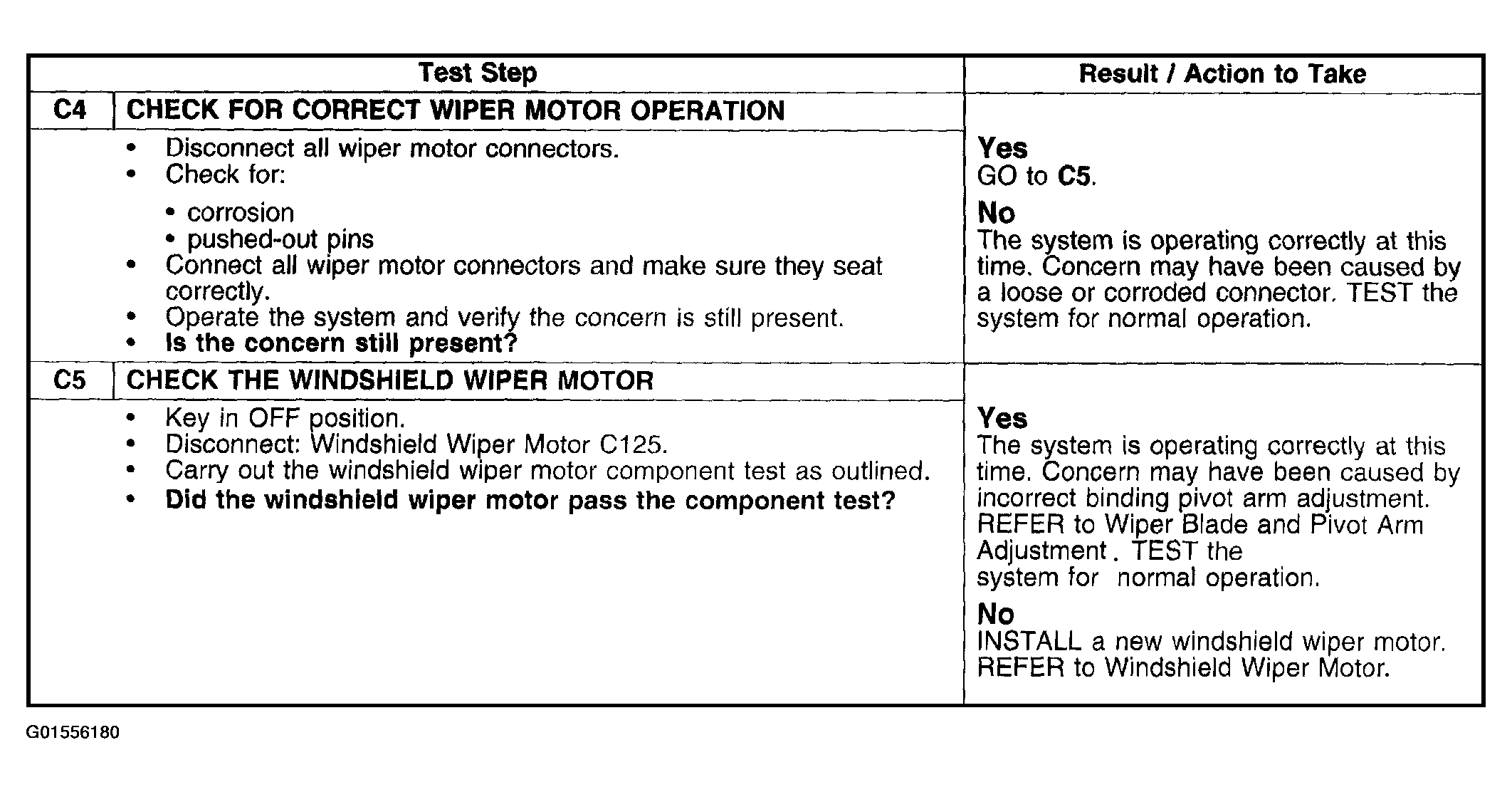

Fig 2: Pinpoint Test C - Windshield Wipers Stay On Continuously (C4 To C5)
G01556180Courtesy of FORD MOTOR CO.
