Pinpoint Test B - Rear Wiper Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

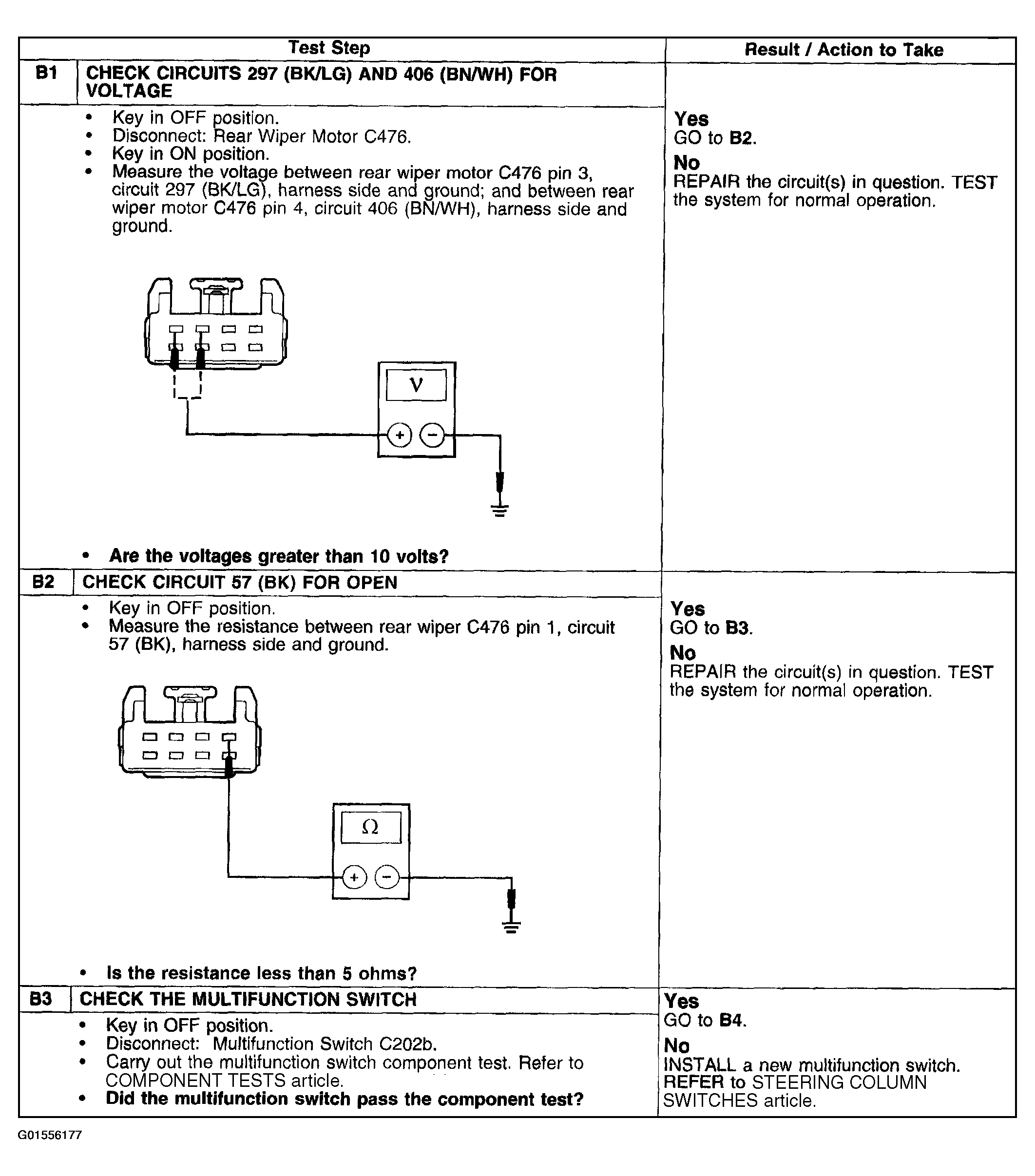

Fig 1: Pinpoint Test B - Rear Wiper Is Inoperative (B1 To B3)
G01556177Courtesy of FORD MOTOR CO.

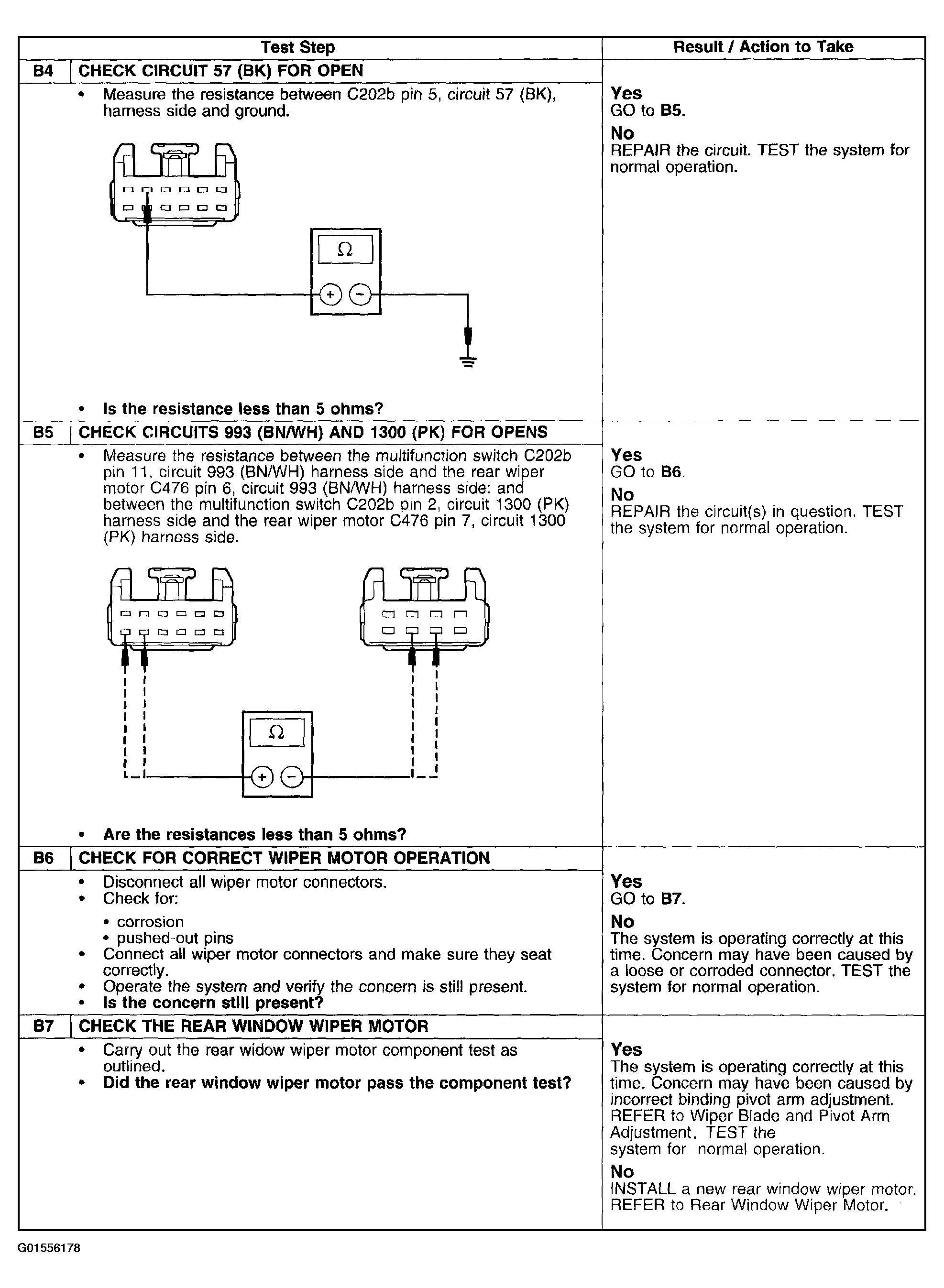

Fig 2: Pinpoint Test B - Rear Wiper Is Inoperative (B4 To B7)
G01556178Courtesy of FORD MOTOR CO.
