Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the rear door push button rod. Refer to PUSH BUTTON ROD - Rear, Crew Cab, Excursion .
  3. Remove the rear door push button rod linkage. Refer to PUSH BUTTON ROD - Linkage, Horizontal, Rear Door, Crew Cab, Excursion .
  4. Remove the push button rod bellcrank.
    CAUTION: When drilling out the push button rod bellcrank rivet, do not oversize the hole in the door sheet metal.
    1. Remove the rivet mandrel (center).
    2. Drill out the rivet.
    3. Remove the push button bellcrank.

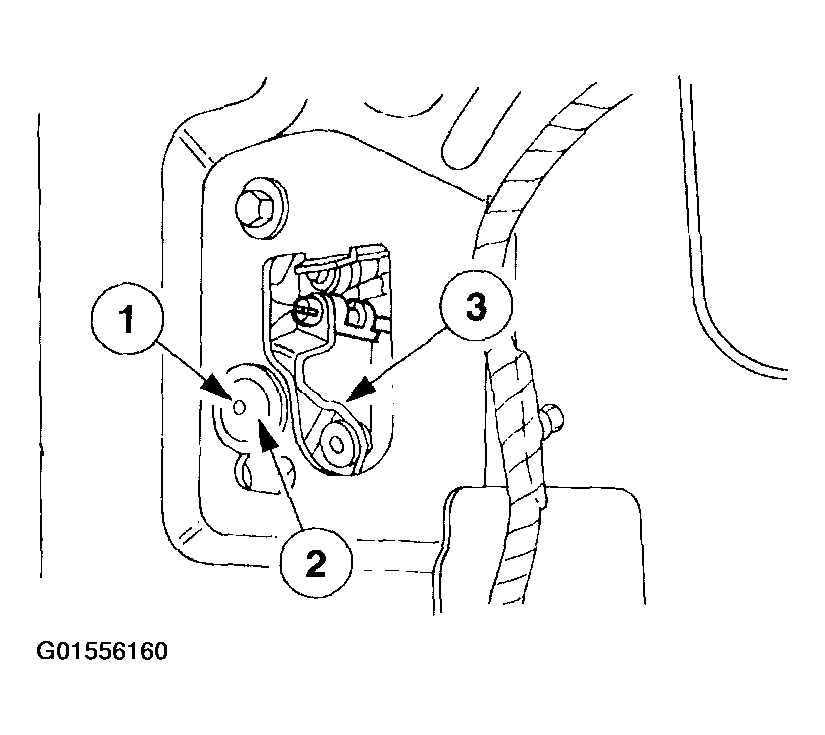

      Fig 1: Removing Push Button Bellcrank
      G01556160Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    NOTE: Refer to SPECIFICATIONS  for the correct new rivet for the bellcrank.
