Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the liftgate trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .

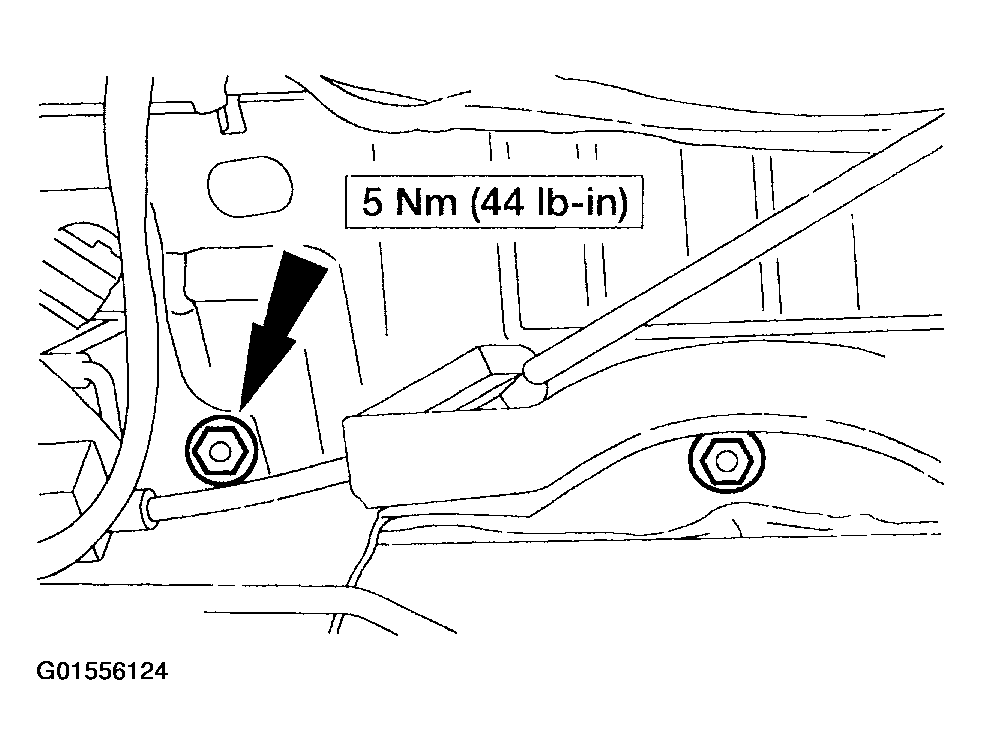

Remove the six nuts.

Fig 1: Remove six nuts
Courtesy of FORD MOTOR CO.

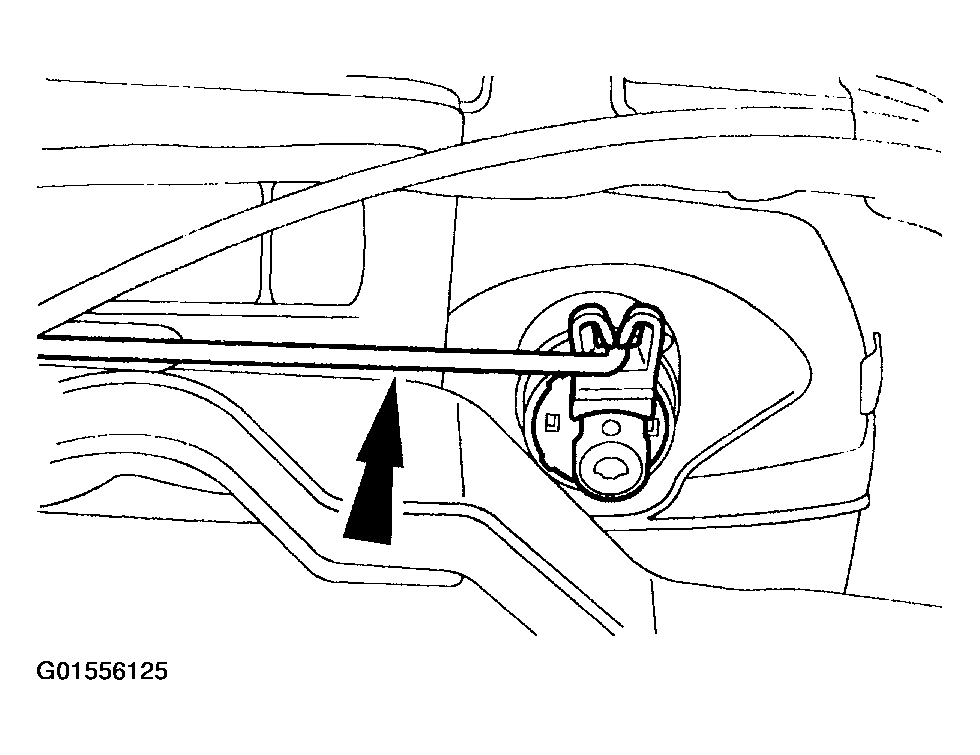

Release the lock cylinder rod.

Fig 2: Releasing lock cylinder rod
Courtesy of FORD MOTOR CO.
Release the liftgate release handle actuating rod.
1. Open the locking clip.
2. Release the rod.

  Fig 3: Releasing Rod
  Courtesy of FORD MOTOR CO.
Remove the exterior liftgate release handle and finish panel.
Remove the liftgate lock cylinder.
1. Remove the locking clip.
2. Remove the lock cylinder.

  Fig 4: Removing Liftgate Lock Cylinder
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
NOTE: Transfer parts as necessary.
