Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel.
  2. Release the lock cylinder rod.

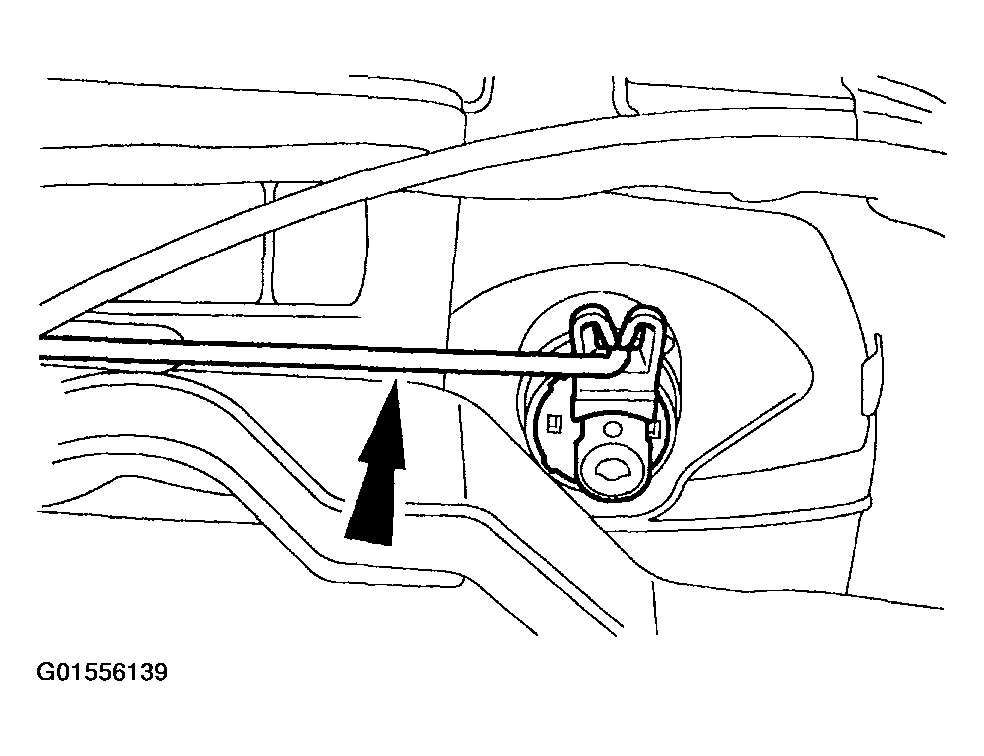

    Fig 1: Releasing Lock Cylinder Rod
    G01556139Courtesy of FORD MOTOR CO.
  3. Remove the lock cylinder.
    1. Remove the clip.
    2. Remove the lock cylinder.
      Fig 2: Removing Lock Cylinder
      G01556140Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
