Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Mark the position of the hood latch.
Remove the hood latch bolts.

Fig 1: Removing Hood Latch Bolts
Courtesy of FORD MOTOR CO.
Disconnect the hood latch release cable from the hood latch.
- Disconnect the cable conduit.
- Disconnect the cable.

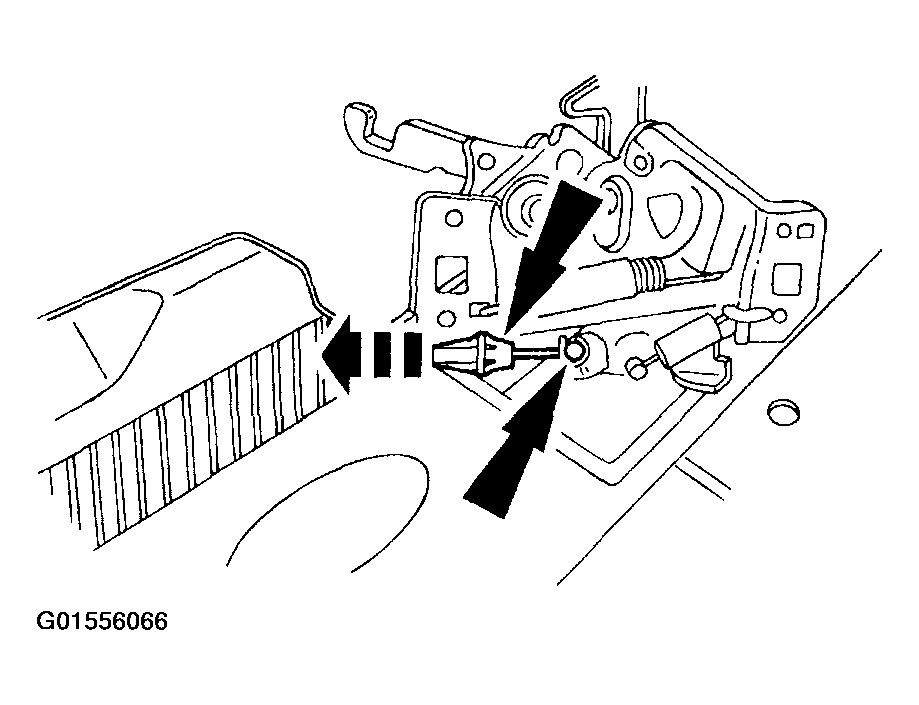

  Fig 2: Disconnecting Hood Latch Release Cable From Hood Latch
  Courtesy of FORD MOTOR CO.
Remove the hood latch.
To install, reverse the removal procedure.
