Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
NOTE: The window must be in the raised position.
Remove the exterior front door handle. Refer to Exterior Front Door Handle .
Disconnect the push button rod from the front door latch. Refer to PUSH BUTTON ROD - Front Door .

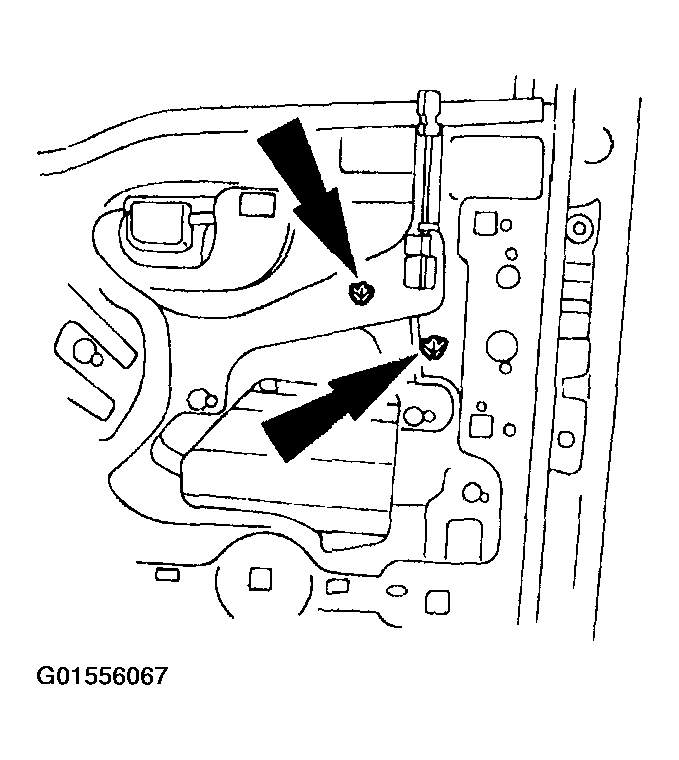

Remove the clips.

Fig 1: Removing Clips
Courtesy of FORD MOTOR CO.

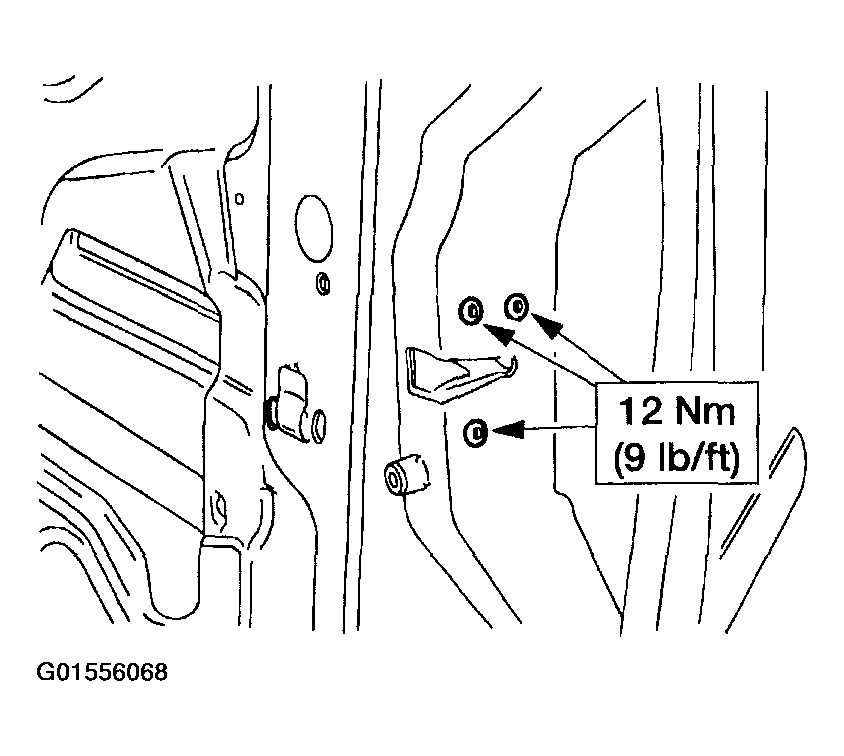

Remove the screws and position the front door latch aside.

Fig 2: Removing Screws
Courtesy of FORD MOTOR CO.

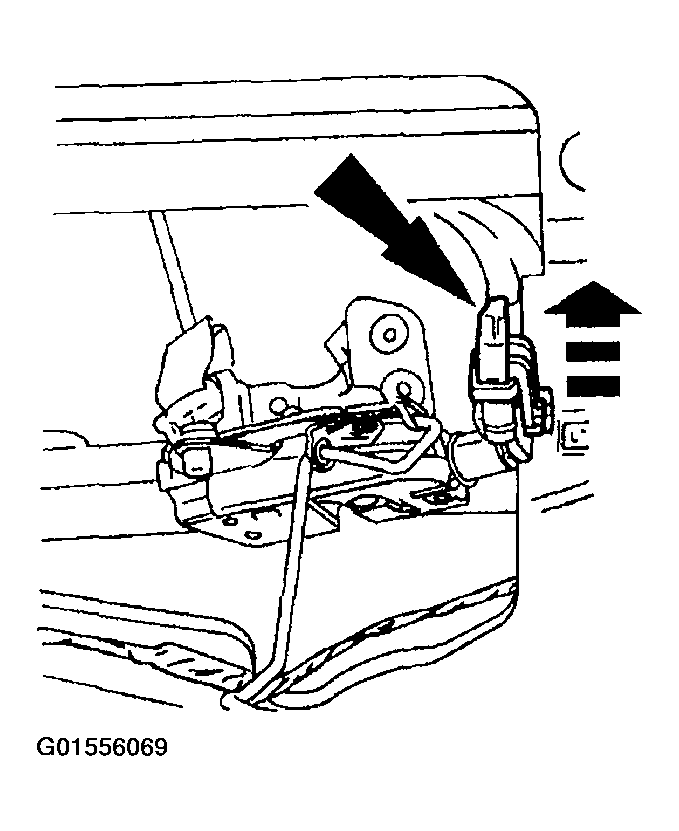

Disconnect the electrical connector(s).

Fig 3: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the front door latch cable cover.

Fig 4: Removing Front Door Latch Cable Cover
Courtesy of FORD MOTOR CO.
Remove the front door latch.
1. Release the cable conduit.
2. Release the cable
3. Remove the front door latch.

  Fig 5: Removing Front Door Latch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
