Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door command center enough to gain access to the electrical connectors.
    NOTE: The left front door with power windows and power mirror is shown. The other doors and vehicles without power windows or power mirrors are similar.

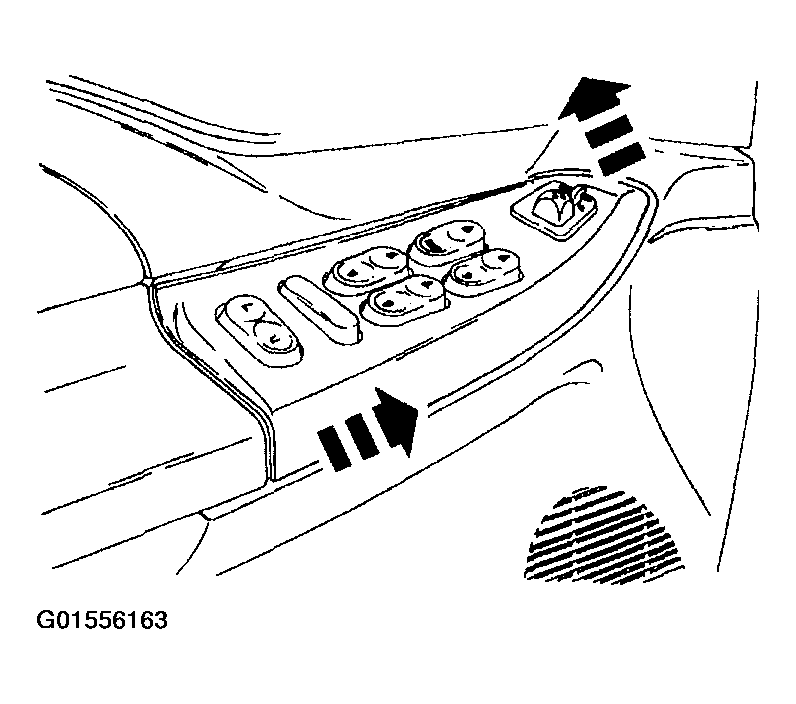

    Fig 1: Removing Door Command Center Enough To Gain Access To Electrical Connectors
    G01556163Courtesy of FORD MOTOR CO.
  2. Disconnect the electrical connectors.

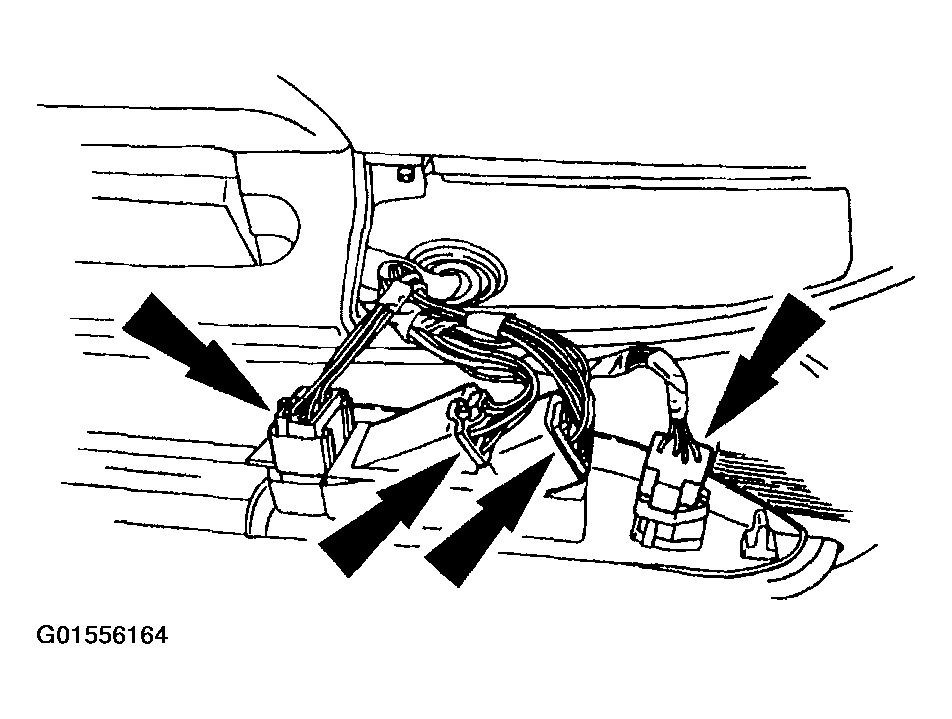

    Fig 2: Disconnecting Electrical Connectors
    G01556164Courtesy of FORD MOTOR CO.
  3. Remove the door command center.
  4. Release the front and back retaining clips on the door lock control switch and remove the switch.

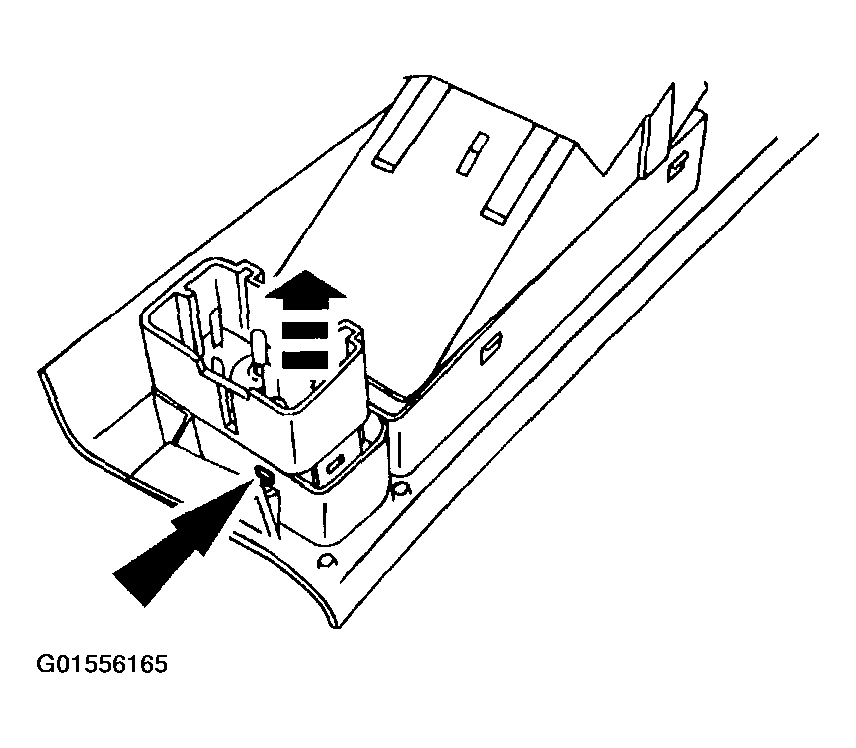

    Fig 3: Removing Door Command Center
    G01556165Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
