Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim panel; Refer to INTERIOR TRIM AND ORNAMENTATION .
Position the watershield aside.
Remove the rear door latch remote control.
CAUTION: When drilling out the latch remote control rivets, do not oversize the holes in the door sheet metal. Make sure not to exceed a 6.25 mm (.25 in) drill bit.
1. Disconnect the necessary actuating rods and cables.
2. Remove the rivets.
3. Remove the rear door latch remote control.

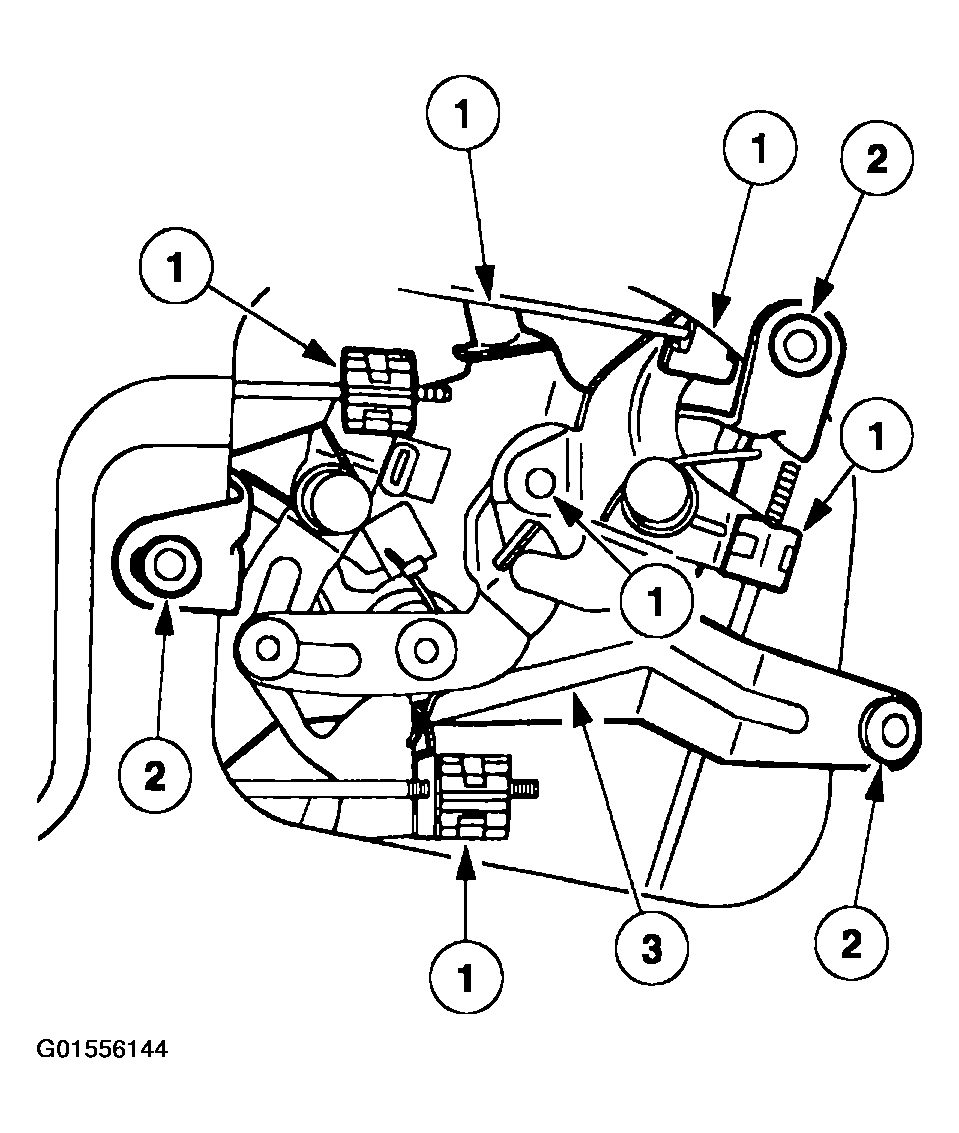

  Fig 1: Removing Rear Door Latch Remote Control
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
