Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the interior front door handle. Refer to INTERIOR DOOR HANDLE - Front .
  3. Remove the retaining clips.

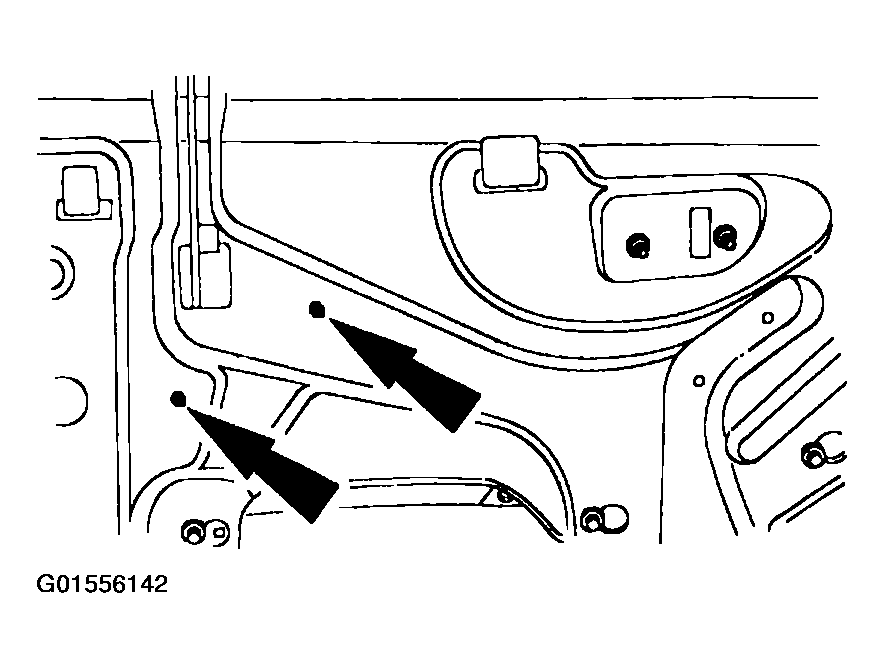

    Fig 1: Removing Retaining Clips
    G01556142Courtesy of FORD MOTOR CO.
  4. Remove the front door latch remote control.
    1. Remove the cable conduit.
    2. Remove the cable.
    3. Remove the remote control.
      Fig 2: Removing Remote Control
      G01556143Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
