Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door latch. Refer to Front Door Latch  or REAR DOOR LATCH - Crew Cab, Excursion  or Liftgate Latch .
  2. Remove the door ajar switch.
    NOTE: The front door latch shown, rear door latch and liftgate latch are similar.
    1. Lift up on the locking tab.
    2. Rotate and remove the door ajar switch.

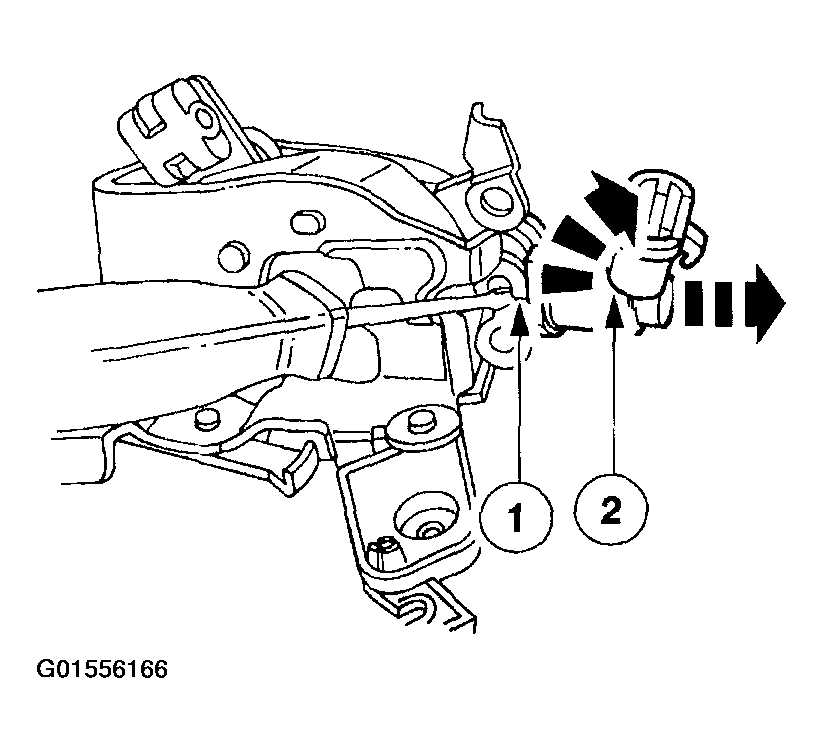

      Fig 1: Lifting Up On Locking Tab
      G01556166Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
