Pinpoint Test J: Keyless Entry Keypad Illumination Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

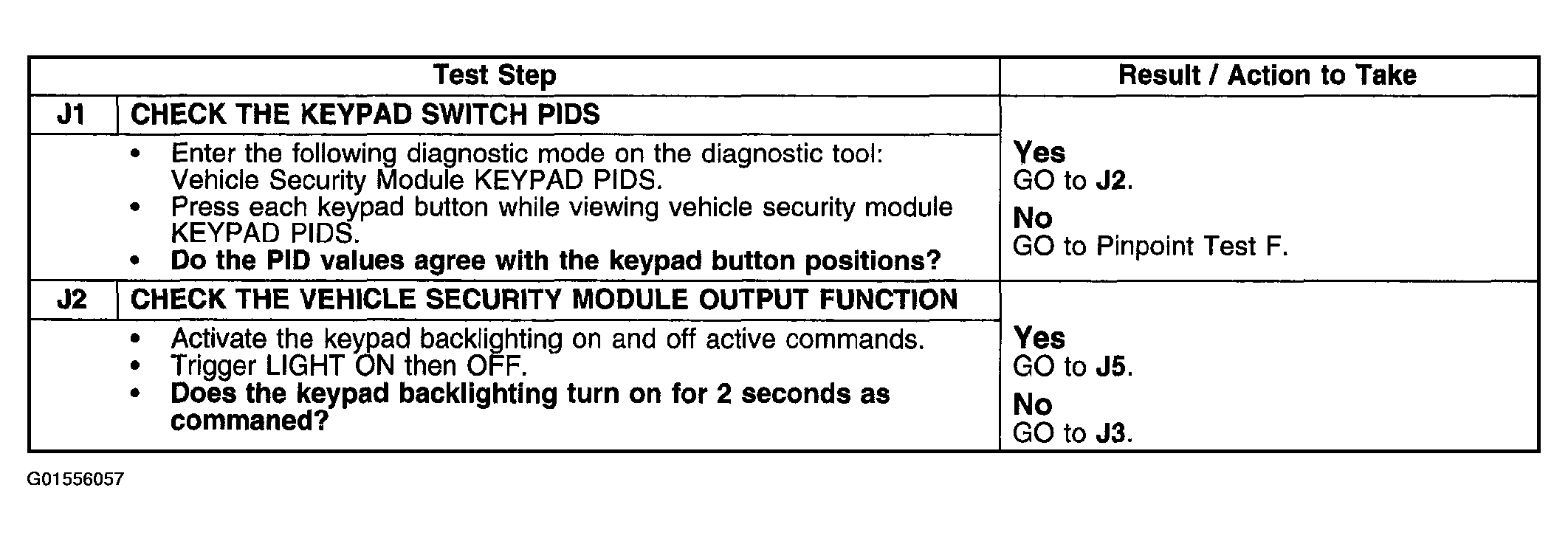

Fig 1: Pinpoint Test J: Keyless Entry Keypad Illumination Is Inoperative (J1 & J2)
G01556057Courtesy of FORD MOTOR CO.

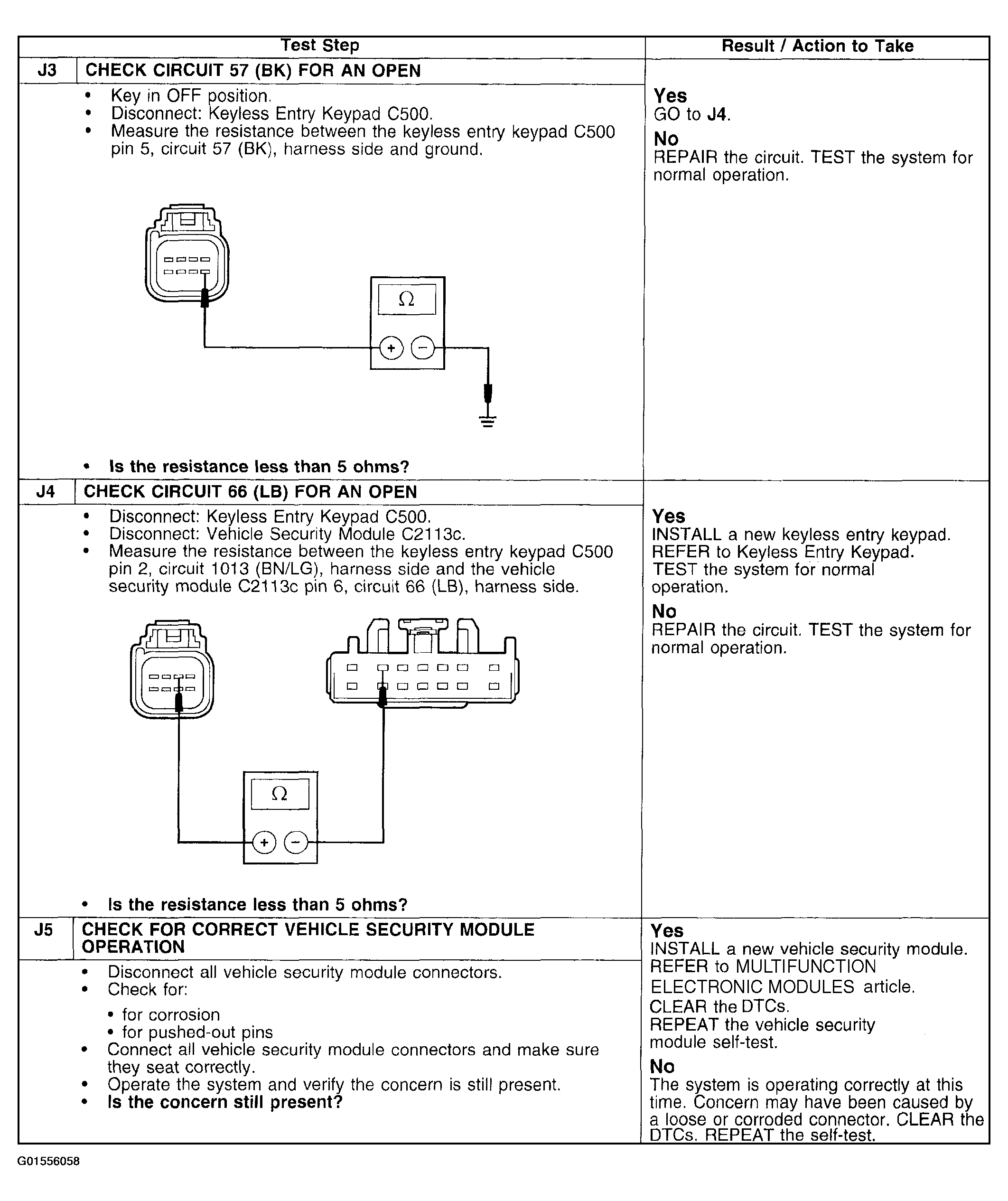

Fig 2: Pinpoint Test J: Keyless Entry Keypad Illumination Is Inoperative (J3-J5)
G01556058Courtesy of FORD MOTOR CO.
