Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

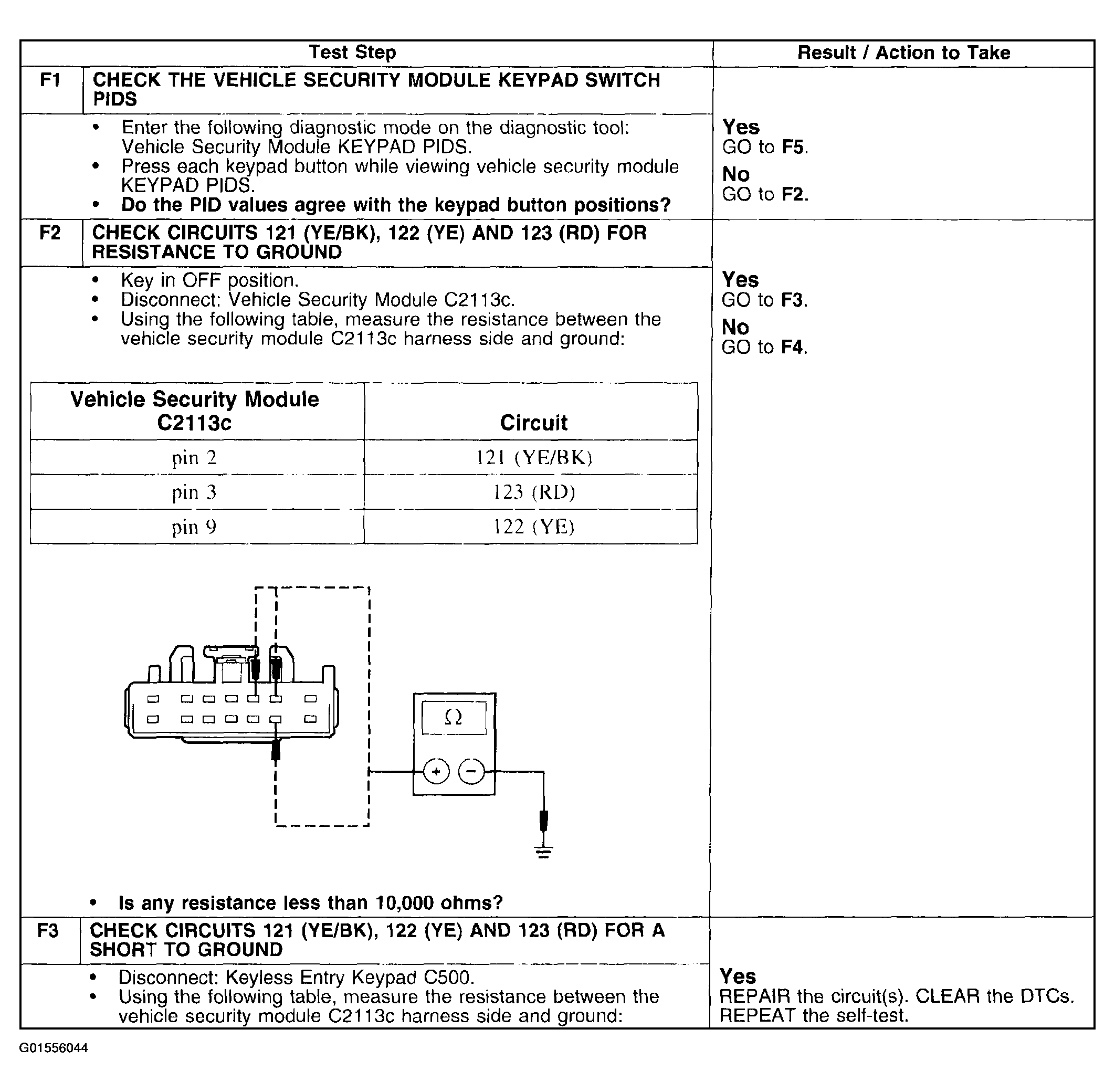

Fig 1: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F1-F3)
G01556044Courtesy of FORD MOTOR CO.

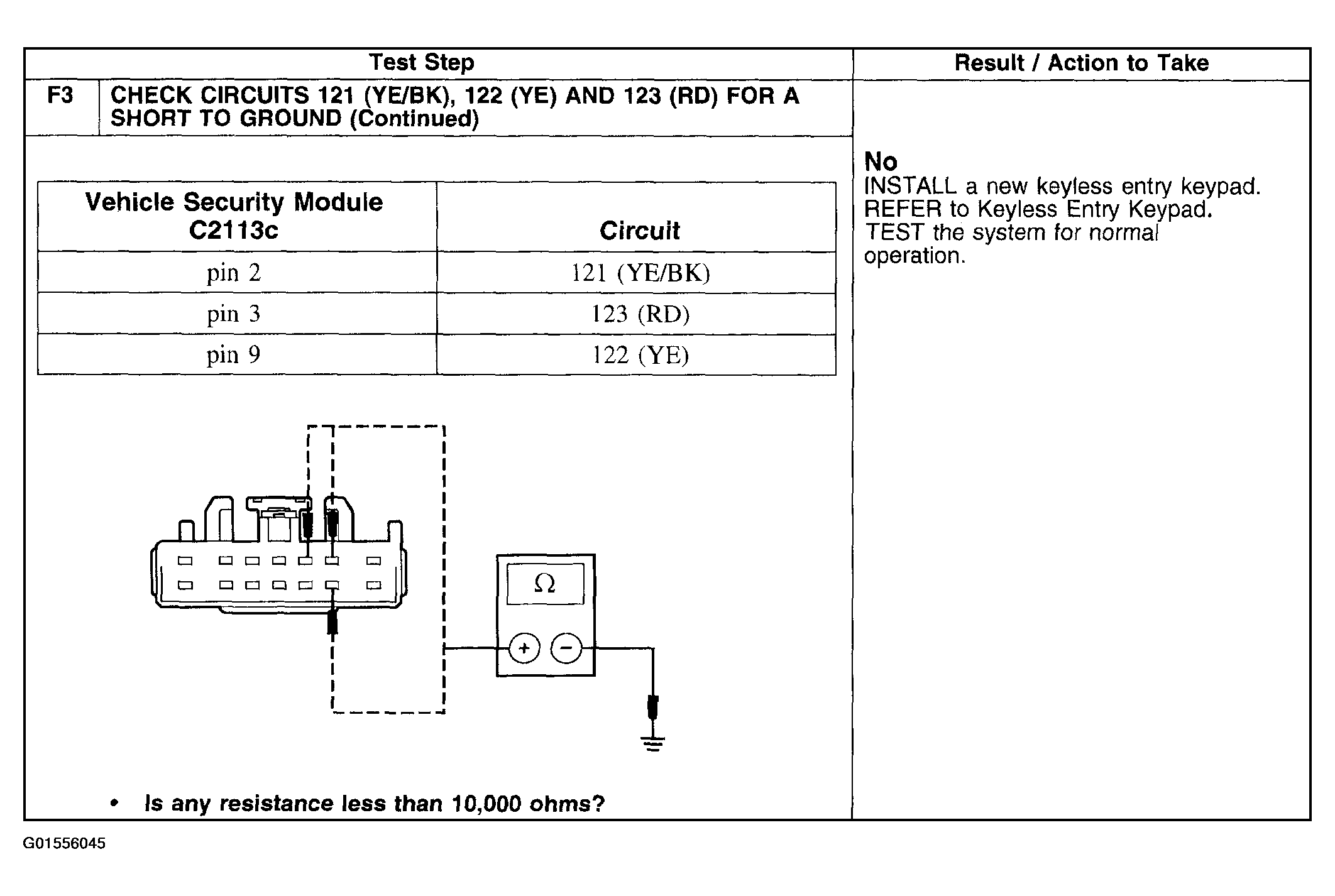

Fig 2: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F3)
G01556045Courtesy of FORD MOTOR CO.

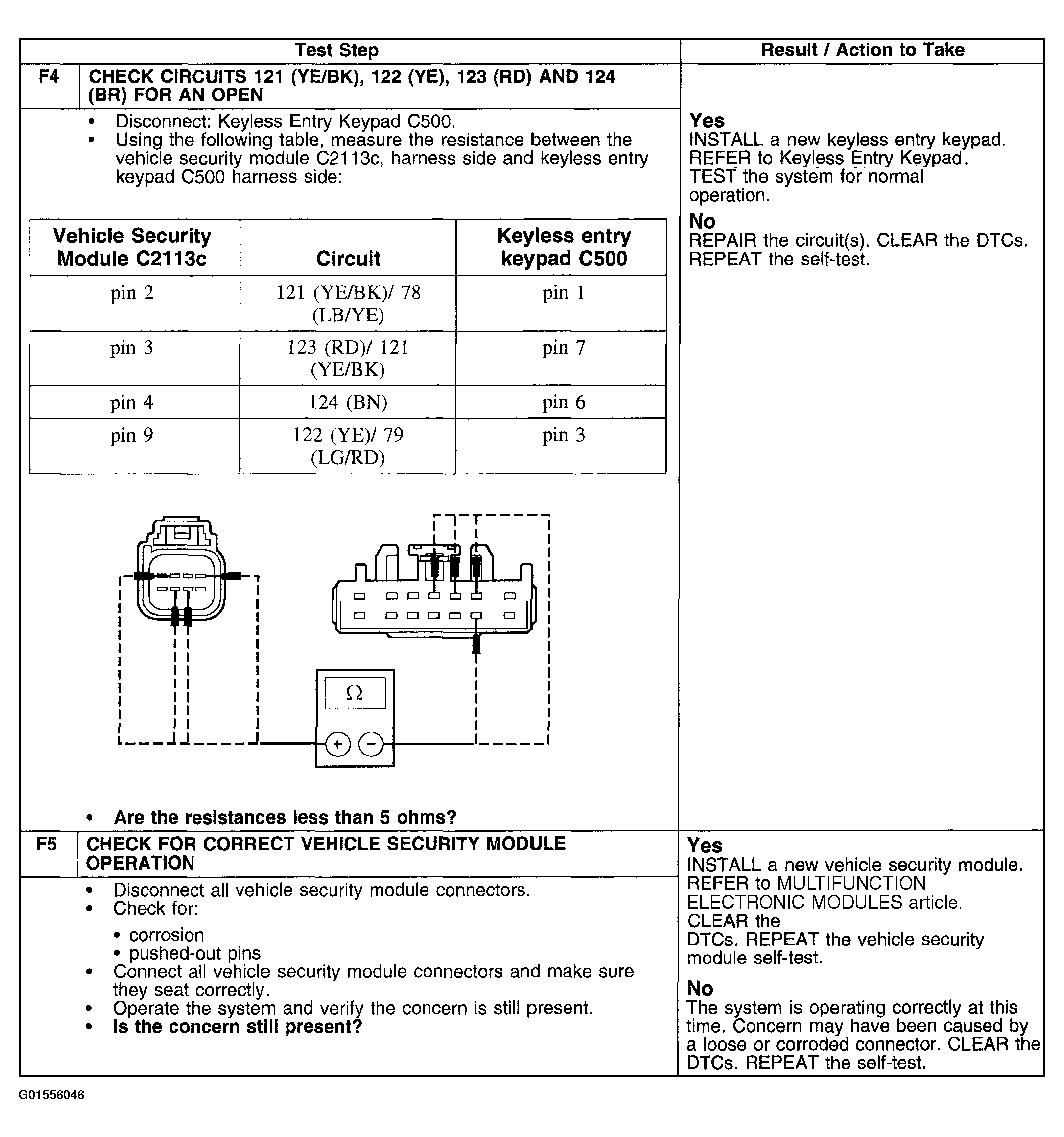

Fig 3: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F4 & F5)
G01556046Courtesy of FORD MOTOR CO.
