Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

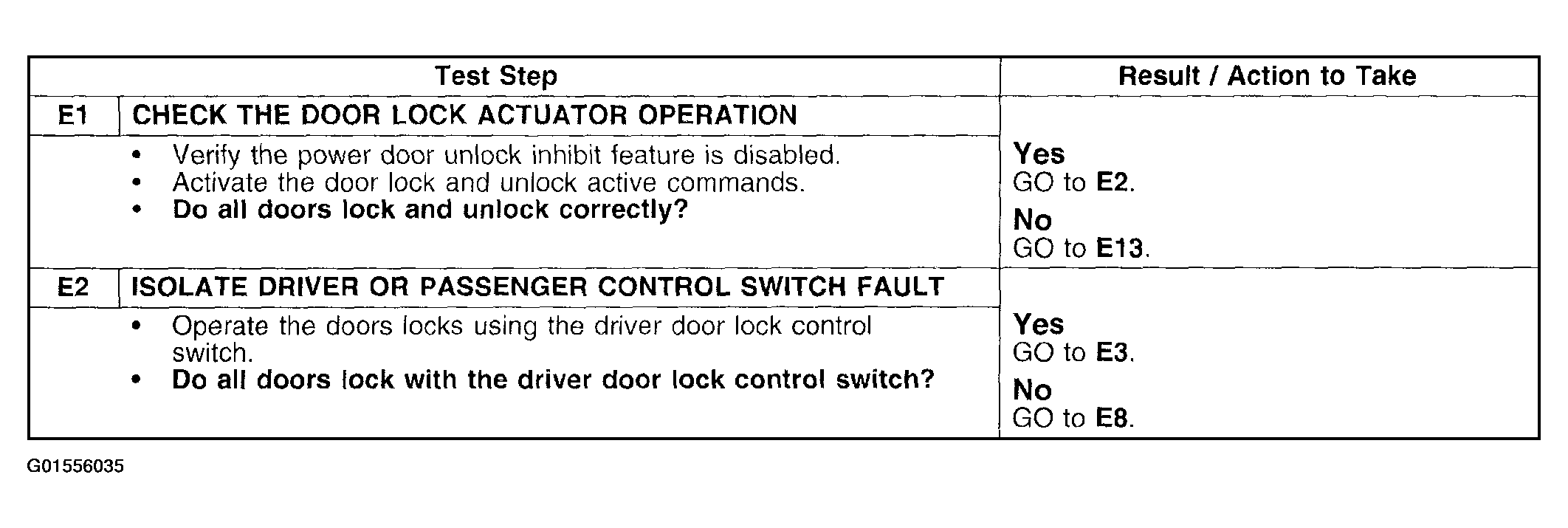

Fig 1: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E1 & E2)

Courtesy of FORD MOTOR CO.

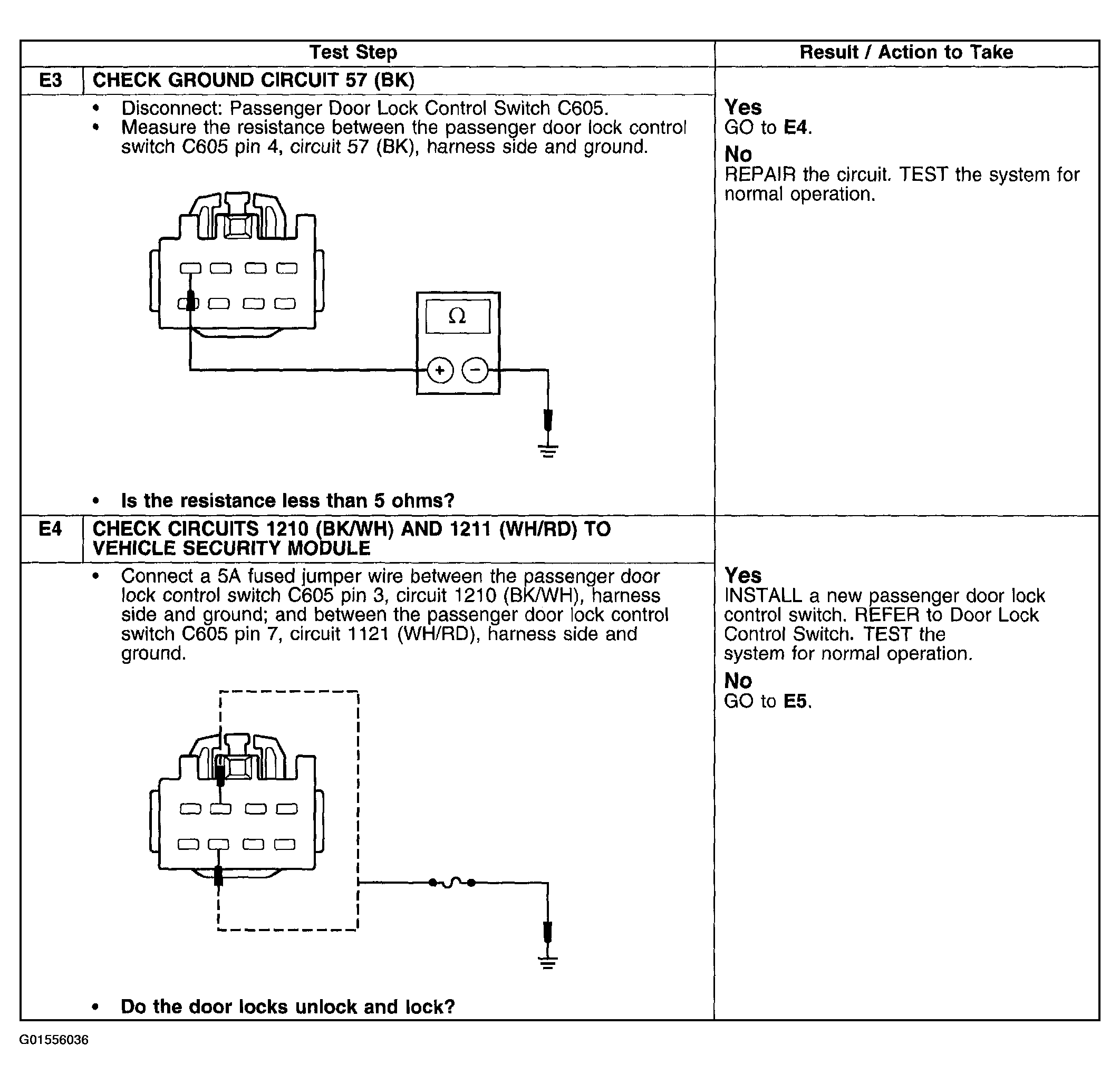

Fig 2: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E3 & E4)

Courtesy of FORD MOTOR CO.

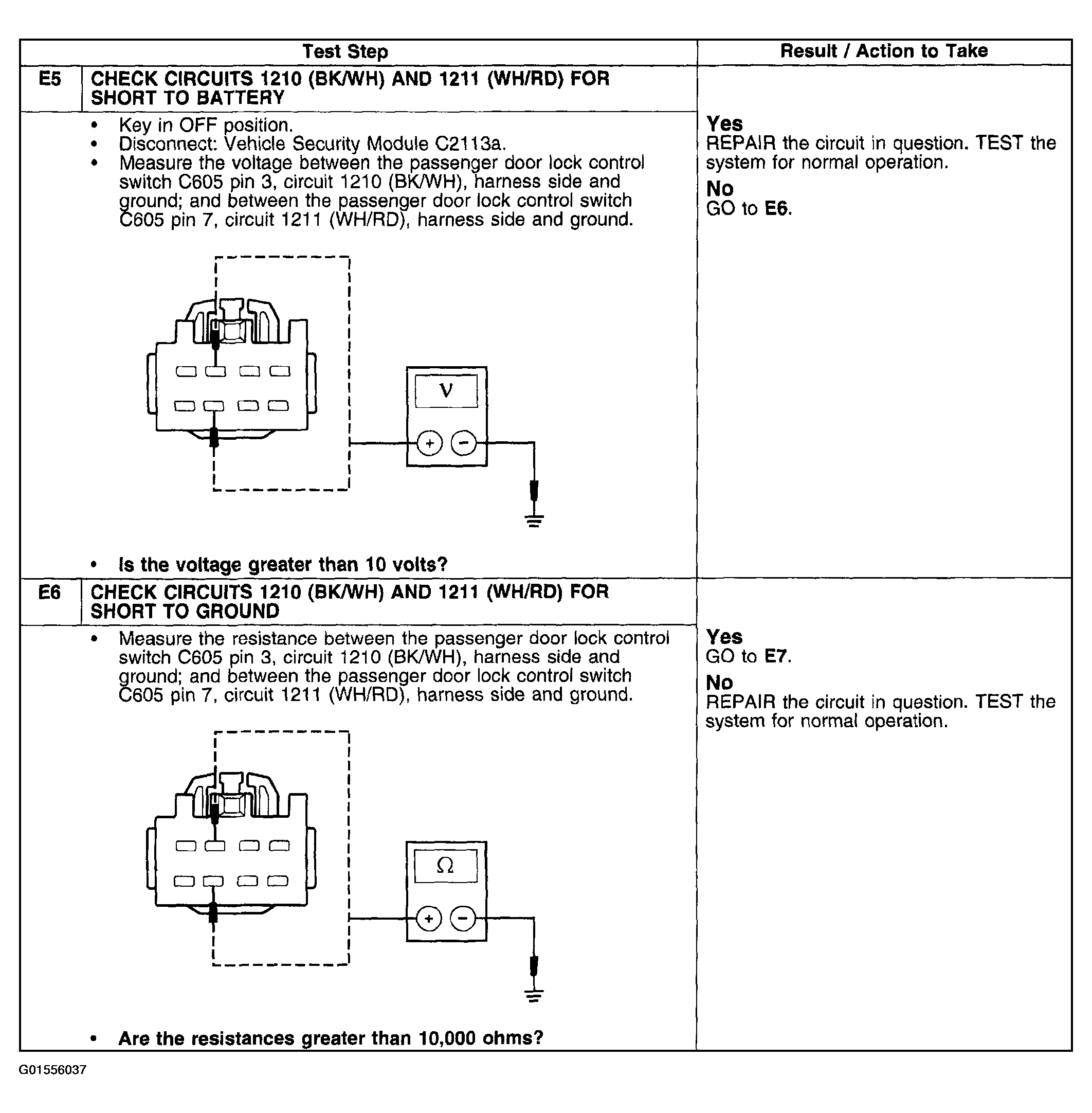

Fig 3: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E5 & E6)

Courtesy of FORD MOTOR CO.

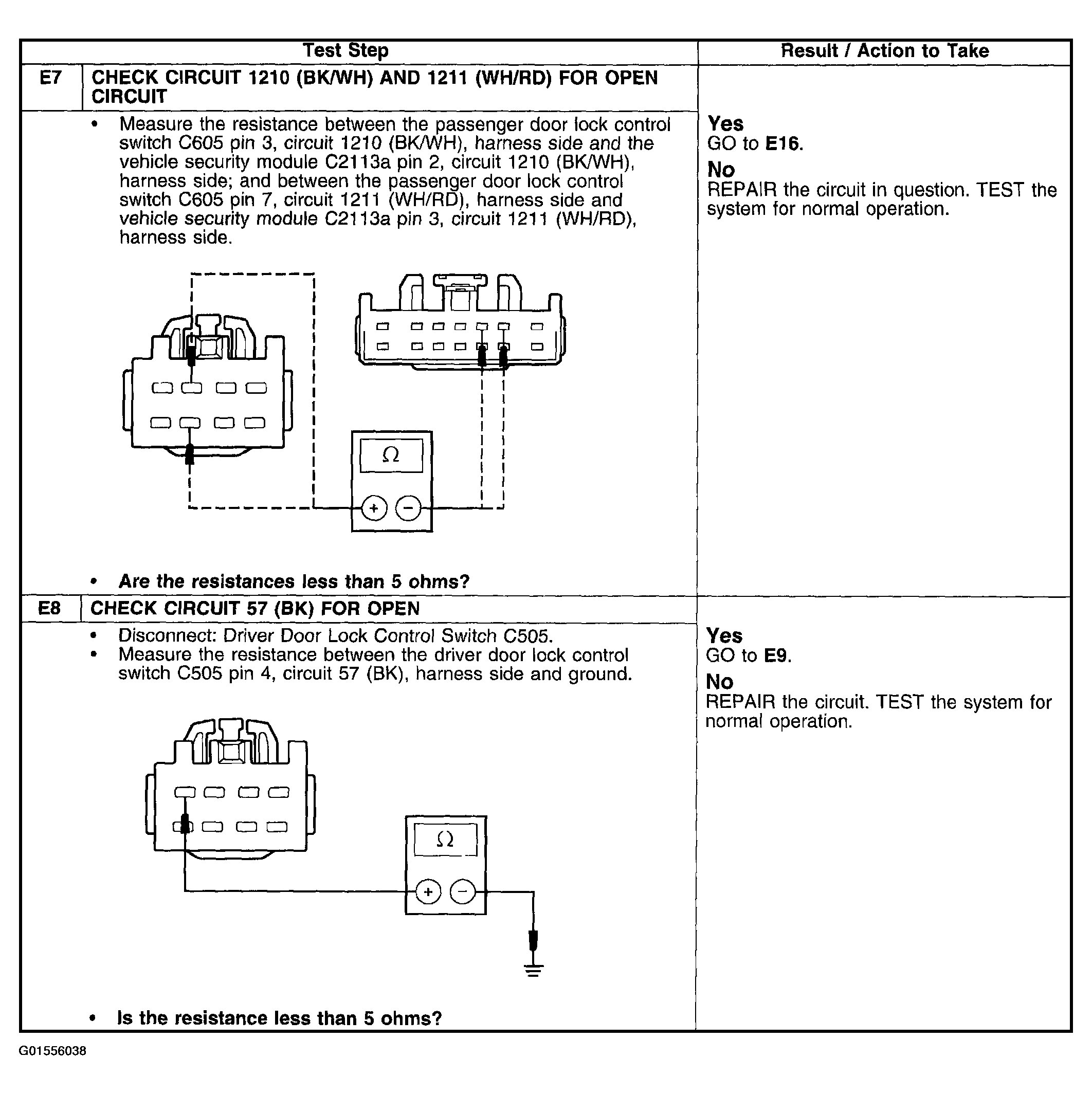

Fig 4: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E7 & E8)

Courtesy of FORD MOTOR CO.

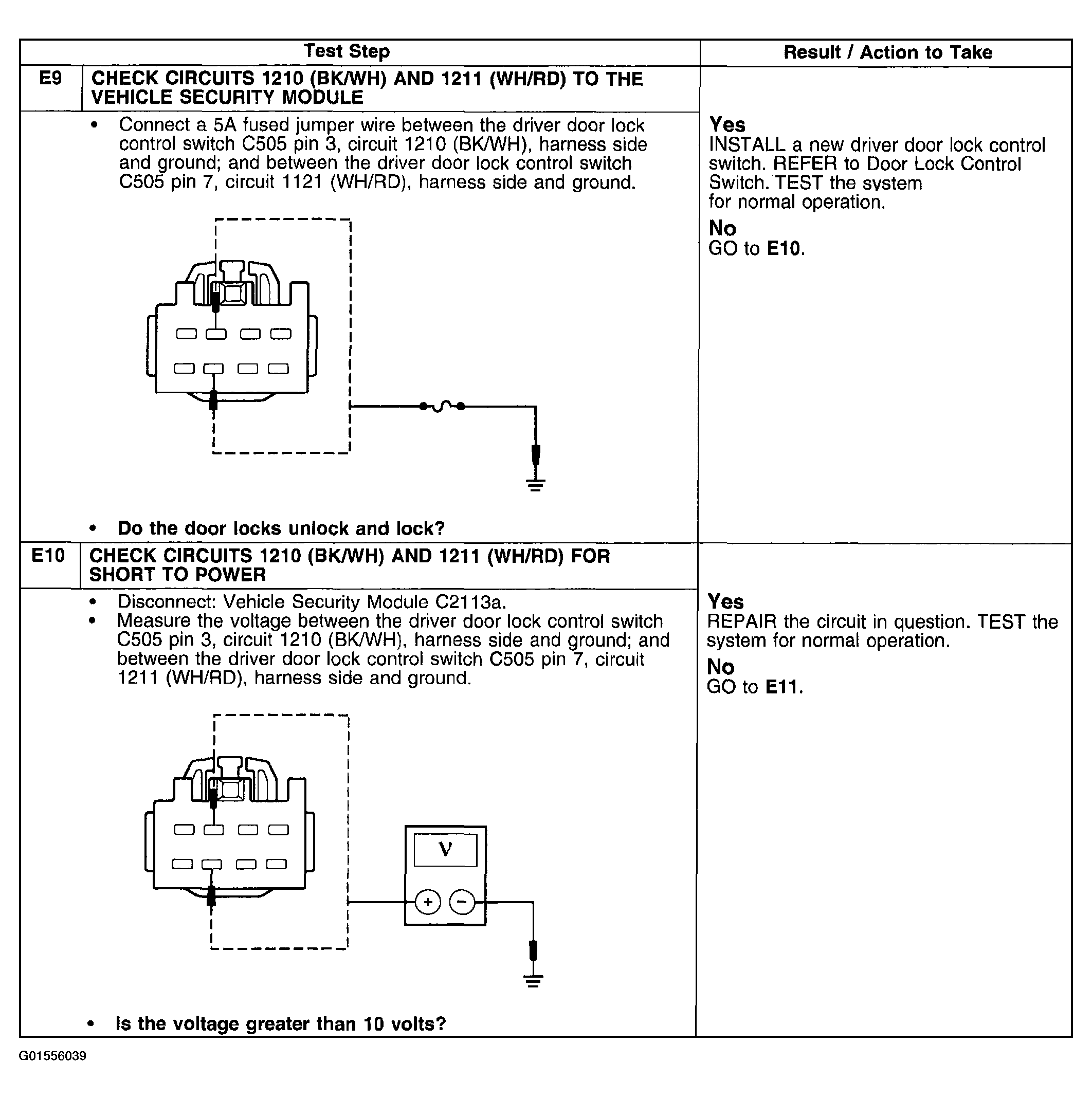

Fig 5: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E9 & E10)

Courtesy of FORD MOTOR CO.

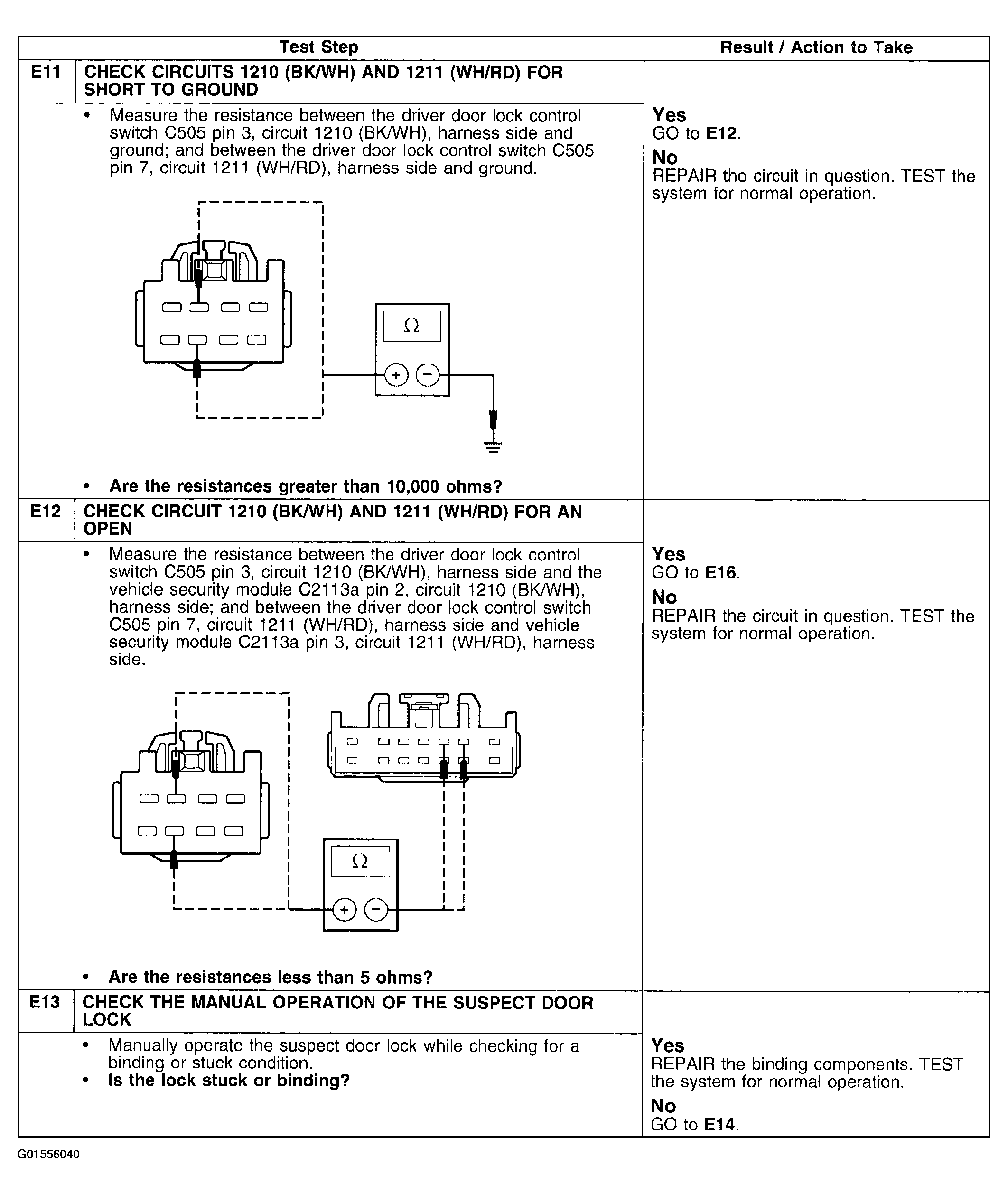

Fig 6: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E11-E13)

Courtesy of FORD MOTOR CO.

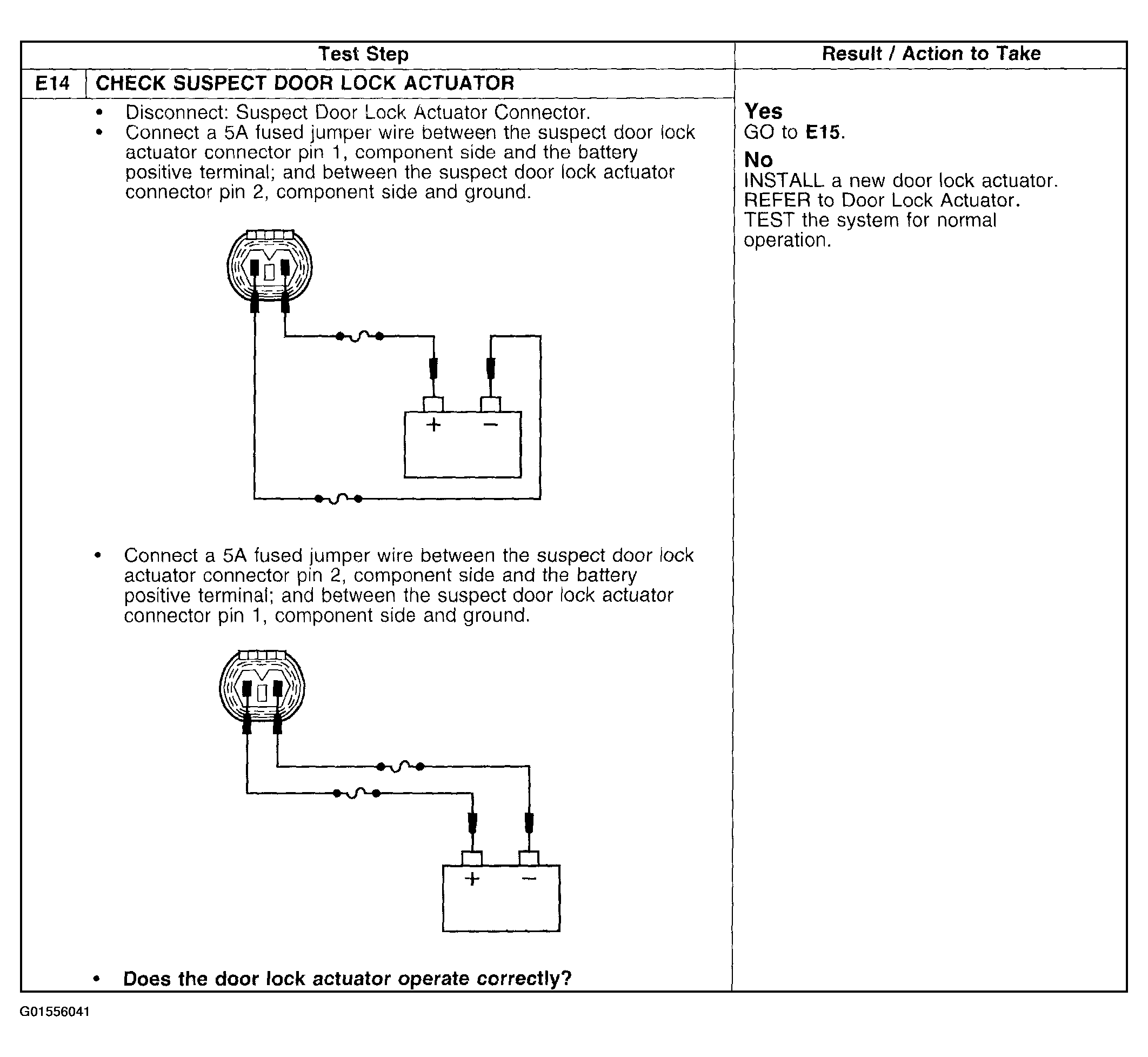

Fig 7: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E14)

Courtesy of FORD MOTOR CO.

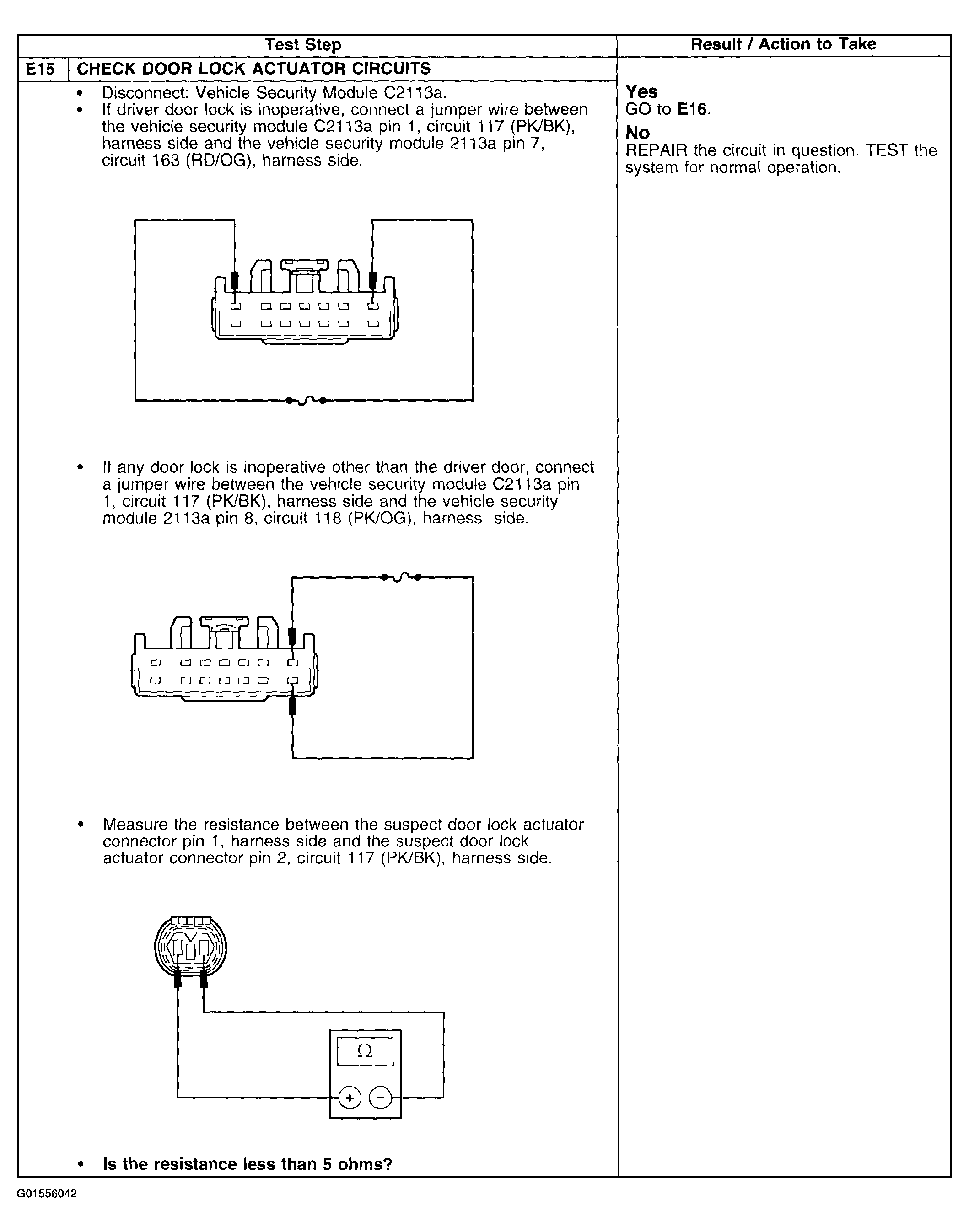

Fig 8: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E15)

Courtesy of FORD MOTOR CO.

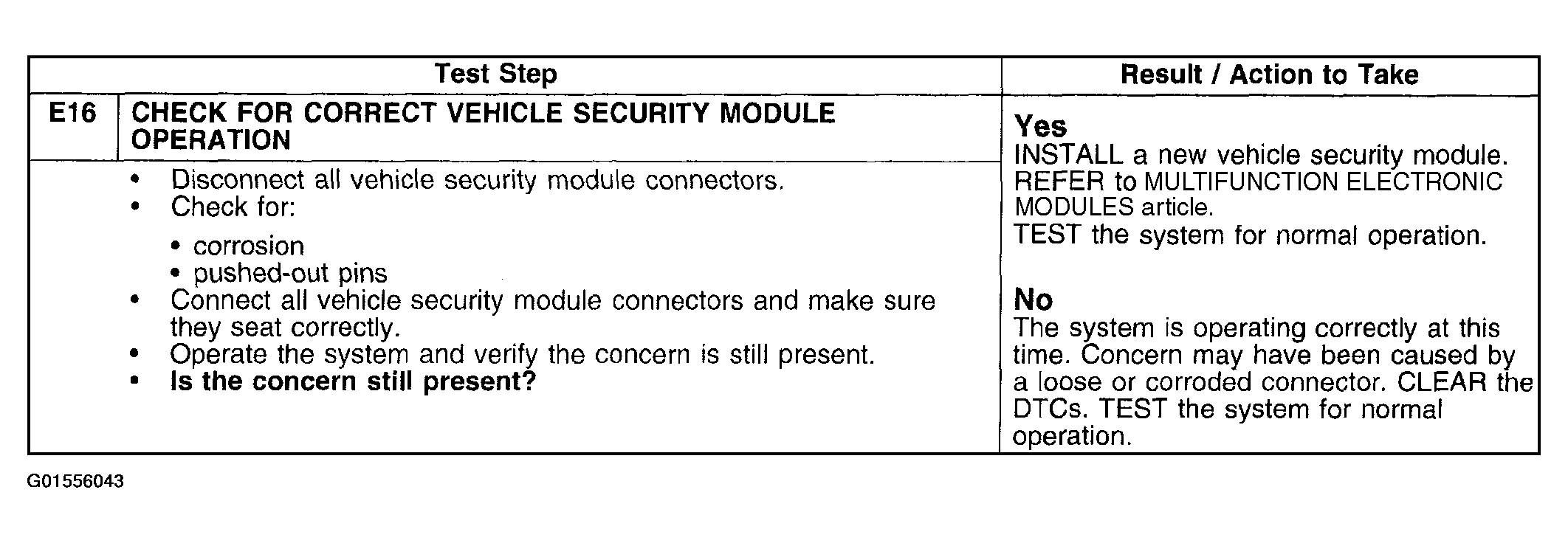

Fig 9: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative - Power Locking (E16)

Courtesy of FORD MOTOR CO.
