Instrument Panel - Cluster Finish Panel: Removal

WARNING: This page is about a different car, the 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, 2003 Ford Cab & Chassis, and 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit. Refer to AUDIO .
  2. Remove the instrument panel cluster finish panel.
    1. Loosen the screws.
    2. Remove the instrument panel cluster finish panel.
    • Disconnect the headlamp switch, panel dimmer switch, (if equipped) 4x4 switch, passenger air bag deactivation switch, power point, (if equipped) the parking aid switch electrical connectors.

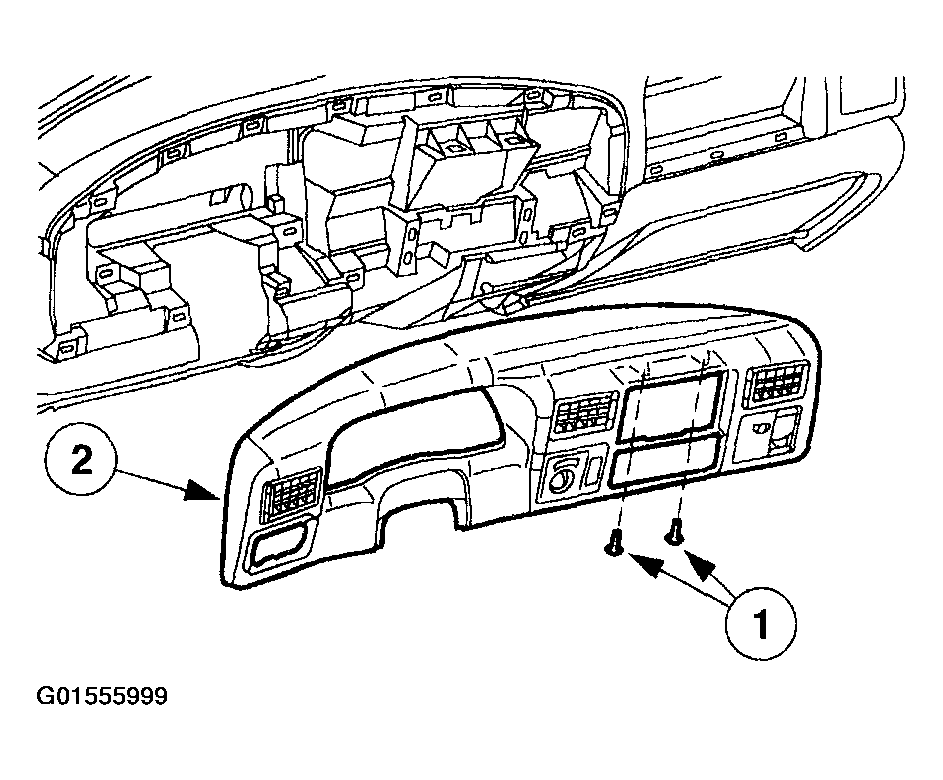

      Fig 1: Removing Instrument Panel Cluster Finish Panel
      G01555999Courtesy of FORD MOTOR CO.
