Removal and Installation

WARNING: This page is about a different car, the 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, 2003 Ford Cab & Chassis, and 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front floor console shown, rear floor console similar.

All vehicles

Open the floor console cover.

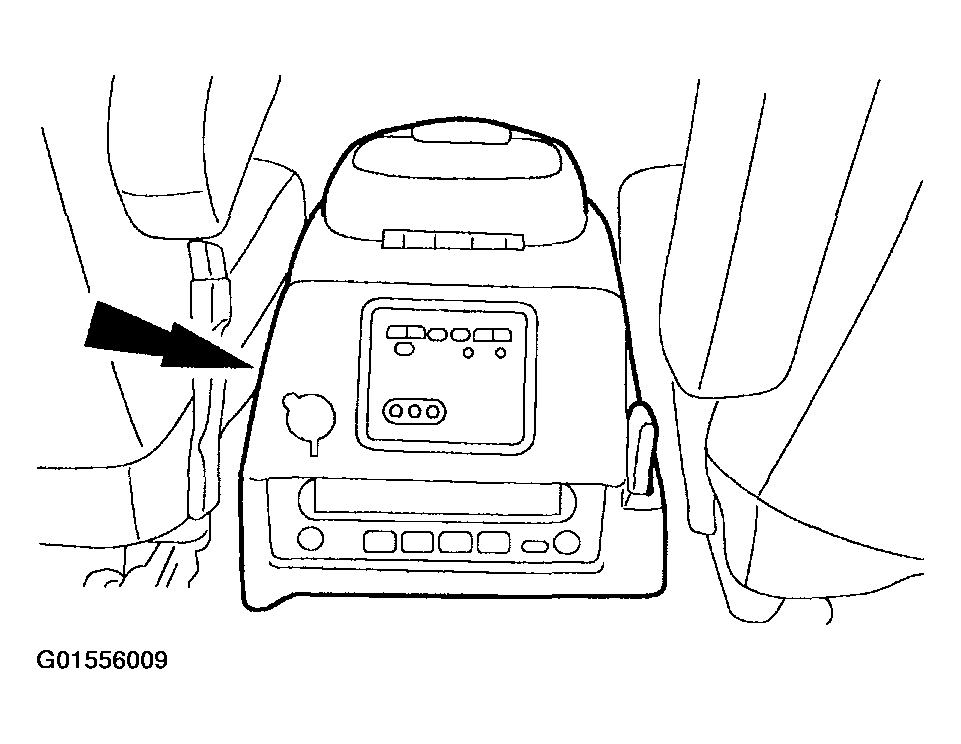

Fig 1: Opening Floor Console Cover
Courtesy of FORD MOTOR CO.
Remove the storage compartment.

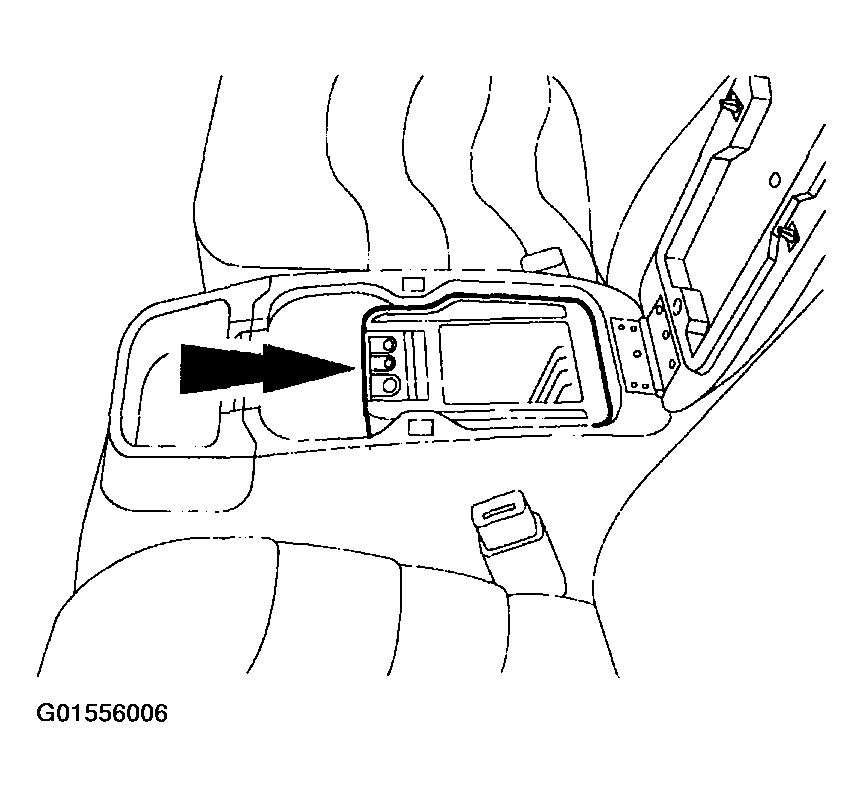

Fig 2: Removing Storage Compartment
Courtesy of FORD MOTOR CO.
Remove the console tray mat.
Vehicles not equipped with the rear video entertainment system
Remove the bolts and the floor console.
- On Excursion, disconnect the electrical connector.

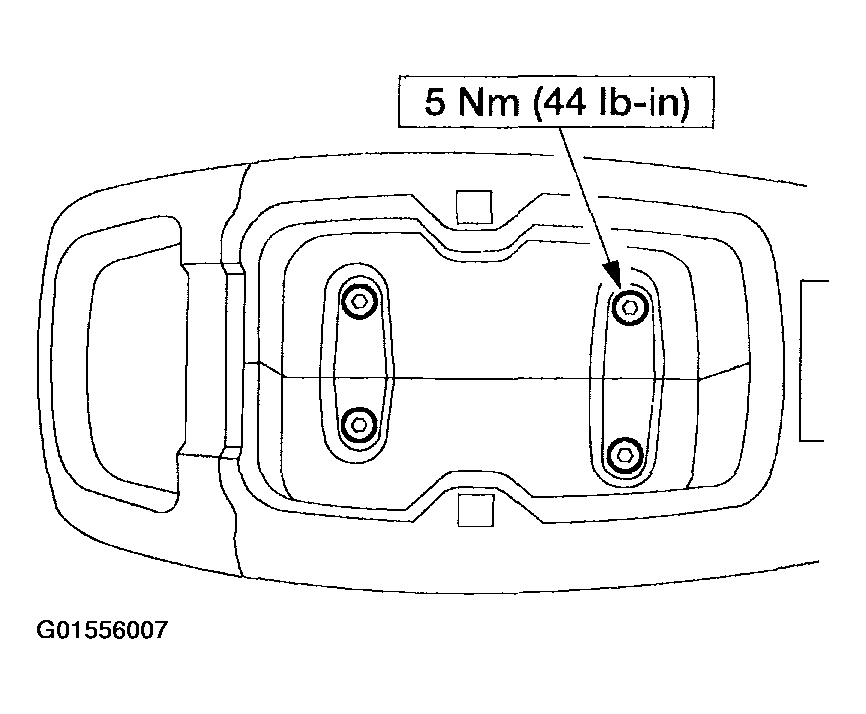

  Fig 3: Removing Bolts And Floor Console
  Courtesy of FORD MOTOR CO.
Vehicles equipped with the rear video entertainment system
Remove the floor console bolts.

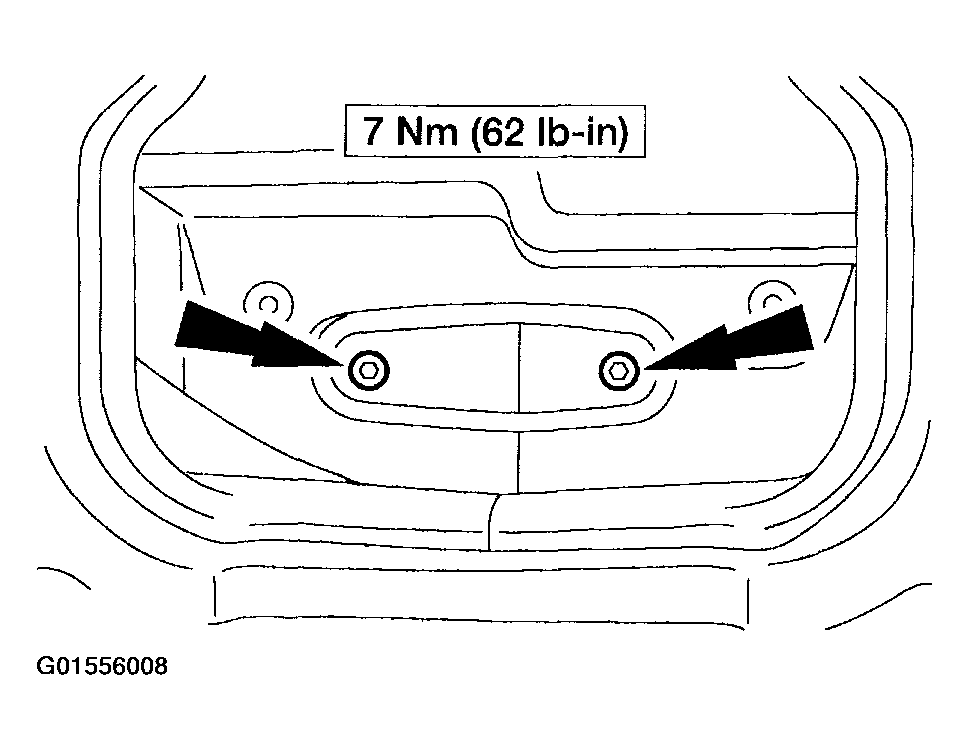

Fig 4: Removing Floor Console Bolts
Courtesy of FORD MOTOR CO.
Remove the floor console.
- Slide the console rearwards to disengage it from the hold down bracket.
- Lift the console to access and disconnect the electrical connectors.

  Fig 5: Removing Floor Console
  Courtesy of FORD MOTOR CO.
All vehicles
To install, reverse the removal procedure.
