Window Glass - Rear: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Regular and Crew Cab vehicles

Remove the rear trim panels. Refer to INTERIOR TRIM AND ORNAMENTATION .

SuperCab vehicles

Remove the child safety seat tether anchors. Refer to SAFETY BELT SYSTEM .
Remove the rear corner trim panels. Refer to INTERIOR TRIM AND ORNAMENTATION .
All vehicles

NOTE: Removal of the back window glass (42006) requires an assistant to hold the back glass window as it is pushed out.

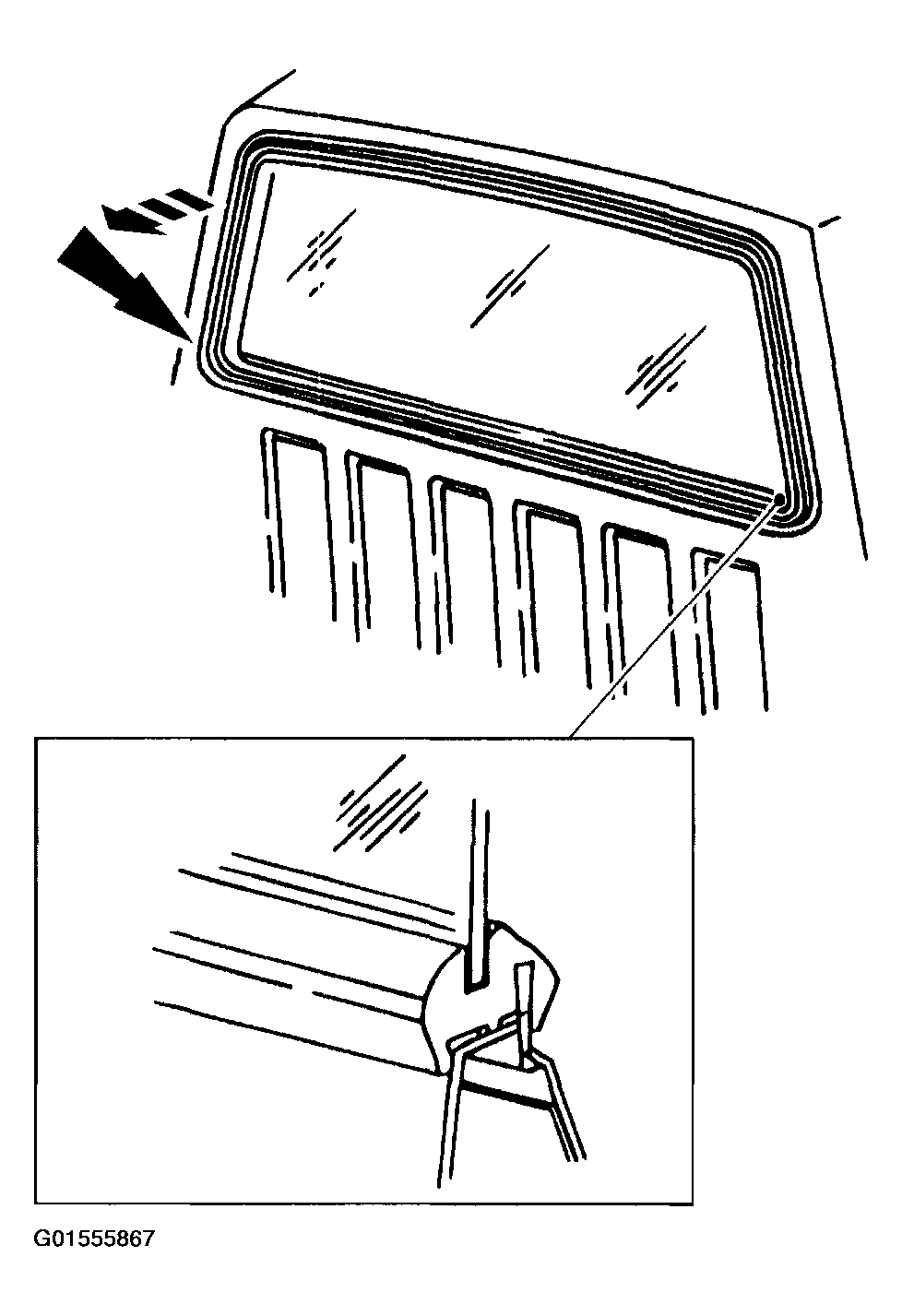

Fig 1: Pulling Down On Back Window Glass Weatherstrip

Courtesy of FORD MOTOR CO.

From inside the vehicle, pull down on the back window glass weatherstrip (42084) and push back the window glass and back window glass weatherstrip from the back window glass opening.
Remove the weatherstrip from the rear window.

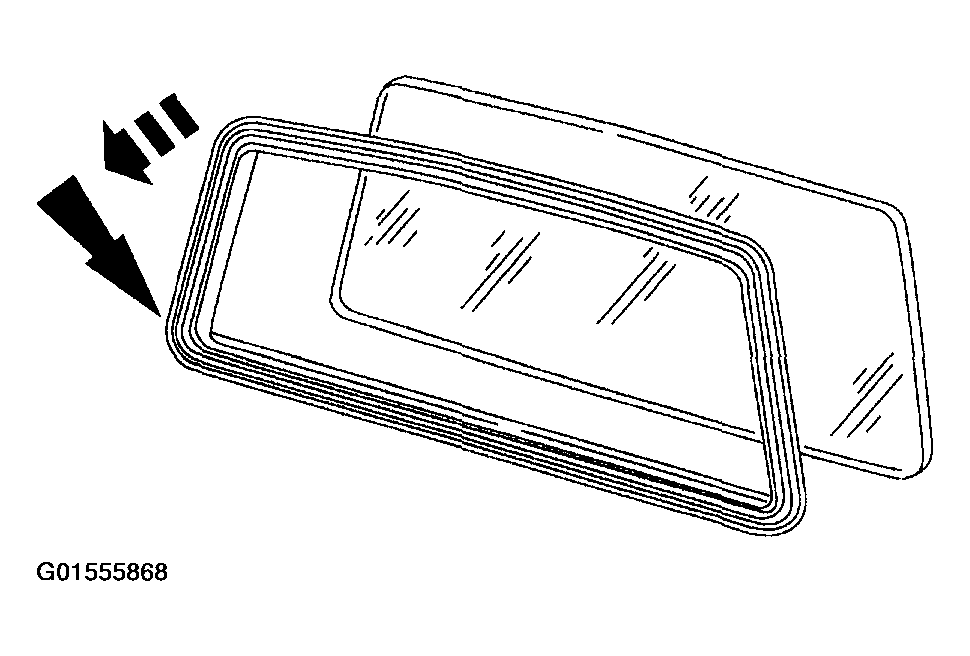

Fig 2: Removing Weatherstrip From Rear Window
Courtesy of FORD MOTOR CO.
Remove all traces of butyl from the window glass opening and the back window weatherstrip.
