Window Glass - Rear: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Installation of the back glass window requires an assistant to push the back glass window as it is being installed.

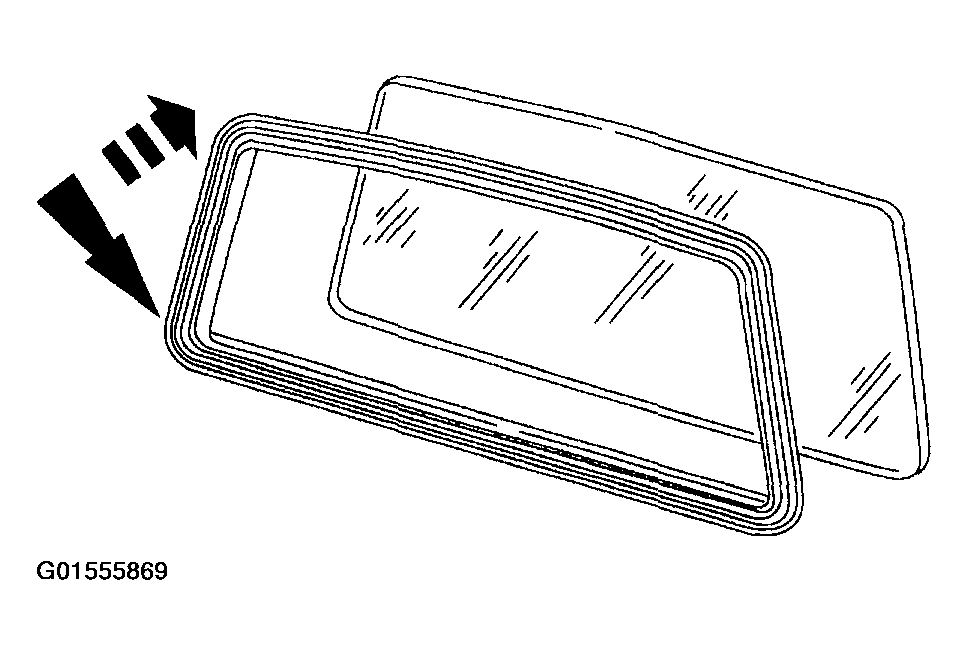

Fig 1: Installing Weatherstrip To Rear Window

Courtesy of FORD MOTOR CO.

Install the weatherstrip to the rear window.
Install the window installation rope to the window weatherstrip.

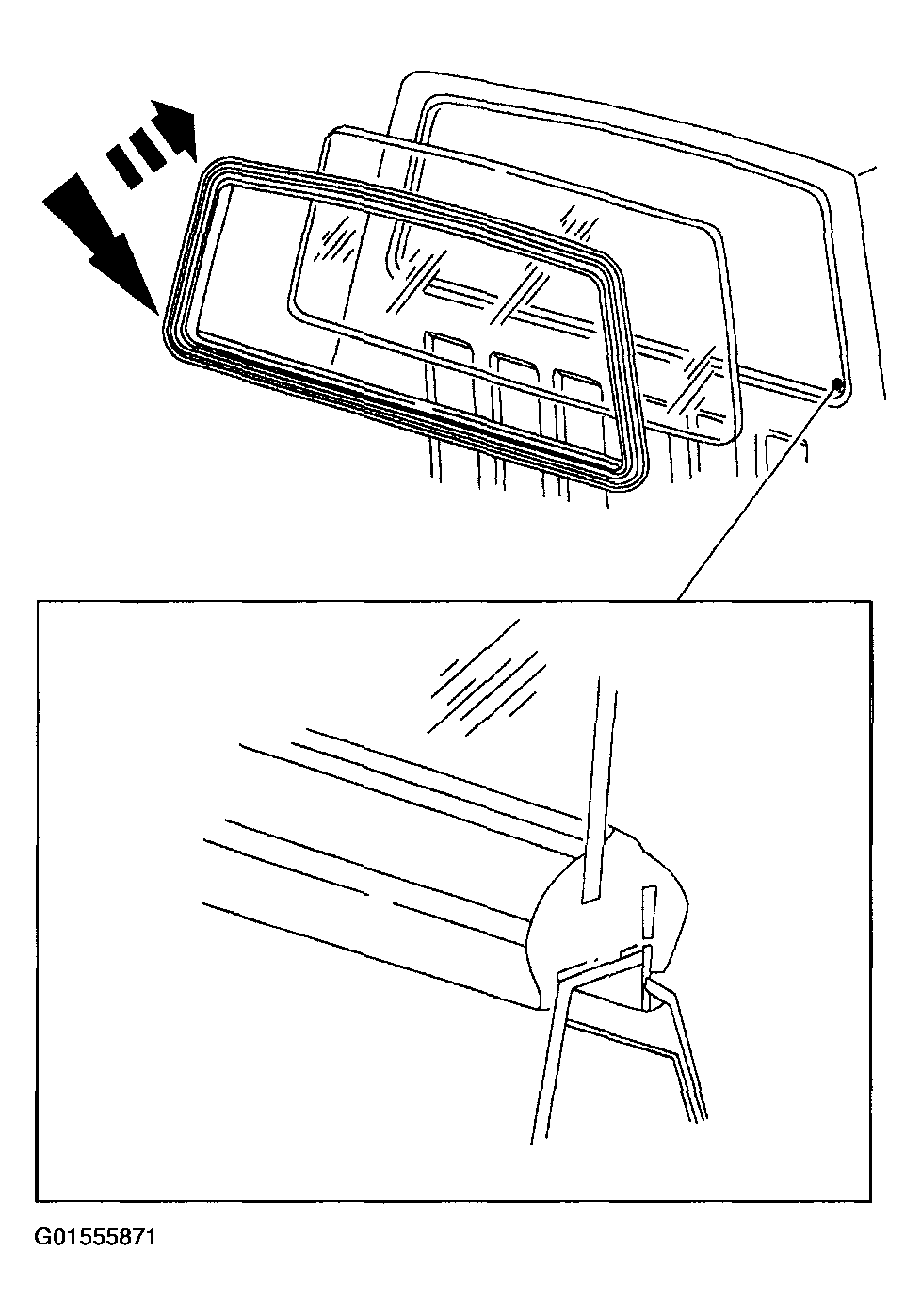

Fig 2: Installing Window Installation Rope To Window Weatherstrip
Courtesy of FORD MOTOR CO.
Lubricate the window weatherstrip with soapy water.
Position the rear window to the rear window opening.
Using the assistance of another technician, install the rear window.
- Pull the installation rope from the window weatherstrip.
- Slightly push inward and downward on the rear window glass (technician two).

  Fig 3: Pulling Installation Rope From Window Weatherstrip
  Courtesy of FORD MOTOR CO.

SuperCab vehicles

Install the rear corner trim panels. Refer to INTERIOR TRIM AND ORNAMENTATION .
Install the child safety seat tether anchors. Refer to SAFETY BELT SYSTEM .

Regular and Crew Cab vehicles

Install the rear trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
