Window Glass - Rear Door SuperCab: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and position the latch aside.

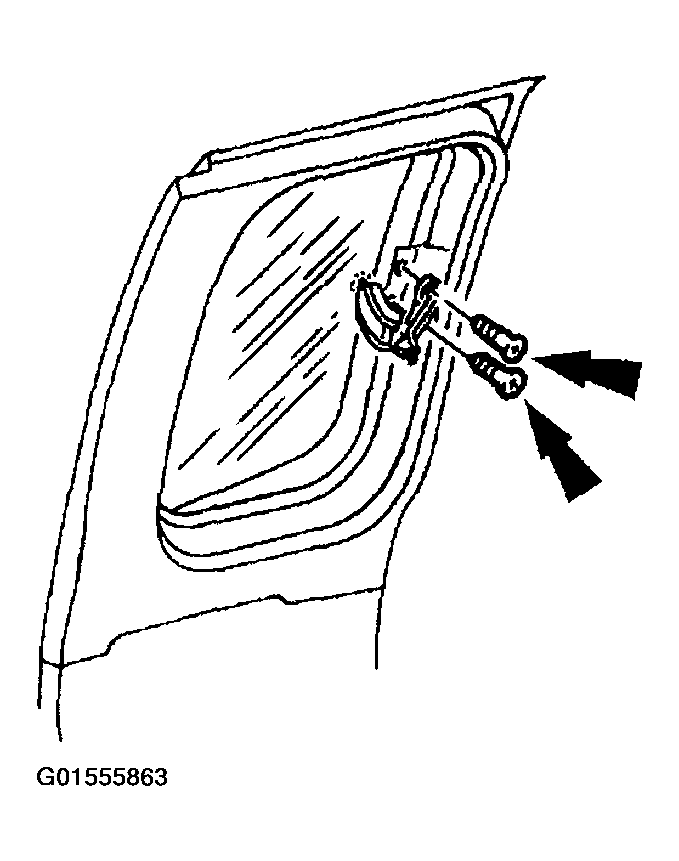

    Fig 1: Removing Screws
    G01555863Courtesy of FORD MOTOR CO.
  2. Remove the rear door window trim panel.

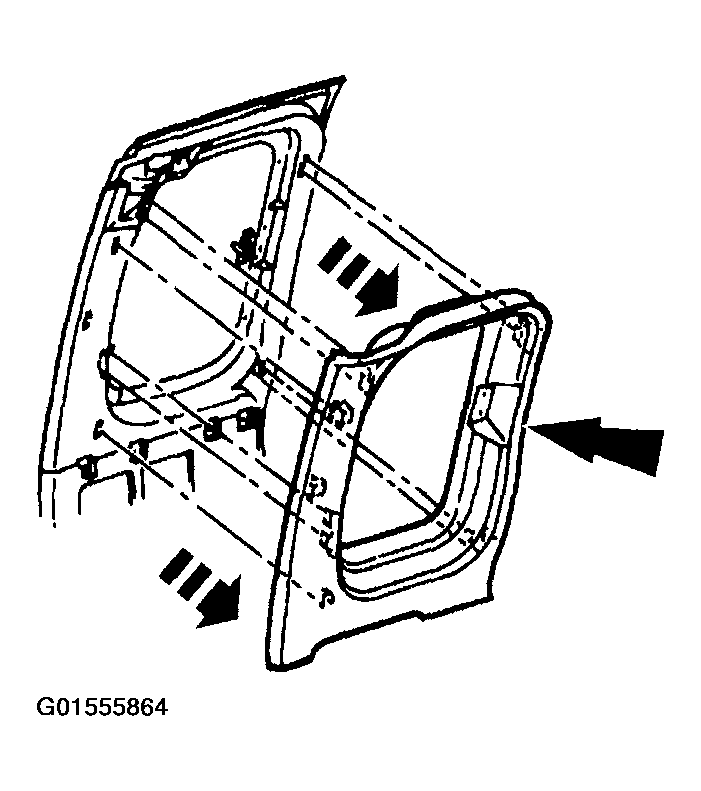

    Fig 2: Removing Rear Door Window Trim Panel
    G01555864Courtesy of FORD MOTOR CO.
  3. Remove the rear door window glass (29726).
    1. Remove the nuts and clips.
    2. Remove the rear door window glass and frame.

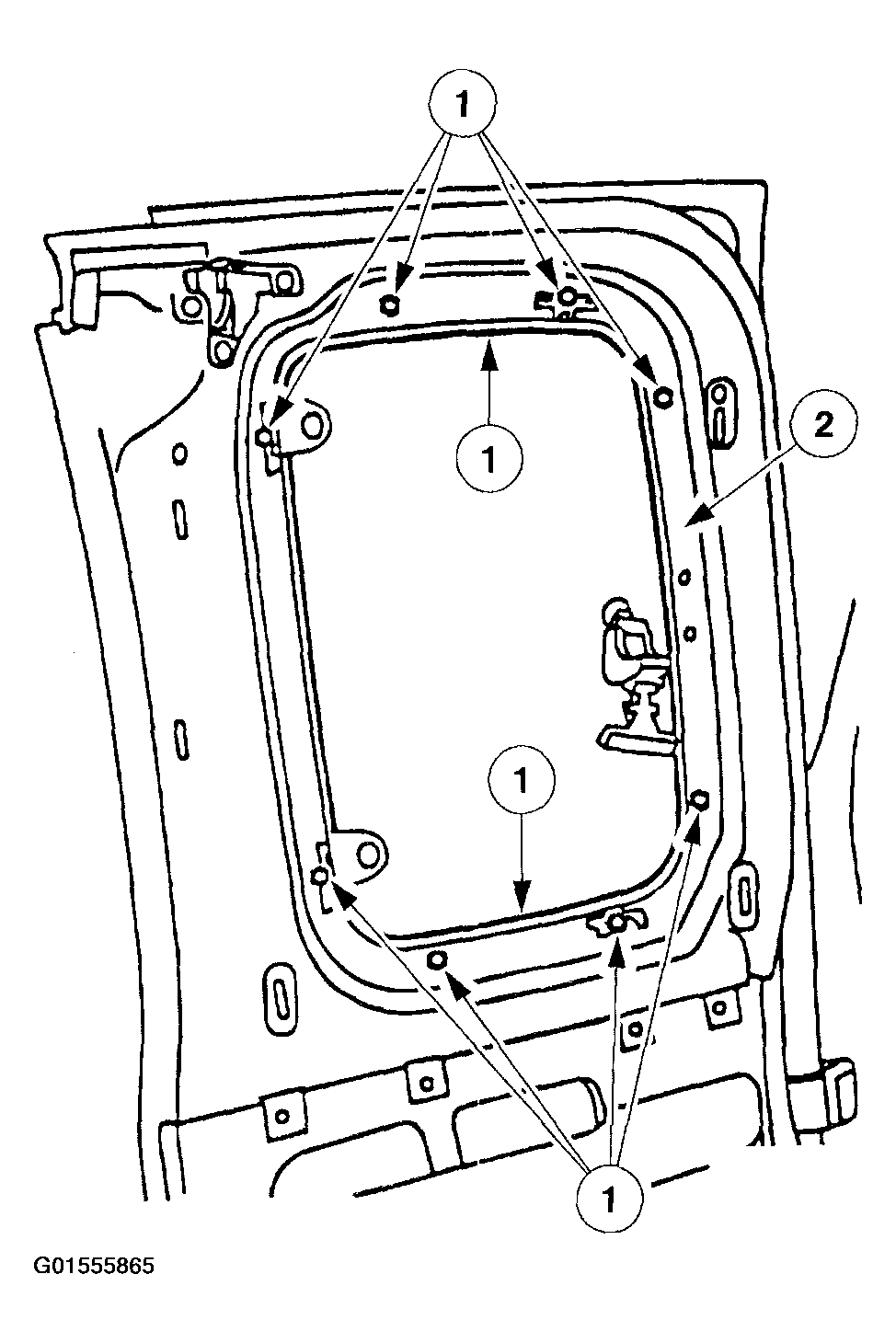

      Fig 3: Removing Rear Door Window Glass And Frame
      G01555865Courtesy of FORD MOTOR CO.
  4. Remove excess foam butyl from the window frame and window opening.
