Removal And Installation: Switch: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver side shown, passenger side, Crew Cab and Excursion rear door similar.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
    2. NOTE: The left front door with power windows and power mirror is shown. The right front door with power windows is similar.

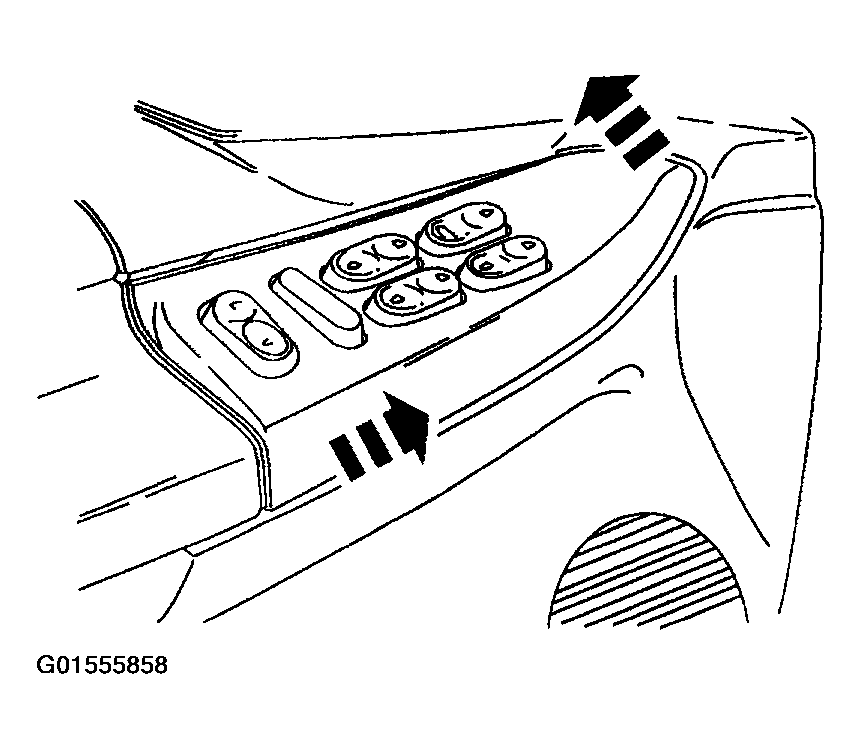

    Fig 1: Removing Door Command Center From Door
    G01555858Courtesy of FORD MOTOR CO.
  2. Remove the door command center from the door.
  3. Disconnect the electrical connectors.

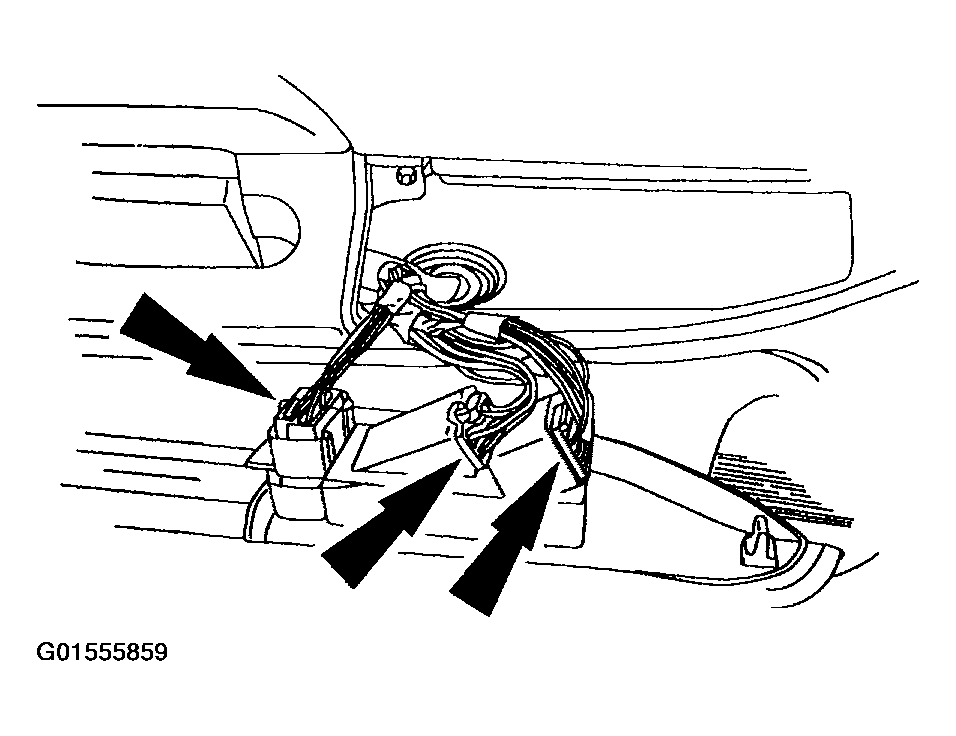

    Fig 2: Disconnecting Electrical Connectors
    G01555859Courtesy of FORD MOTOR CO.
  4. Remove the door command center from the vehicle.
  5. Remove the retaining clips on the mirror switch and remove the switch.
