Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the window control switch (14529), if so equipped. Refer to Switch .
Remove the window regulator handle (23342) (manual windows only).
1. Position the window crank handle cover aside.
2. Remove the window crank handle retaining screw and the window crank handle.
Fig 1: Removing Window Crank Handle Retaining Screw And Window Crank Handle
Courtesy of FORD MOTOR CO.
Remove the door trim panel and watershield. Refer to INTERIOR TRIM AND ORNAMENTATION .

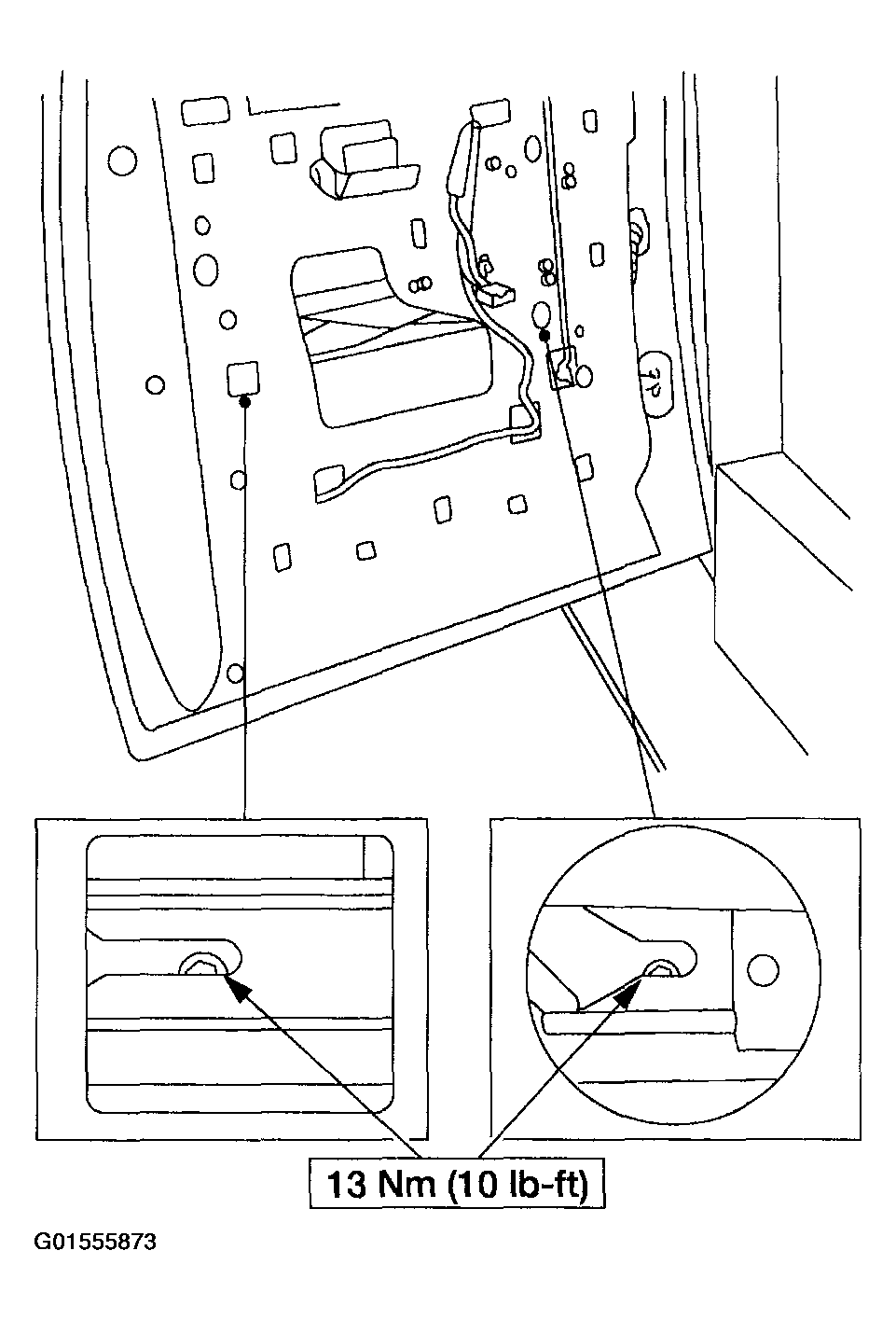

Temporarily install the window switch or window regulator handle, and lower the window to access the glass bracket nuts and loosen the nuts.

Fig 2: Installing Window Switch Or Window Regulator Handle
Courtesy of FORD MOTOR CO.
Remove the inner (25860) and outer (25596) beltline weatherstrips.

Fig 3: Removing Inner And Outer Beltline Weatherstrips
Courtesy of FORD MOTOR CO.

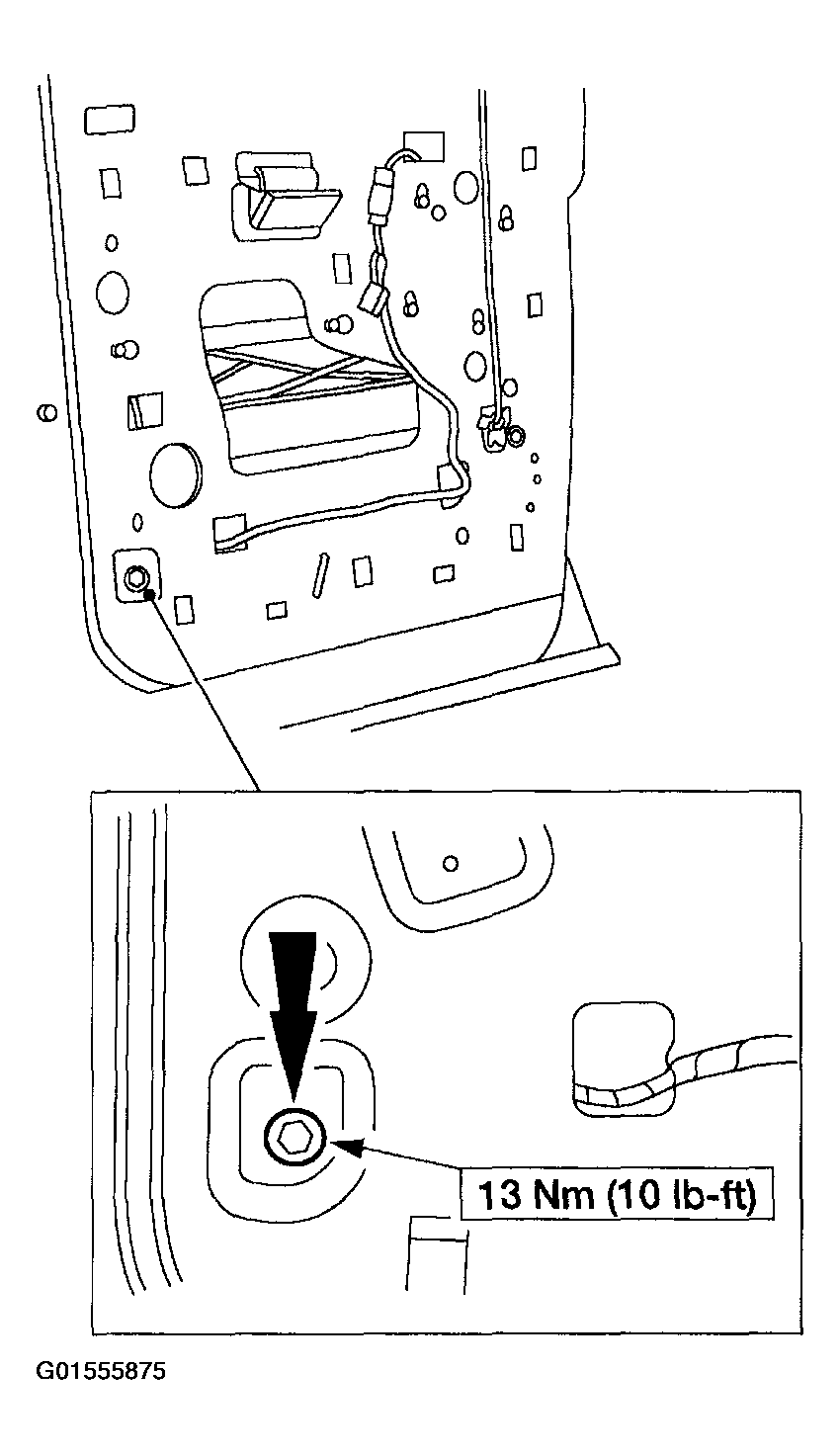

Loosen the rear glass run bolt.

Fig 4: Loosening Rear Glass Run Bolt
Courtesy of FORD MOTOR CO.
Remove the rear door window glass (25712) from the regulator channel (25766) by sliding the channel forward, then position the rear door window glass in the bottom of the door.
Remove the window glass.
- Remove the front edge of the window glass from the glass run.
- Lift the window glass up through the belt opening to remove from the door.
To install, reverse the removal procedure.
