Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

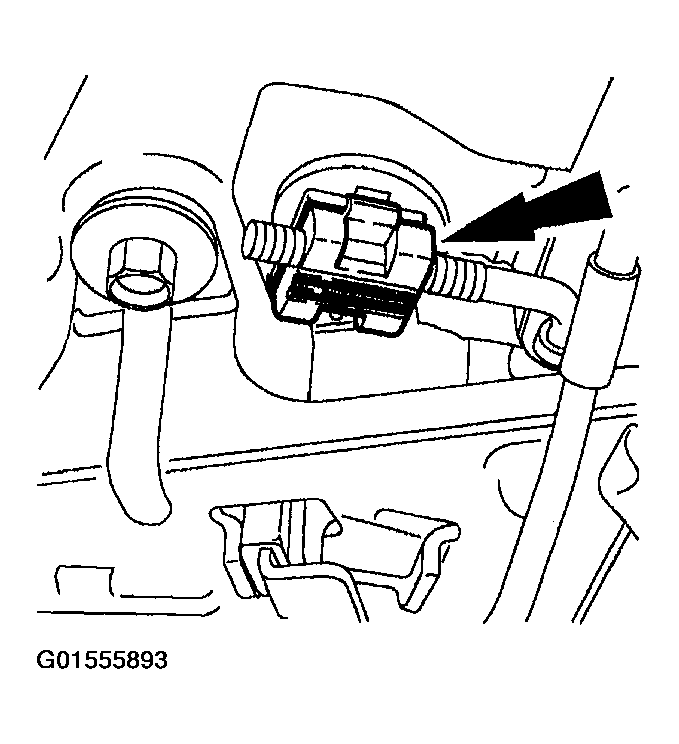

Disconnect the two rear window defrost grid electrical connectors.

Fig 1: Disconnecting Two Rear Window Defrost Grid Electrical Connectors
Courtesy of FORD MOTOR CO.

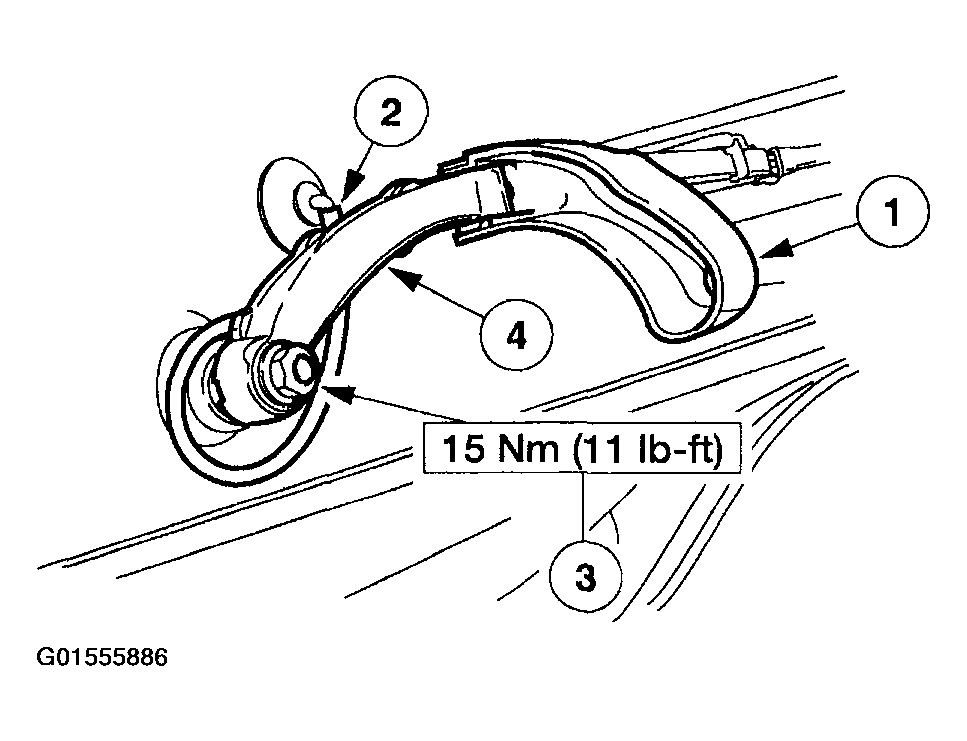

Remove the rear window wiper pivot arm.
1. Lift the pivot arm nut cover.
2. Disconnect the rear window washer hose.
3. Remove the nut.
4. Remove the pivot arm.
Fig 2: Removing Rear Window Wiper Pivot Arm
Courtesy of FORD MOTOR CO.
Remove the rubber grommet.

Fig 3: Removing Rubber Grommet
Courtesy of FORD MOTOR CO.

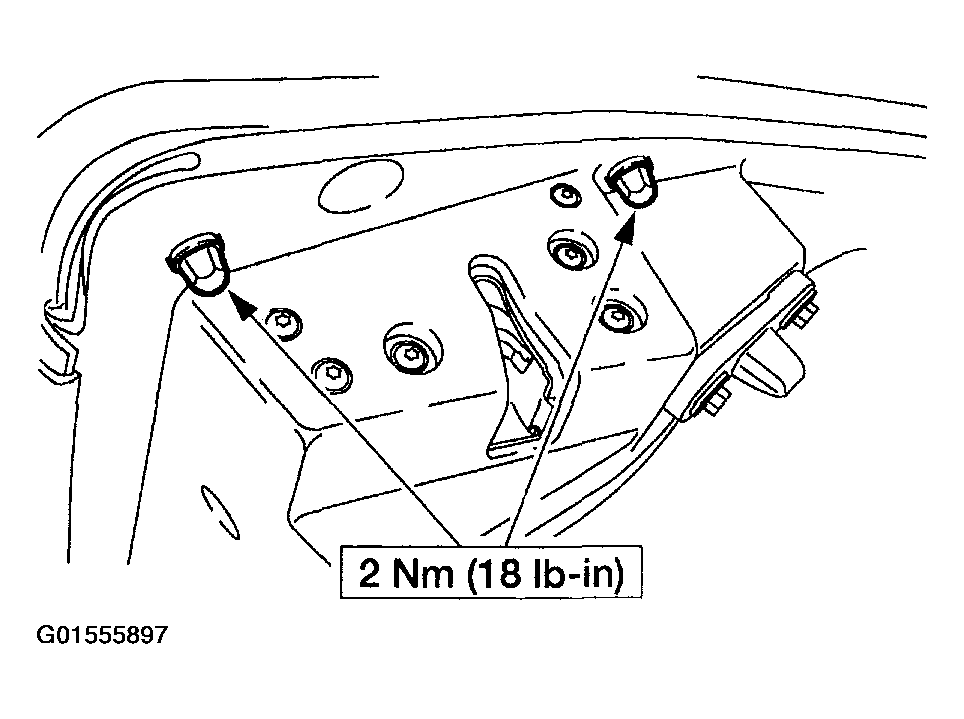

Remove the screw covers.

Fig 4: Removing Screw Covers
Courtesy of FORD MOTOR CO.
Remove the screws and the liftgate handle.

Fig 5: Removing Screws And Liftgate Handle
Courtesy of FORD MOTOR CO.

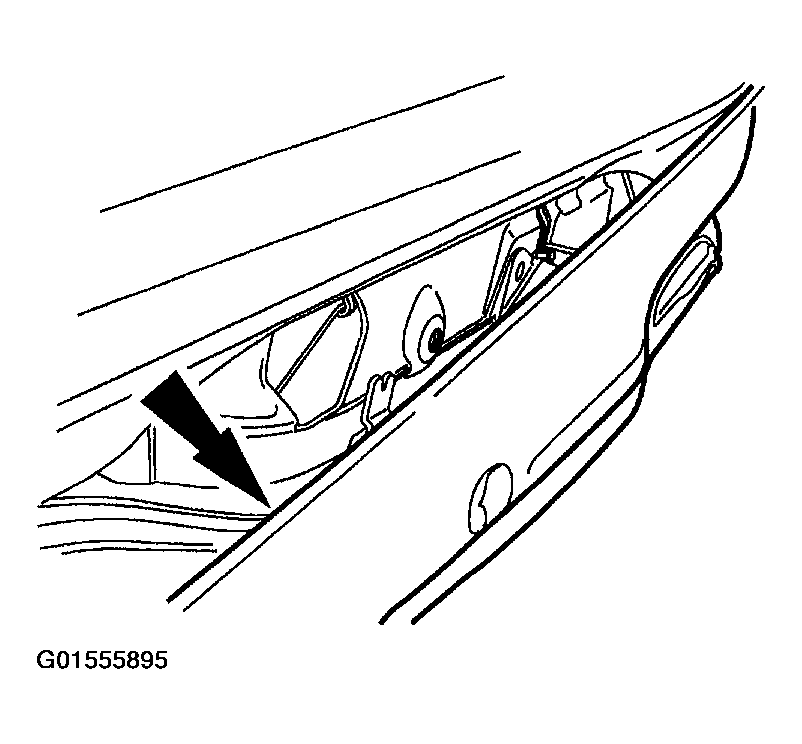

Remove all of the liftgate interior trim panels.

Fig 6: Removing All Of Liftgate Interior Trim Panels
Courtesy of FORD MOTOR CO.

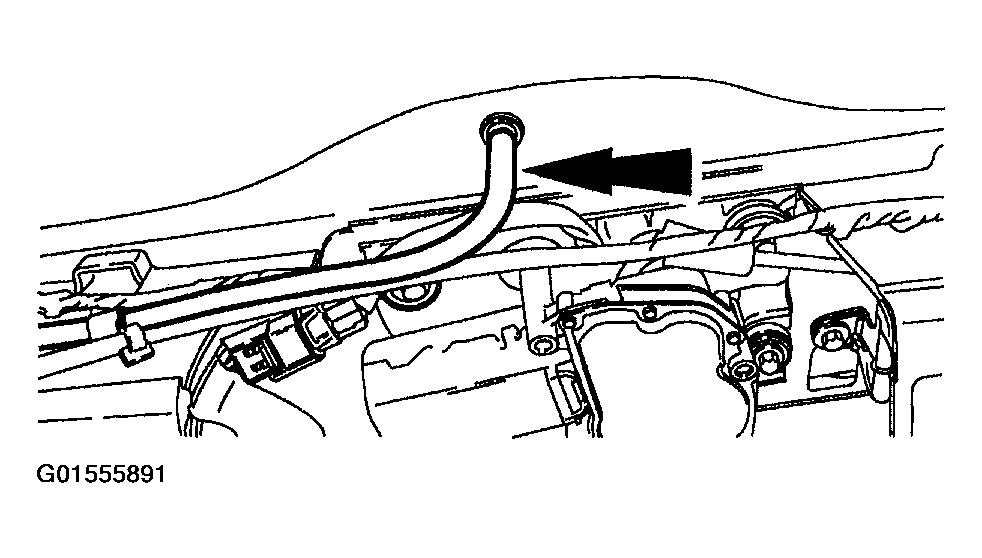

Disconnect the washer hose.

Fig 7: Disconnecting Washer Hose
Courtesy of FORD MOTOR CO.
Disconnect the lock rod.

Fig 8: Disconnecting Lock Rod
Courtesy of FORD MOTOR CO.
Disconnect the latch rod.

Fig 9: Disconnecting Latch Rod
Courtesy of FORD MOTOR CO.

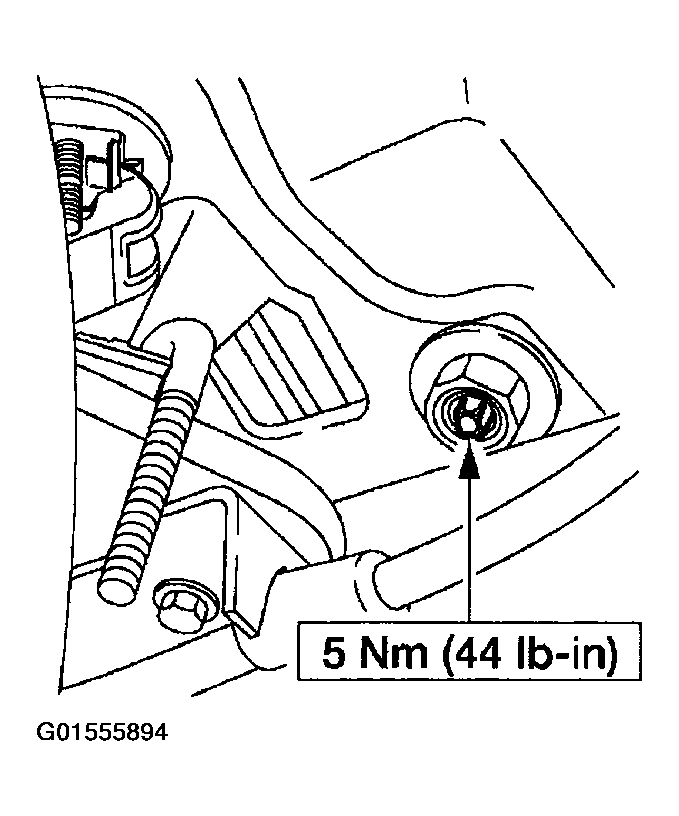

Remove the six nuts.

Fig 10: Removing Six Nuts
Courtesy of FORD MOTOR CO.

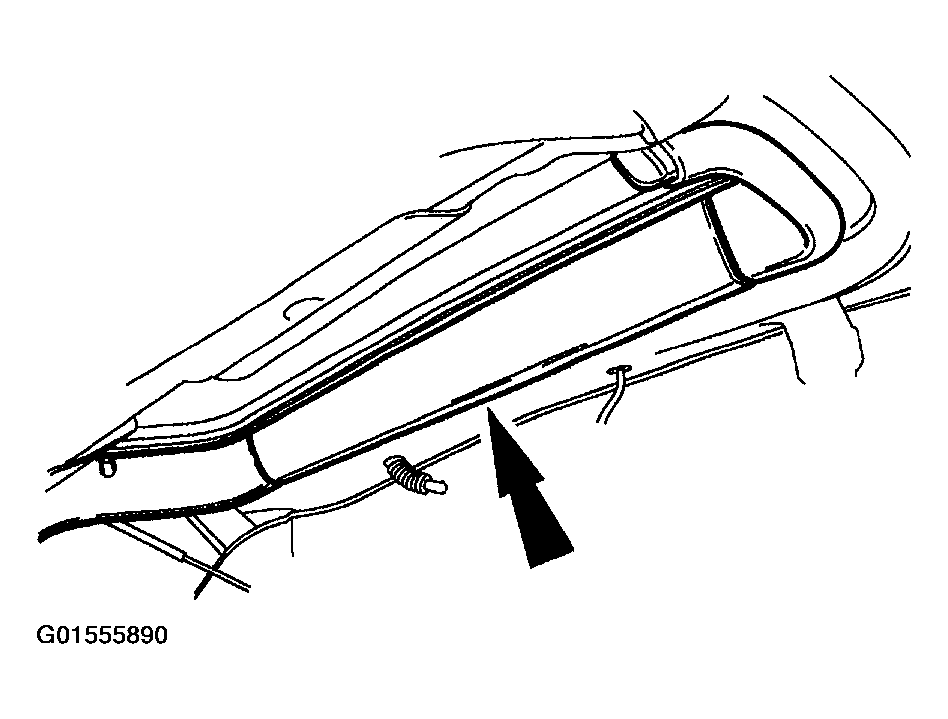

Remove the liftgate exterior molding.

Fig 11: Removing Liftgate Exterior Molding
Courtesy of FORD MOTOR CO.

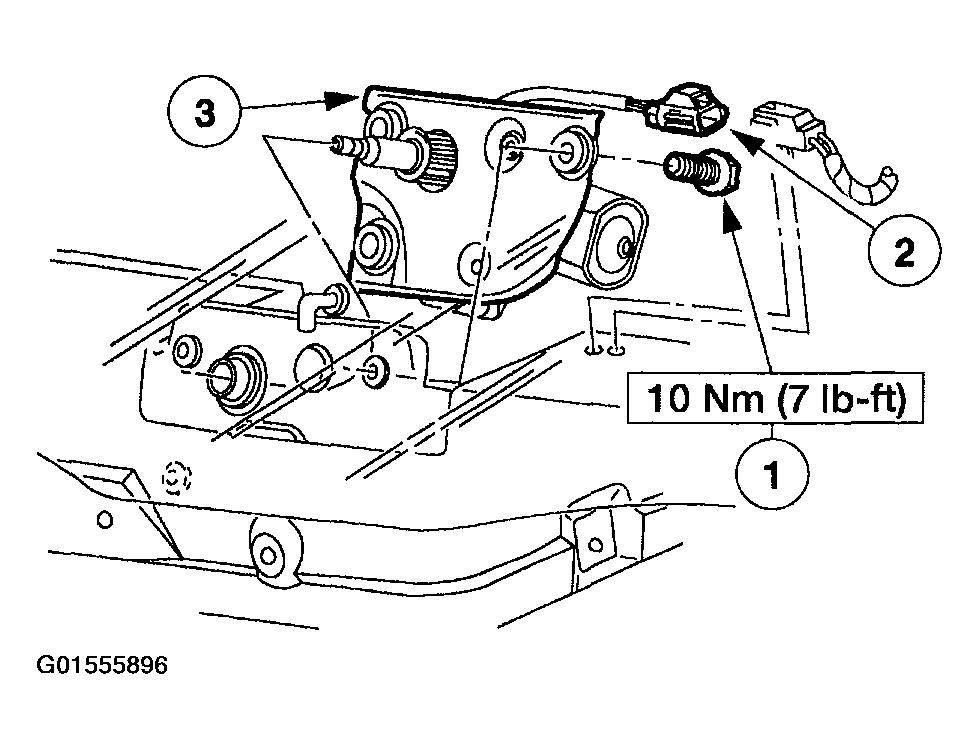

Remove the rear wiper motor.
1. Remove the three rear wiper motor bolts.
2. Disconnect the electrical connector.
3. Remove the rear wiper motor.

  Fig 12: Removing Rear Wiper Motor
  Courtesy of FORD MOTOR CO.
Remove the 16 nuts.

Fig 13: Removing Nuts
Courtesy of FORD MOTOR CO.
With the aid of an assistant, remove the liftgate glass from the liftgate.
To install, reverse the removal procedure.
- Seal the liftgate glass assembly with 4-mm (0.16-in) bead of foam core butyl or equivalent meeting Ford specification WSB-M4GB45-A.
