Pinpoint Test H: Delayed Accessory Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

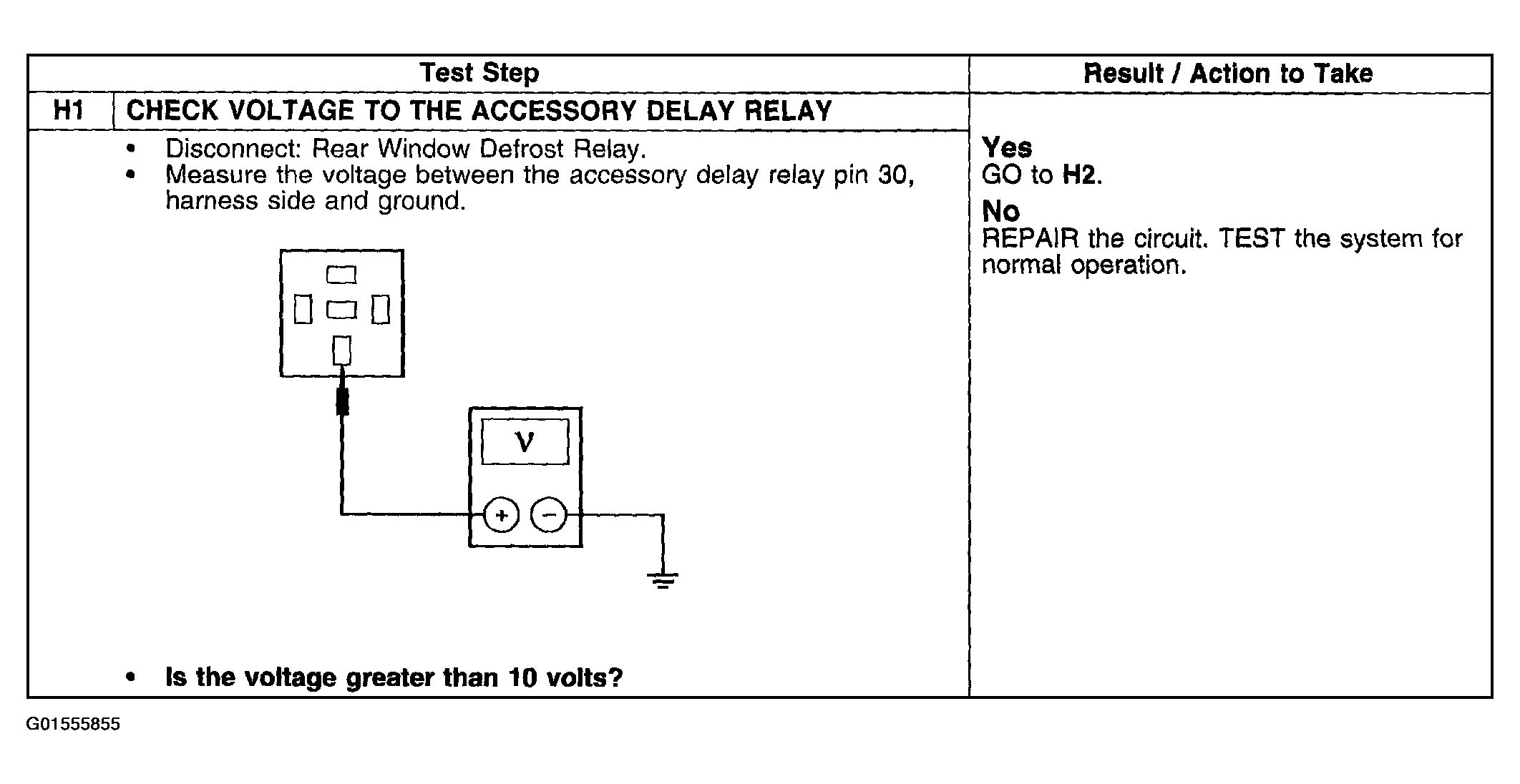

Fig 1: Pinpoint Test H: Delayed Accessory Is Inoperative (H1)
G01555855Courtesy of FORD MOTOR CO.

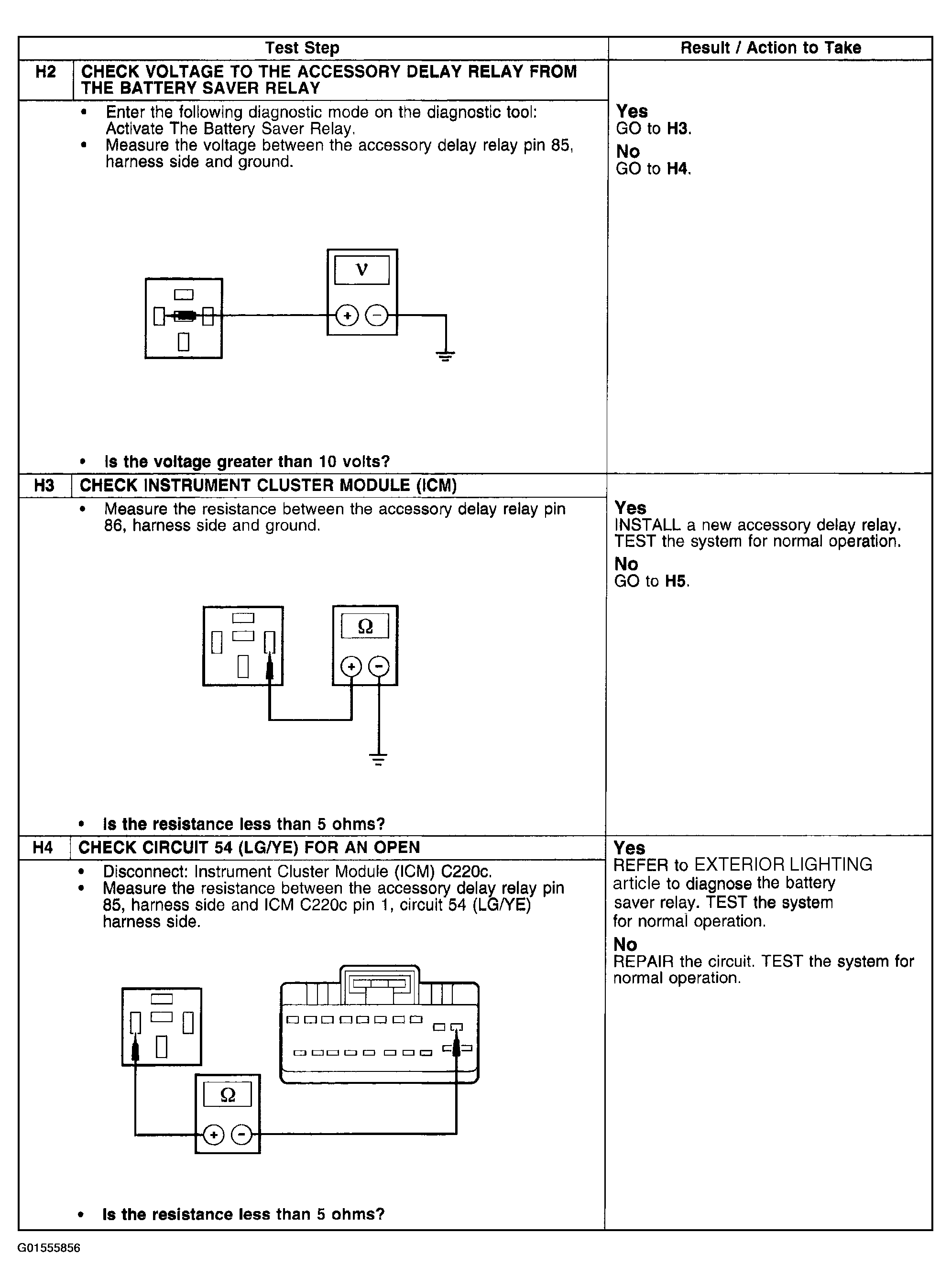

Fig 2: Pinpoint Test H: Delayed Accessory Is Inoperative (H2-H4)
G01555856Courtesy of FORD MOTOR CO.

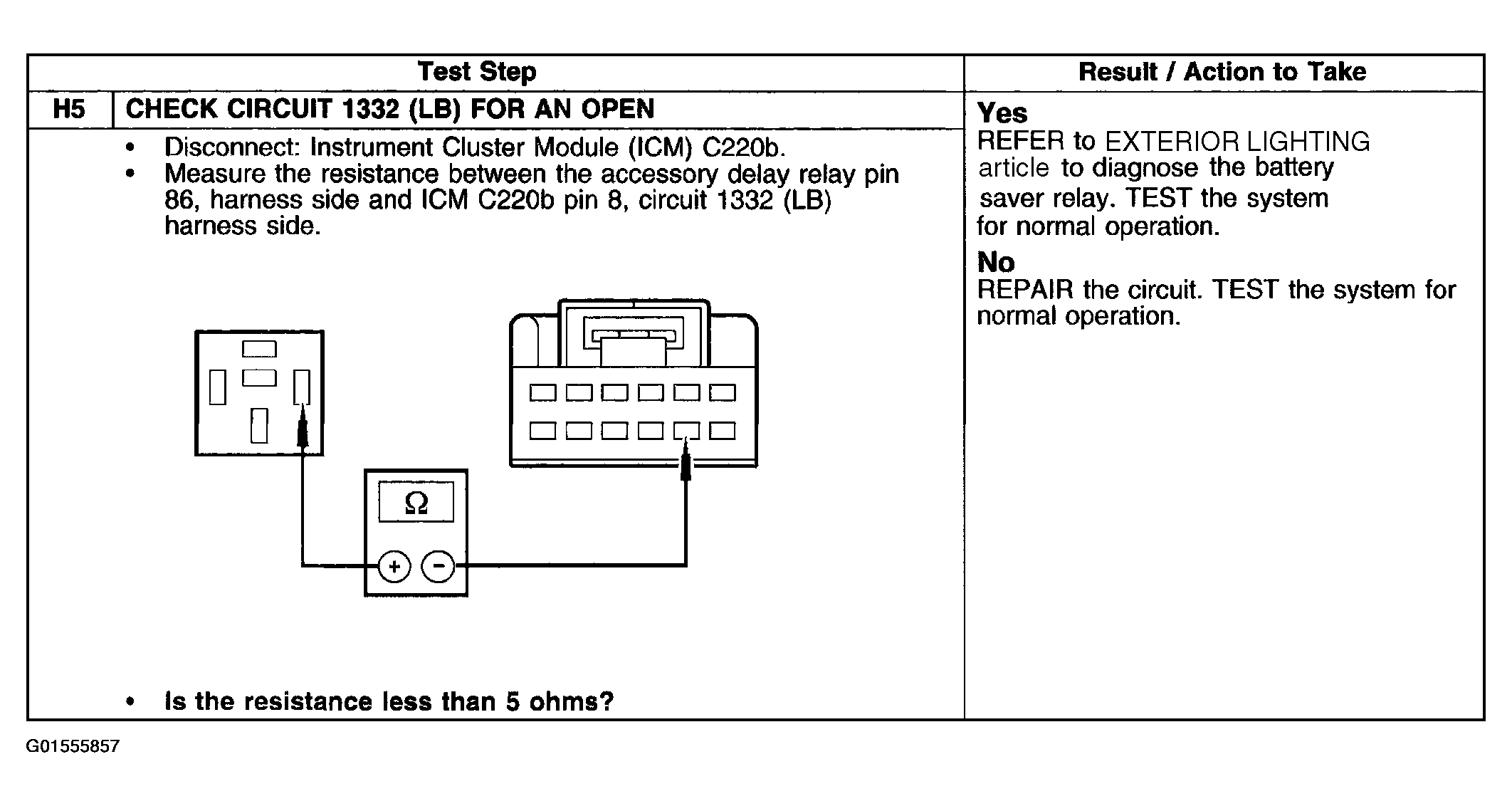

Fig 3: Pinpoint Test H: Delayed Accessory Is Inoperative (H5)
G01555857Courtesy of FORD MOTOR CO.
