Pinpoint Test F: Defrost System Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

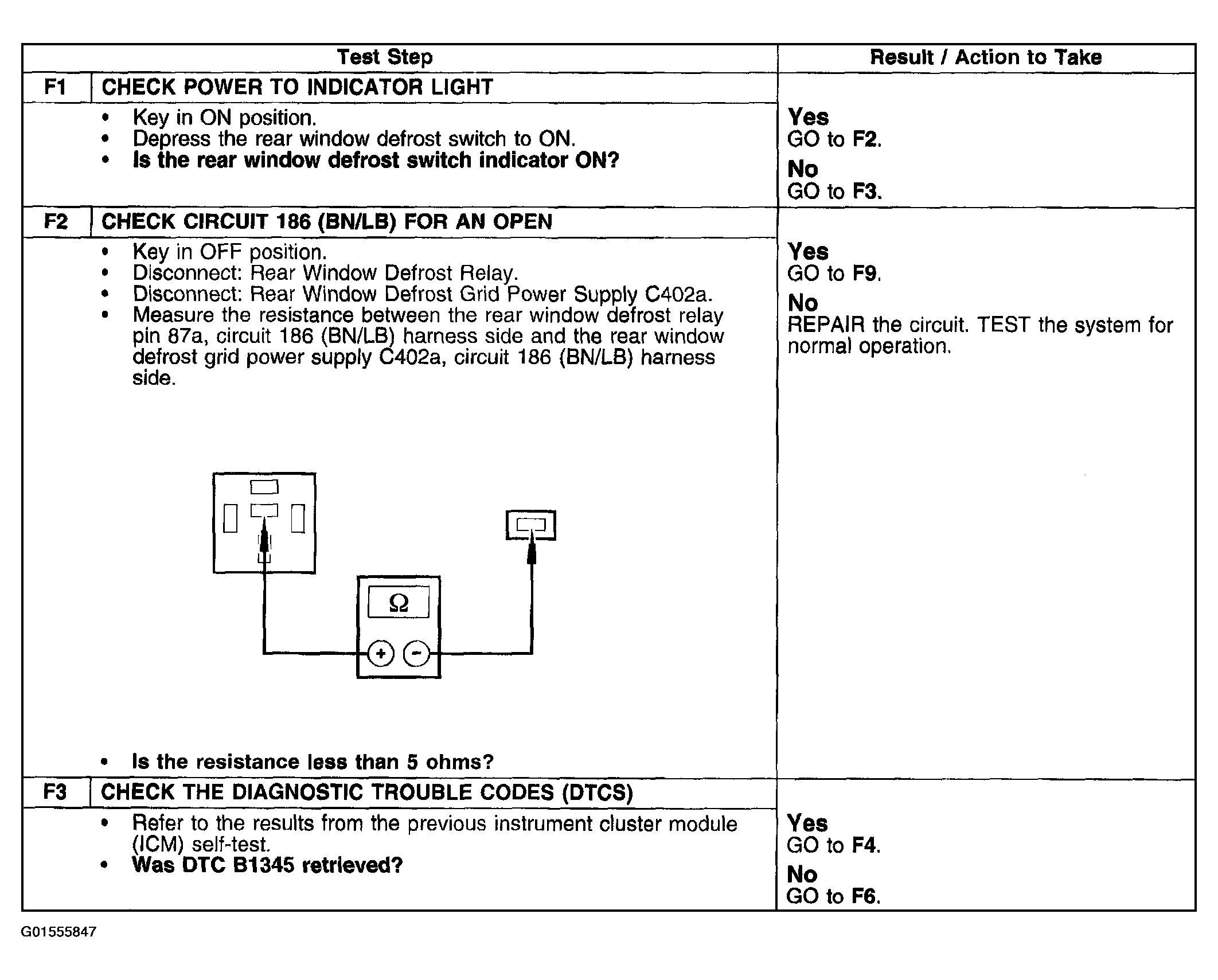

Fig 1: Pinpoint Test F: Defrost System Is Inoperative (F1-F3)

Courtesy of FORD MOTOR CO.

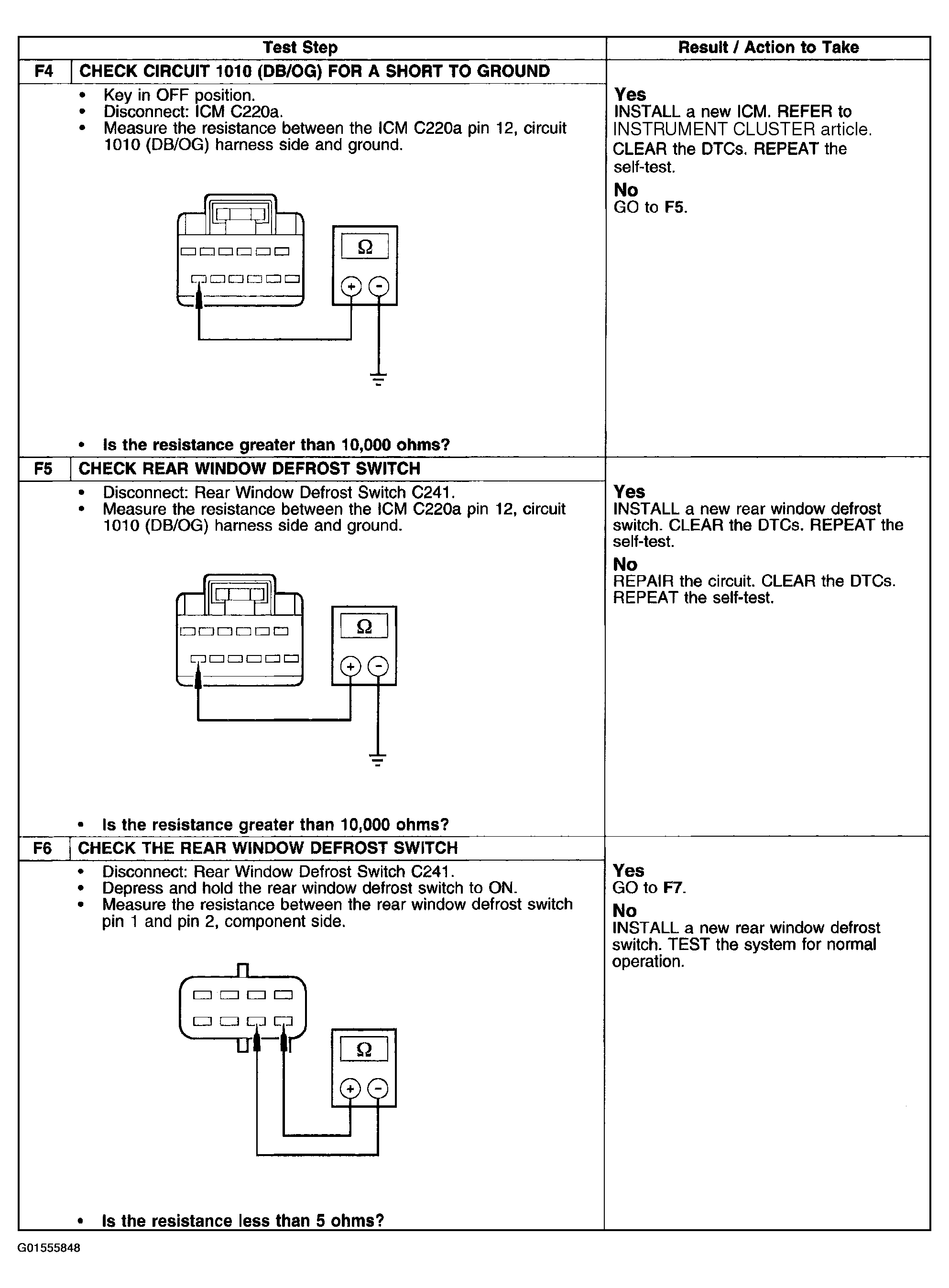

Fig 2: Pinpoint Test F: Defrost System Is Inoperative (F4-F6)

Courtesy of FORD MOTOR CO.

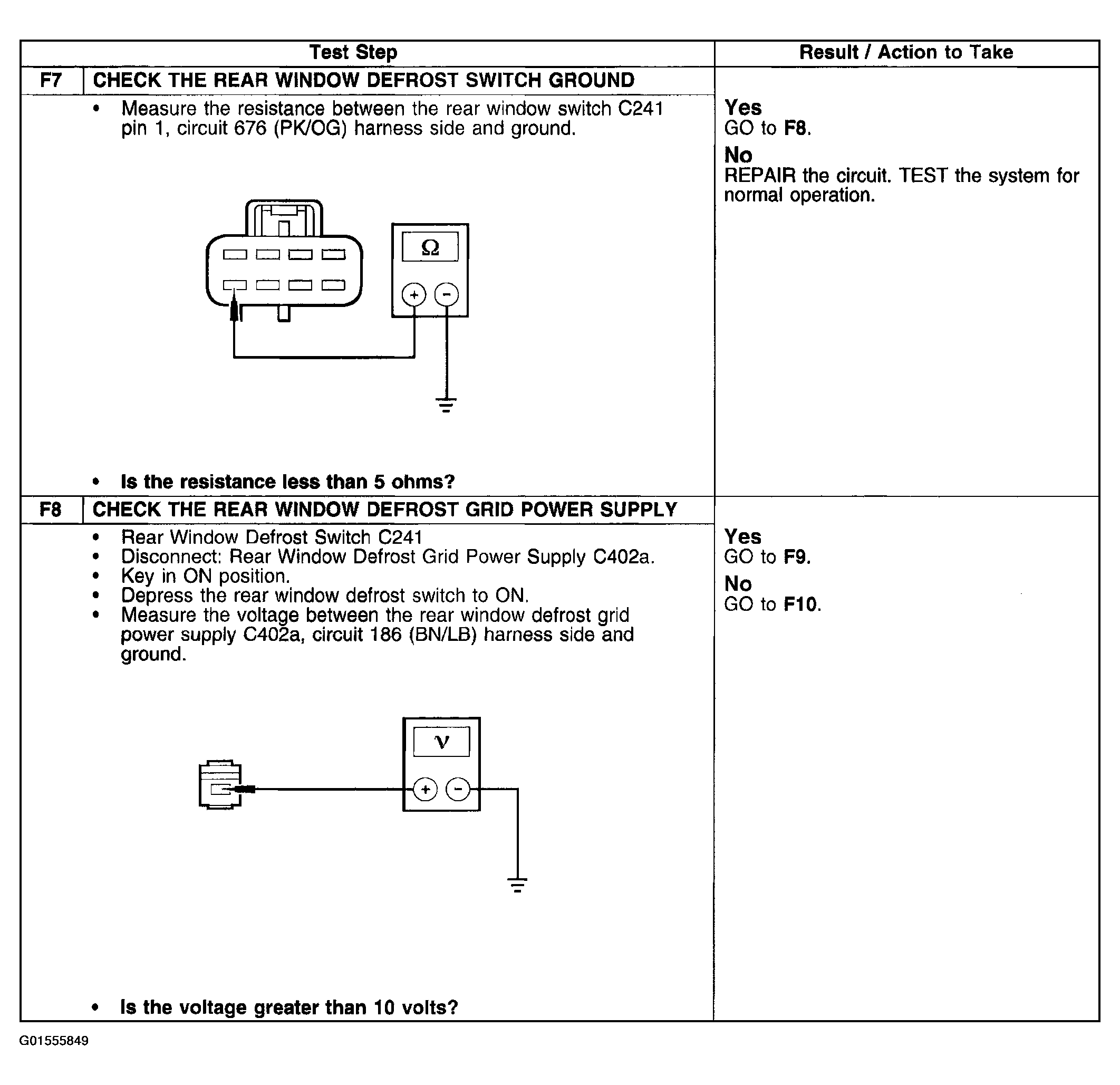

Fig 3: Pinpoint Test F: Defrost System Is Inoperative (F7 & F8)

Courtesy of FORD MOTOR CO.

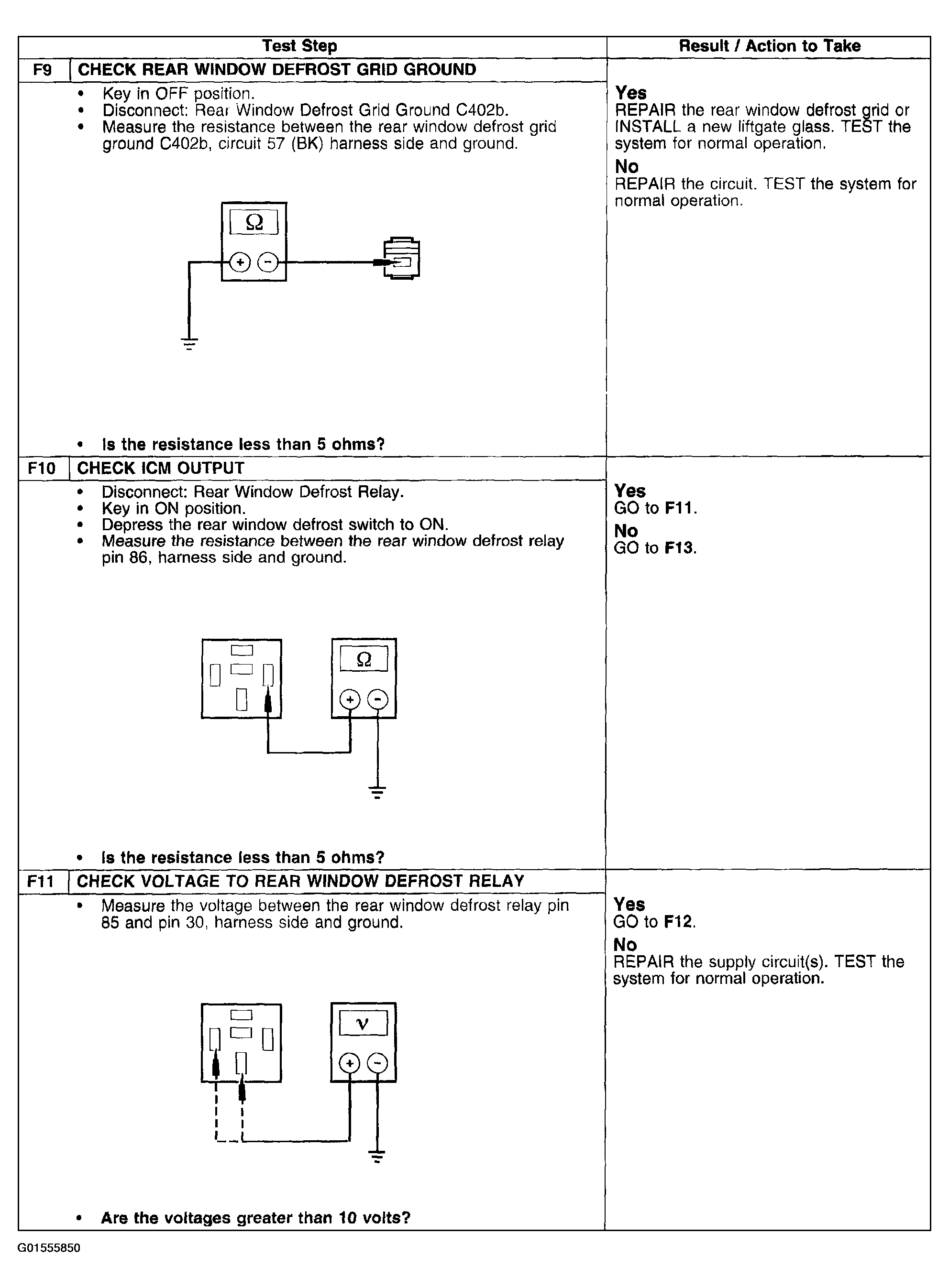

Fig 4: Pinpoint Test F: Defrost System Is Inoperative (F9-F11)

Courtesy of FORD MOTOR CO.

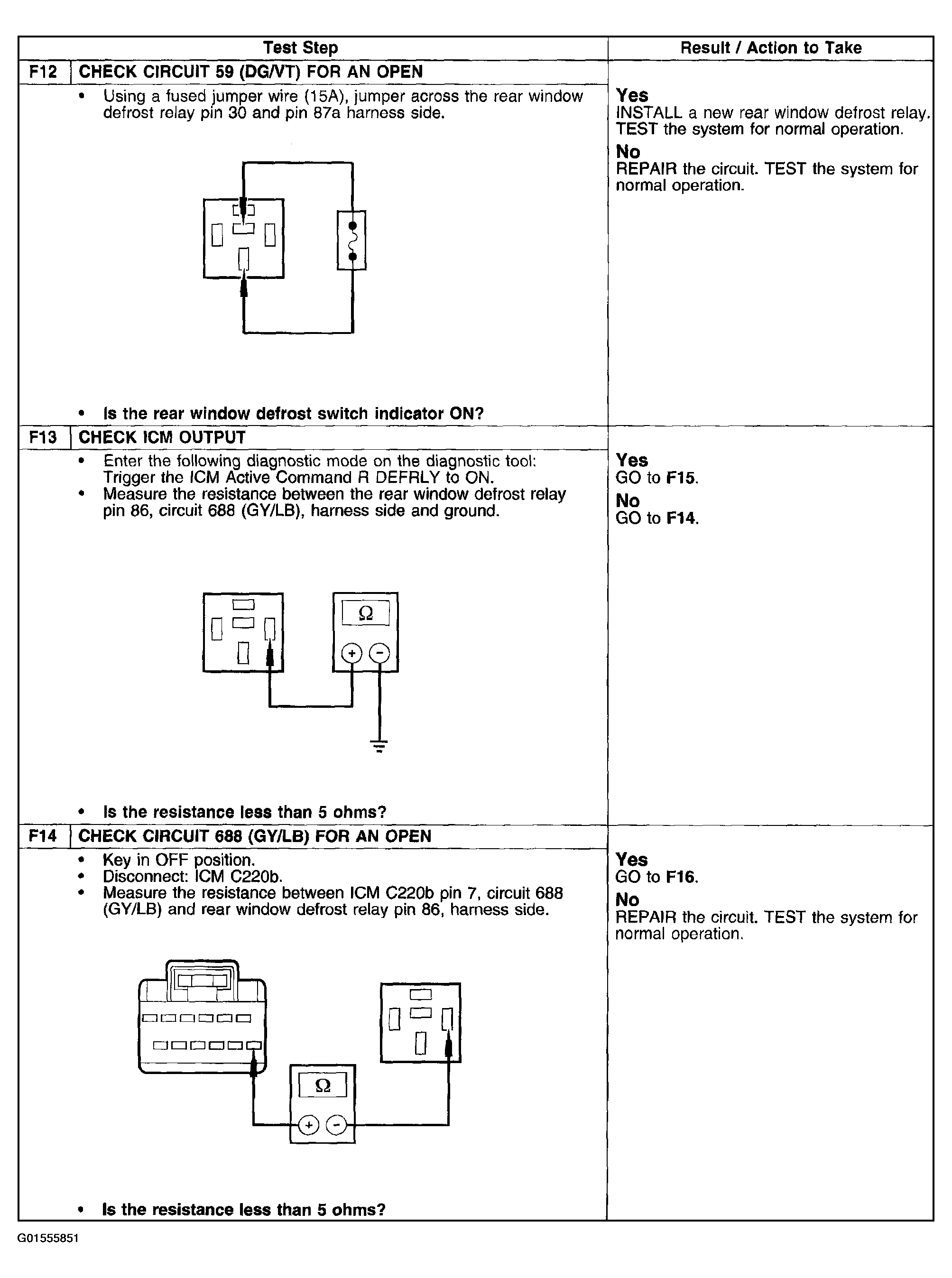

Fig 5: Pinpoint Test F: Defrost System Is Inoperative (F12-F14)

Courtesy of FORD MOTOR CO.

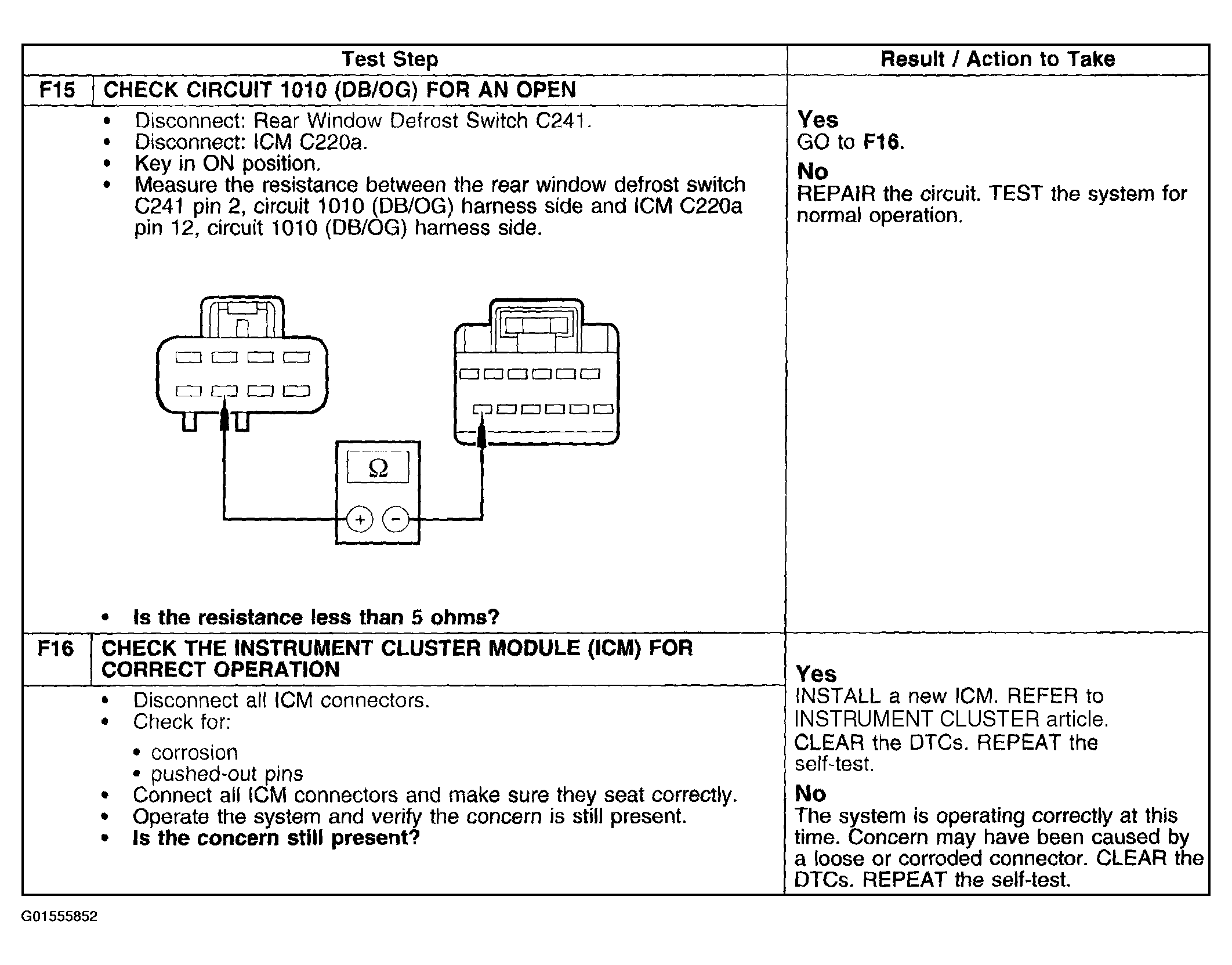

Fig 6: Pinpoint Test F: Defrost System Is Inoperative (F15 & F16)

Courtesy of FORD MOTOR CO.
