Pinpoint Test E: Vent Power Windows Are Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

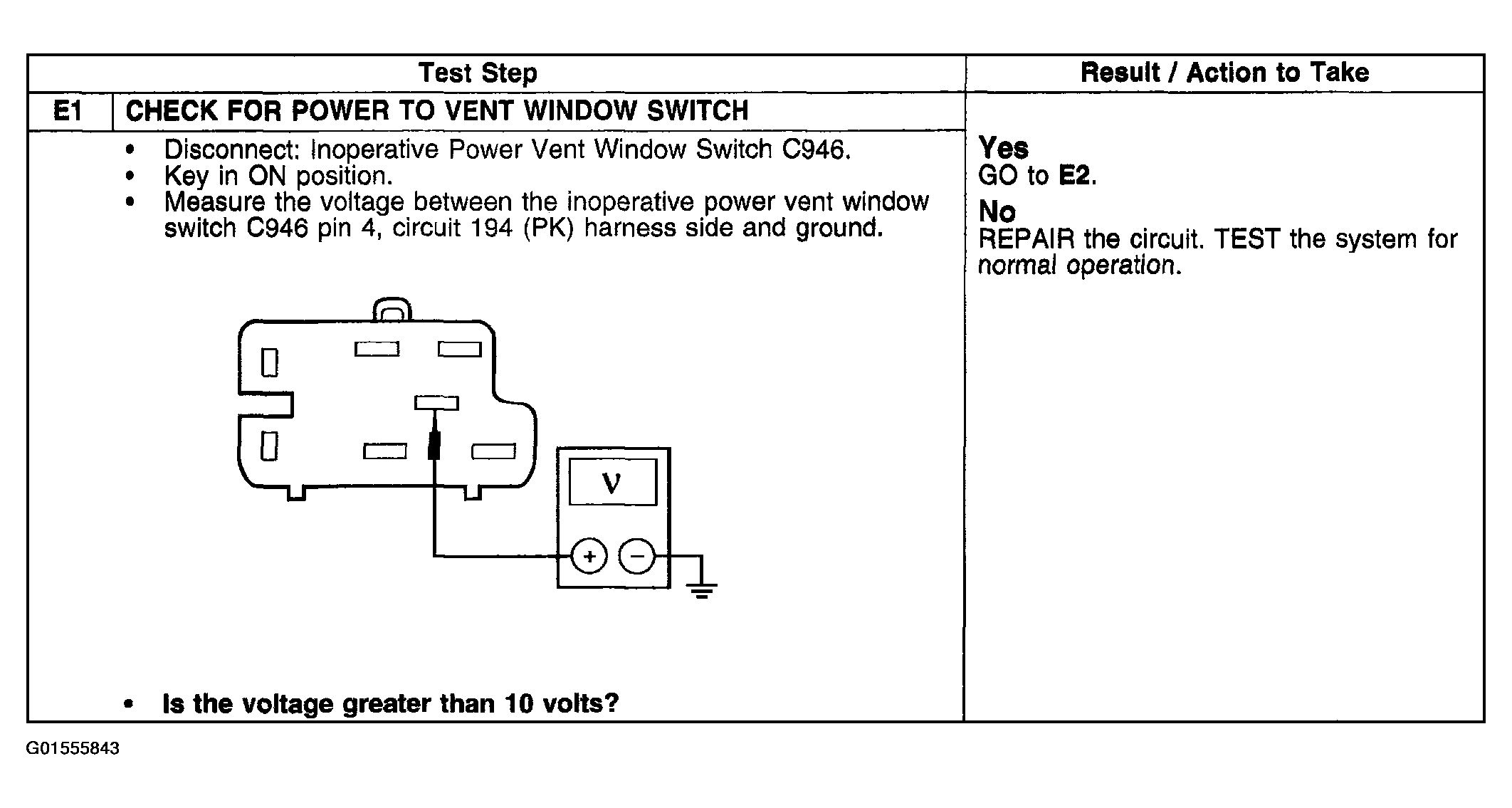

Fig 1: Pinpoint Test E: Vent Power Windows Are Inoperative (E1)
G01555843Courtesy of FORD MOTOR CO.

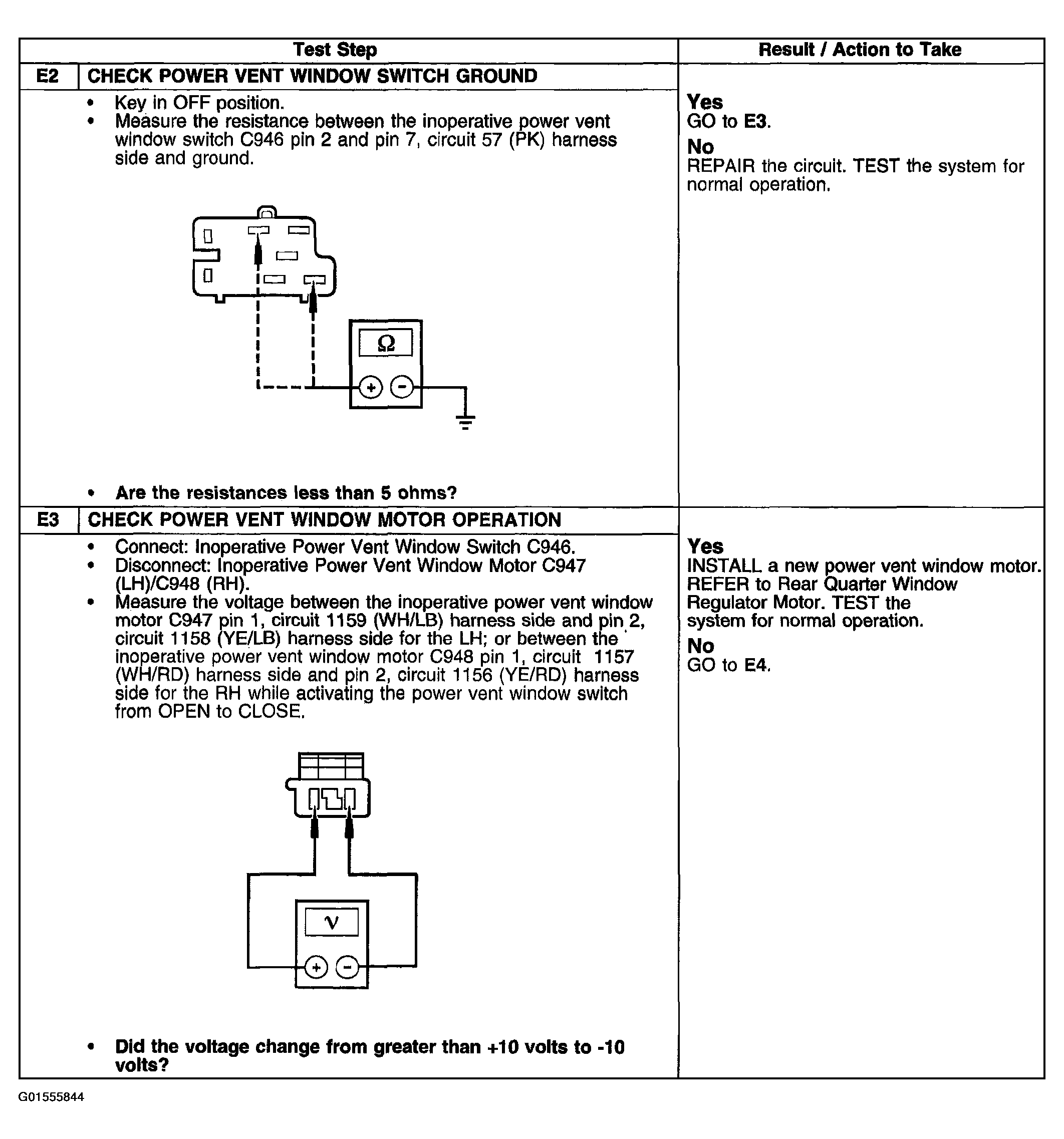

Fig 2: Pinpoint Test E: Vent Power Windows Are Inoperative (E2 & E3)
G01555844Courtesy of FORD MOTOR CO.

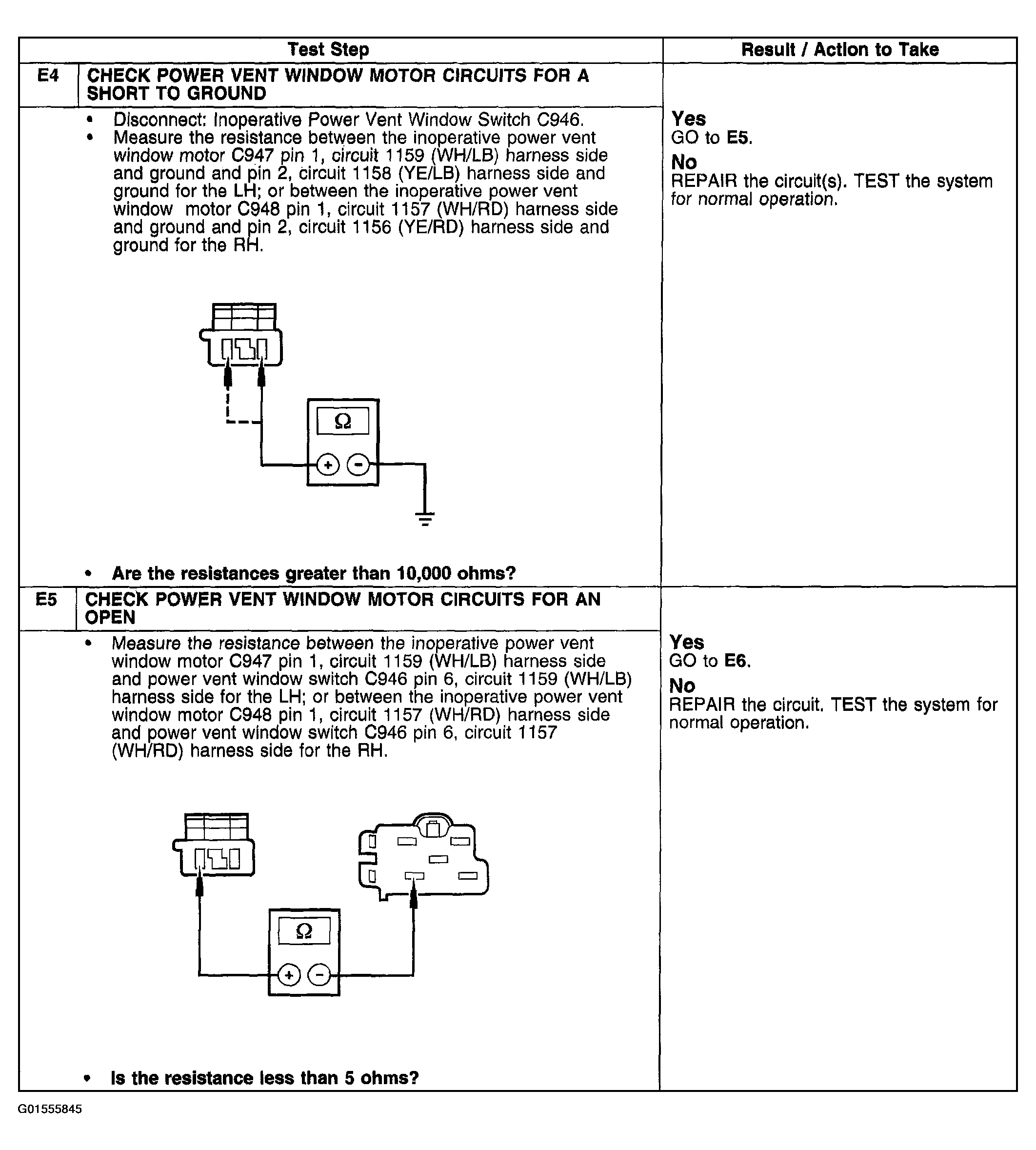

Fig 3: Pinpoint Test E: Vent Power Windows Are Inoperative (E4 & E5)
G01555845Courtesy of FORD MOTOR CO.

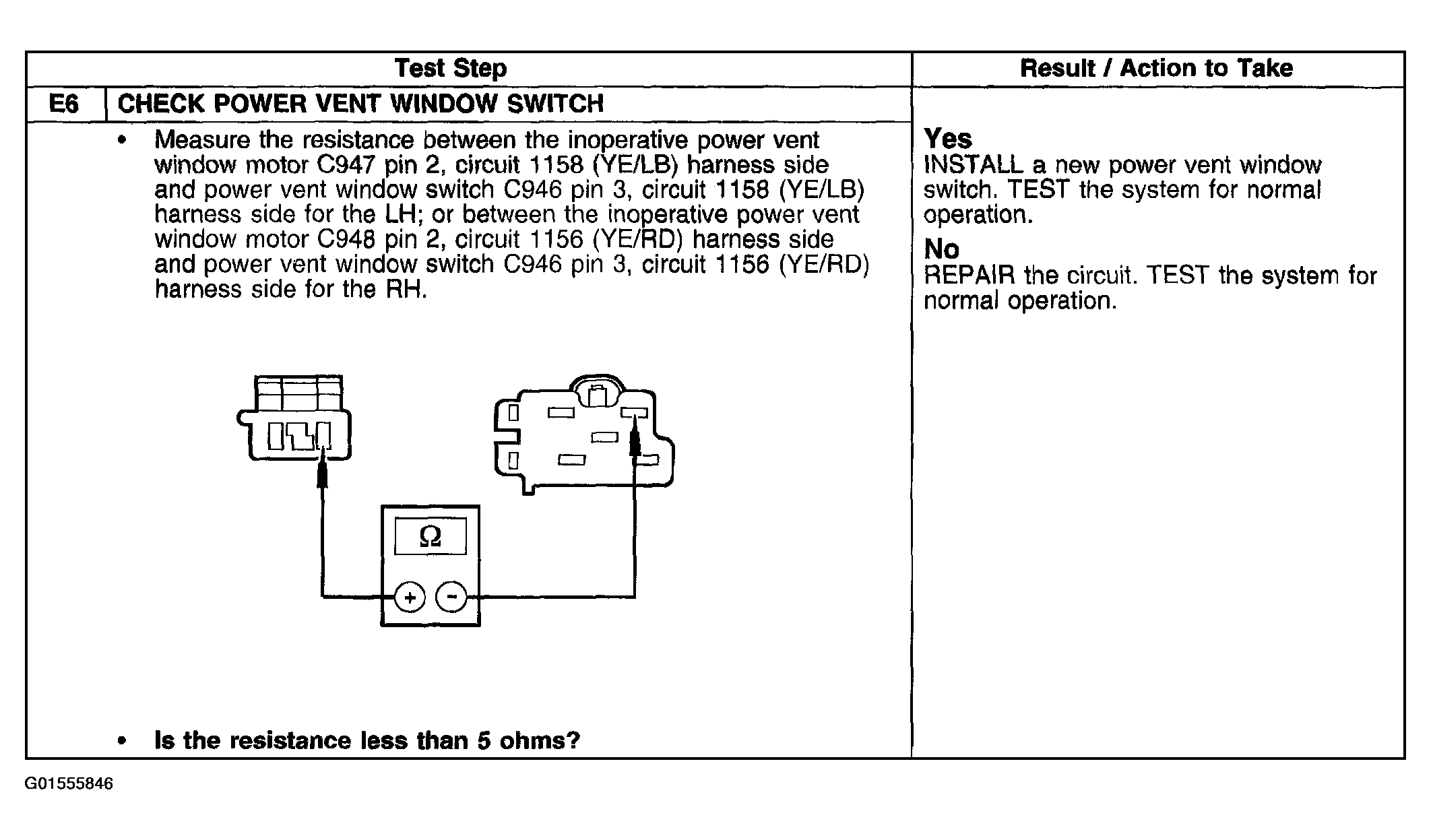

Fig 4: Pinpoint Test E: Vent Power Windows Are Inoperative (E6)
G01555846Courtesy of FORD MOTOR CO.
