Pinpoint Test D: LR Or RR Power Window Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

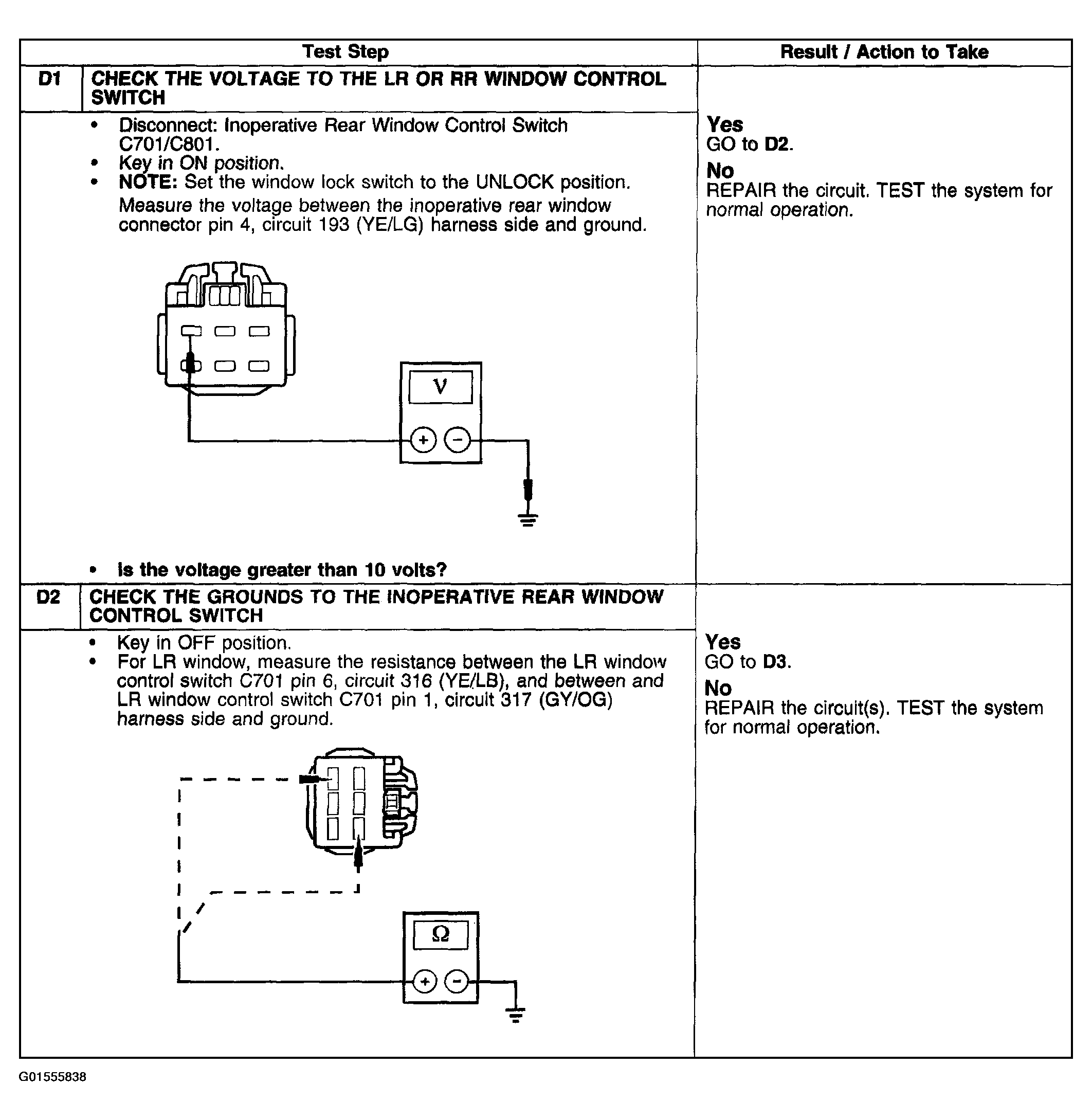

Fig 1: Pinpoint Test D: LR Or RR Power Window Is Inoperative (D1 & D2)

Courtesy of FORD MOTOR CO.

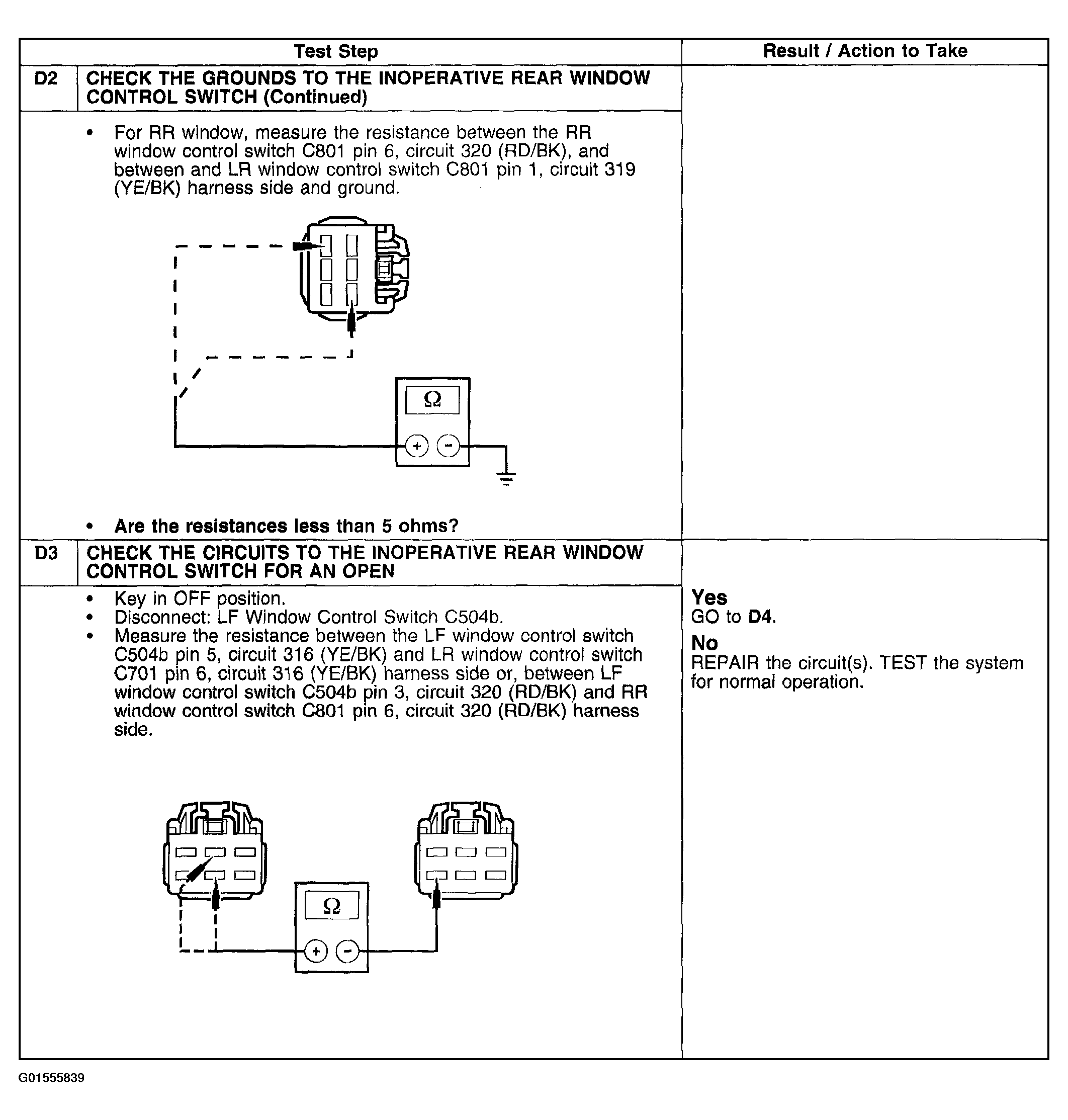

Fig 2: Pinpoint Test D: LR Or RR Power Window Is Inoperative (D2 Cont. & D3)

Courtesy of FORD MOTOR CO.

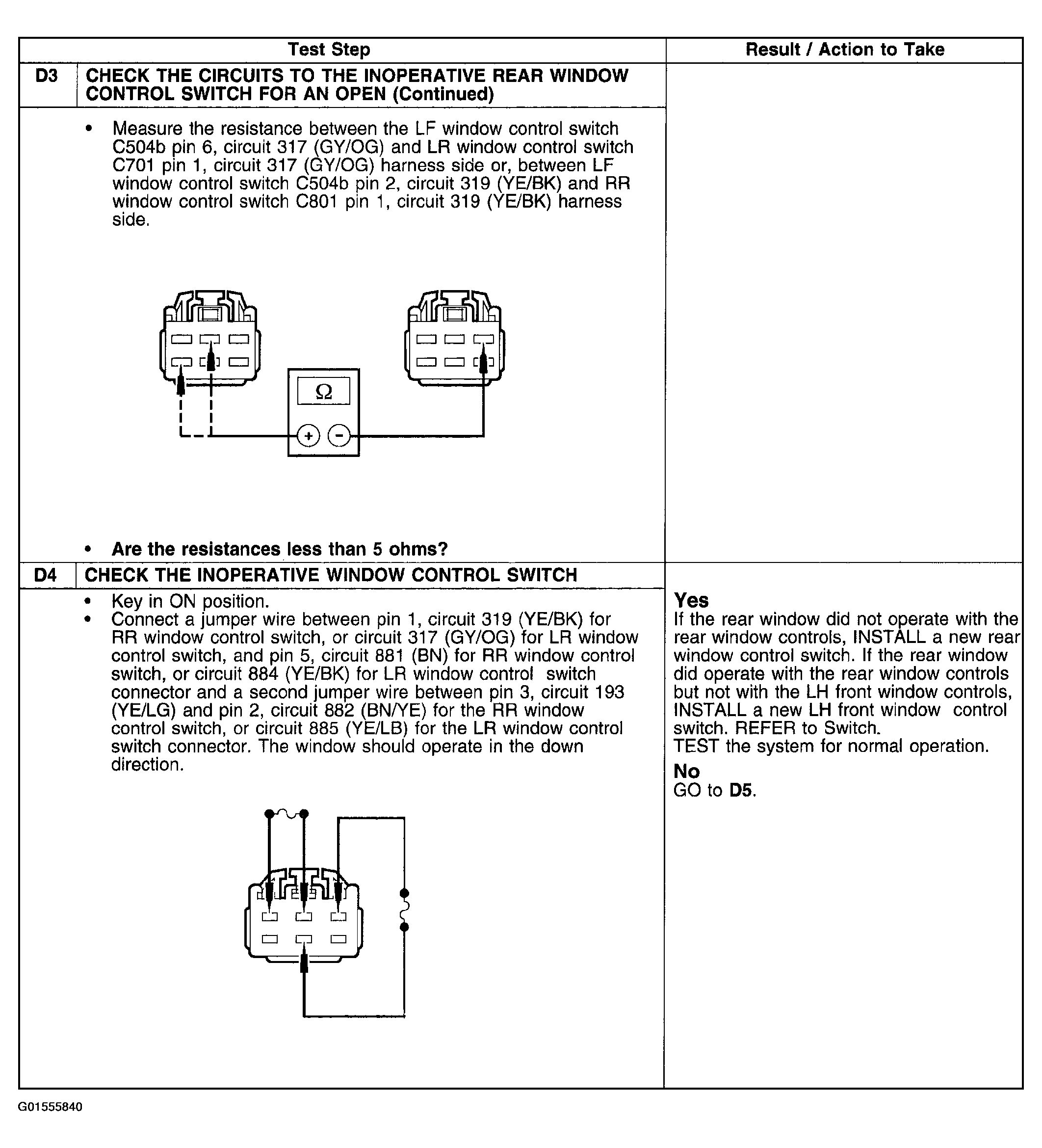

Fig 3: Pinpoint Test D: LR Or RR Power Window Is Inoperative (D3 Cont. & D4)

Courtesy of FORD MOTOR CO.

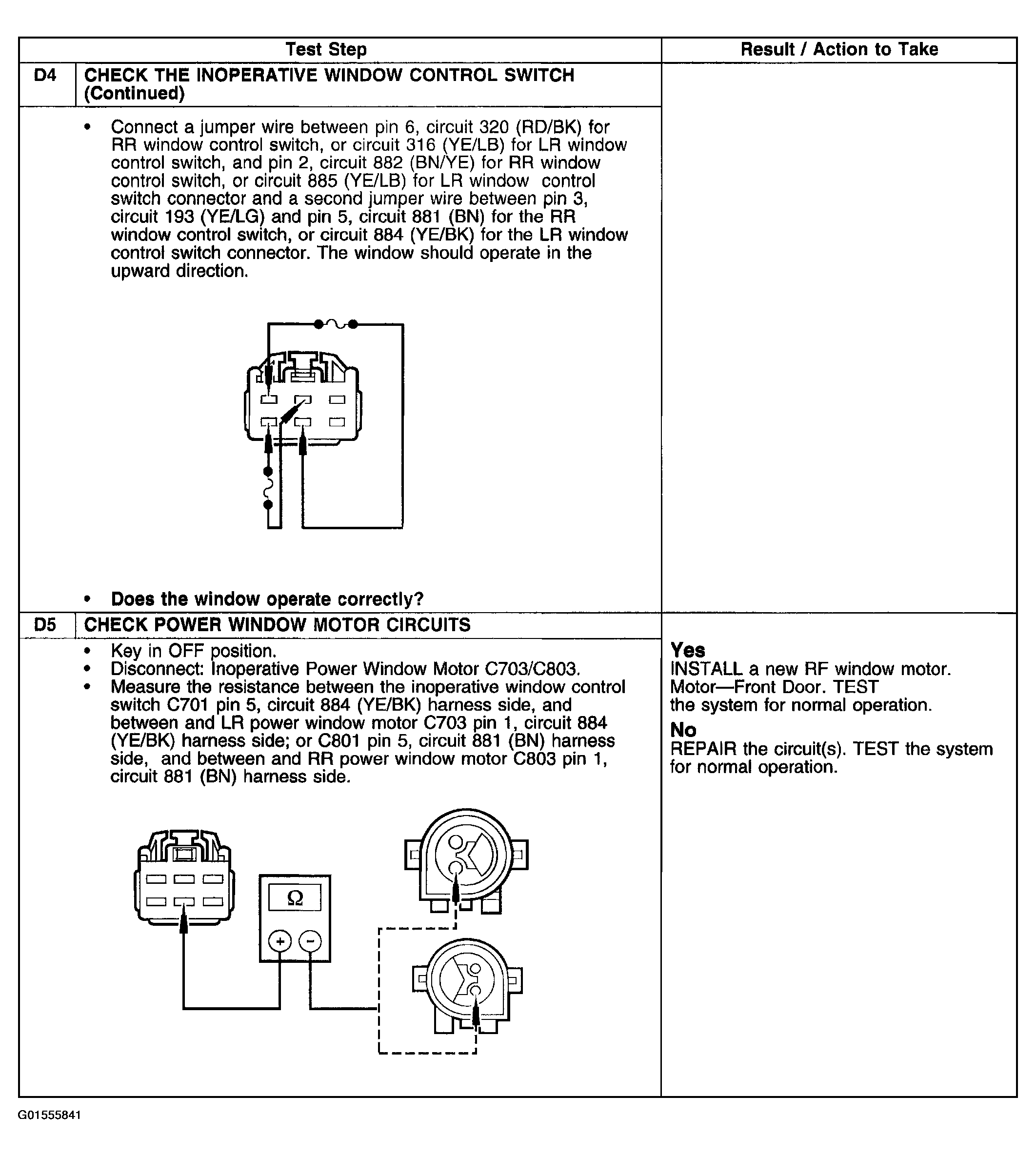

Fig 4: Pinpoint Test D: LR Or RR Power Window Is Inoperative (D4 Cont. & D5)

Courtesy of FORD MOTOR CO.

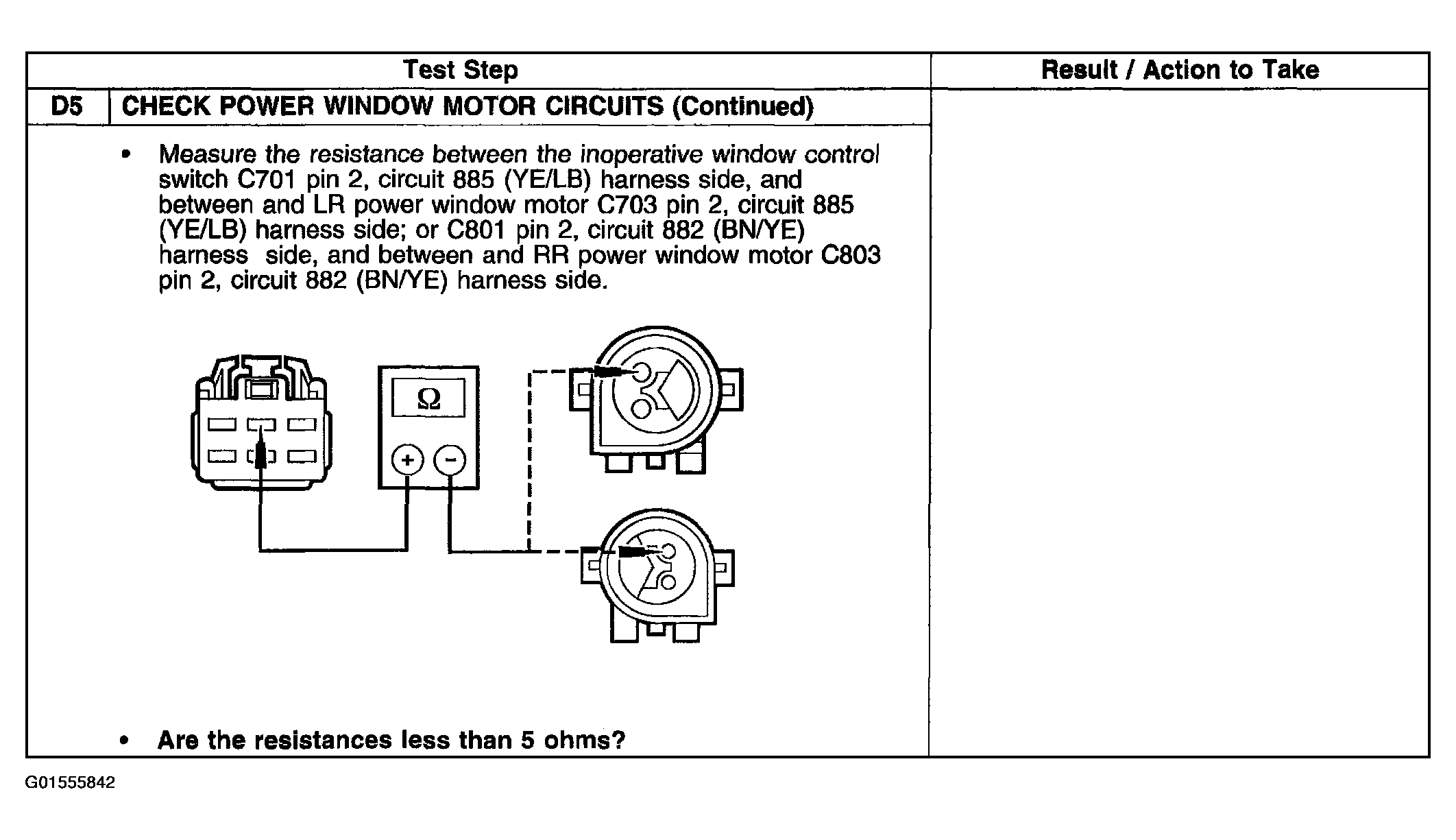

Fig 5: Pinpoint Test D: LR Or RR Power Window Is Inoperative (D5 Cont.)

Courtesy of FORD MOTOR CO.
