Seat Track - With Seat Integrated Restraints (SIR): Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: The safety belt buckle pretensioner and safety belt retractor pretensioner are pyrotechnic devices. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner.
NOTE: There are no user replaceable parts on the power seat track. Install a new unit.

All seats

  1. Disconnect the battery ground cable (14301) and wait at least one minute. Refer to BATTERY, MOUNTING AND CABLES .
    WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

    The side impact sensors are located at or near the base of the B-pillar.

    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

  2. Deactivate the supplemental restraint system (SRS). Refer to Supplemental Restraint System (SRS) Deactivation and Reactivation .
    WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
  3. Remove the affected seat. Refer to FRONT SEAT - With Seat Integrated Restraints (SIR) .
    WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.

    All seats

  4. Remove the seat adjuster control knobs, covers and the seat side trim panel screws.
    1. Remove the seat recliner lever cover screw and cover.
    2. Pull to remove the lumbar control knob.
    3. Remove the three seat side trim panel attachment screws.
      Fig 1: Removing Seat Adjuster Control Knobs, Covers And Seat Side Trim Panel Screws
      G01555608Courtesy of FORD MOTOR CO.
  5. Remove the two screws securing the lumbar adjustor control to the seat track riser.
    • Push lumbar adjuster control inward to provide clearance for trim panel removal.
      Fig 2: Removing Two Screws Securing Lumbar Adjustor Control To Seat Track Riser
      G01555609Courtesy of FORD MOTOR CO.

    Heated seats

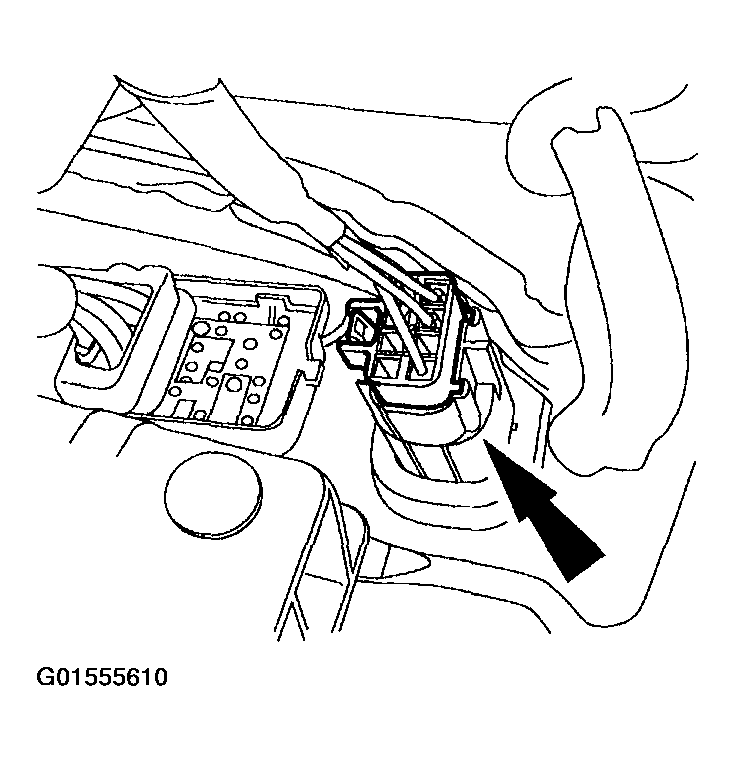

  6. Disconnect the heated seat switch electrical connector.
    Fig 3: Disconnecting Heated Seat Switch Electrical Connector
    G01555610Courtesy of FORD MOTOR CO.
  7. Pull the rearward lower corner of the side shield to disengage the metal retaining clip.
  8. Remove side shield cover.
    CAUTION: Bend the side shield slightly to make sure the shield is not scratched by the recliner lever.

    Power seats

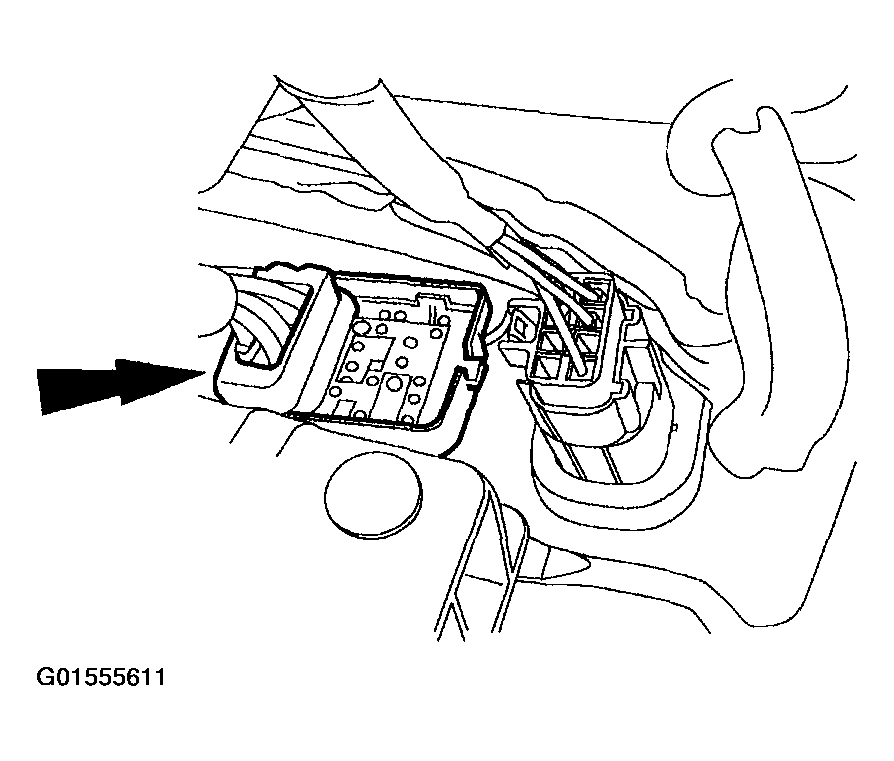

  9. Disconnect the seat control switch electrical connector.
    Fig 4: Disconnecting Seat Control Switch Electrical Connector
    G01555611Courtesy of FORD MOTOR CO.

    All seats

  10. Remove the seat cushion assembly. Refer to FRONT SEAT CUSHION - With Seat Integrated Restraints (SIR) .
  11. Remove the seat backrest assembly. Refer to FRONT SEAT BACKREST - With Seat Integrated Restraints (SIR) .

    Manual seats

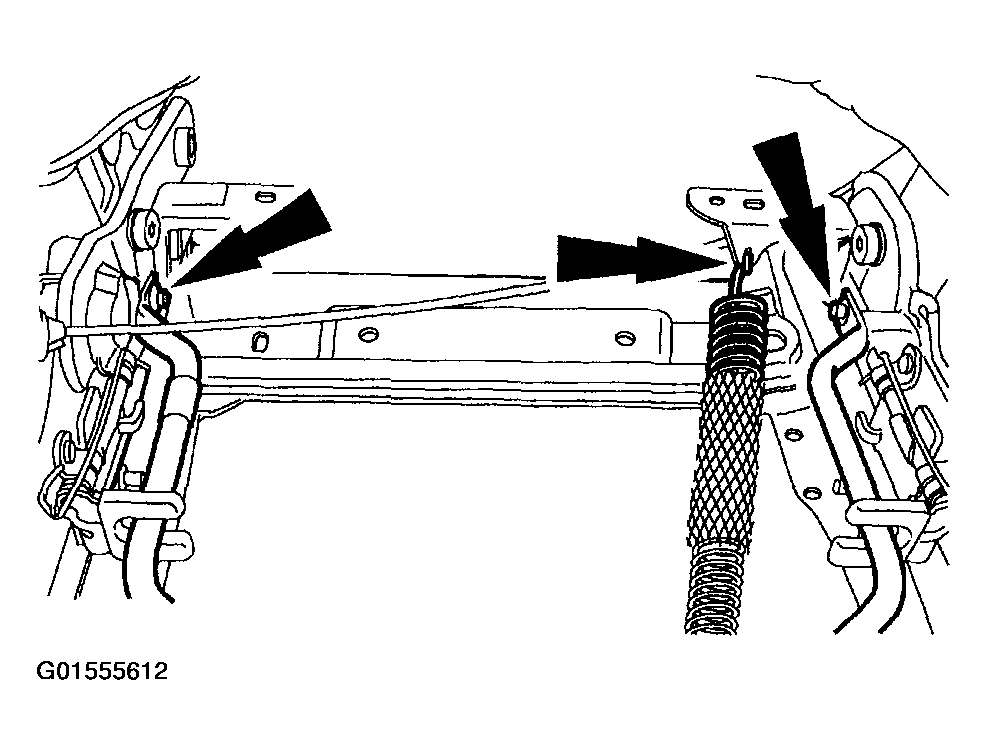

  12. Detach the seat assist spring and remove two pushclips securing the manual fore/aft adjuster bar.
    NOTE: Do not reuse pushclips. Install new units.
    Fig 5: Removing Pushclips Securing Manual Fore/Aft Adjuster Bar
    G01555612Courtesy of FORD MOTOR CO.

    Power seats

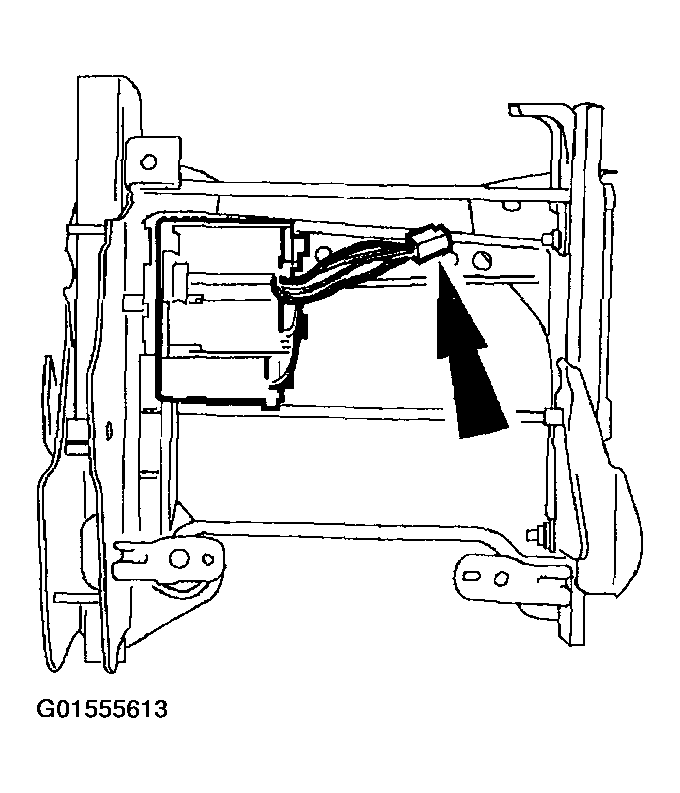

  13. Disconnect the seat actuator motor electrical connector.
    Fig 6: Disconnecting Seat Actuator Motor Electrical Connector
    G01555613Courtesy of FORD MOTOR CO.
  14. Remove the seven screws (four outboard side, three inboard side) securing the seat adjuster tracks to the seat pedestal frame.
    Fig 7: Removing Screws (Outboard Side And Inboard Side)
    G01555614Courtesy of FORD MOTOR CO.
