Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble the seat cushion. Refer to REAR SEAT CUSHION - Excursion, Second Row .
  2. Remove the bolt.

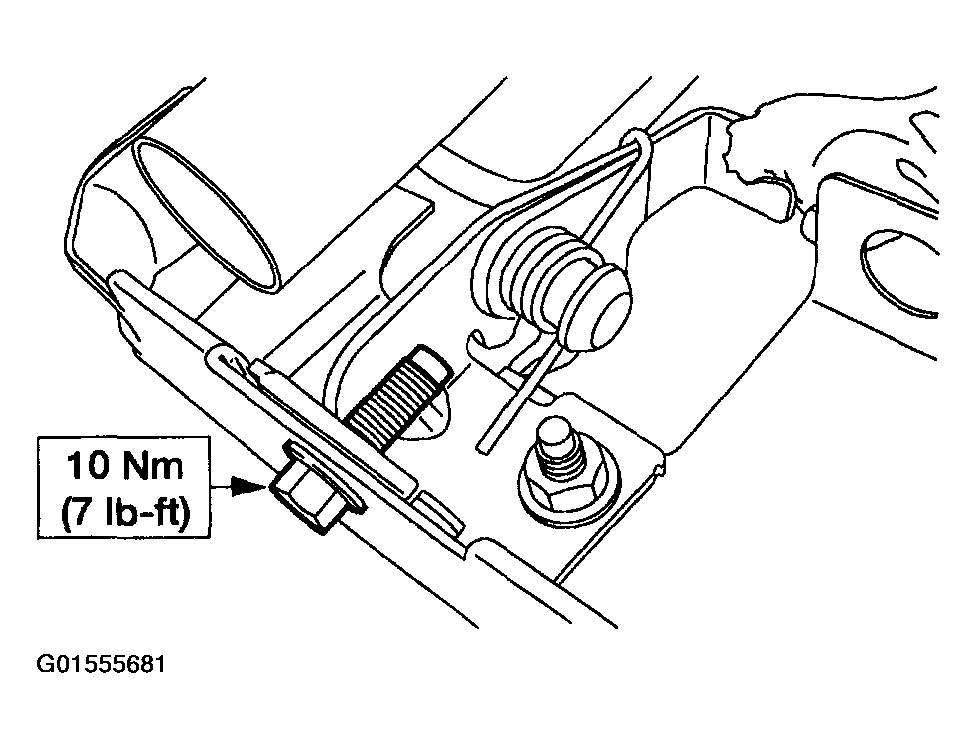

    Fig 1: Removing Bolt
    G01555681Courtesy of FORD MOTOR CO.
  3. Remove the nut.

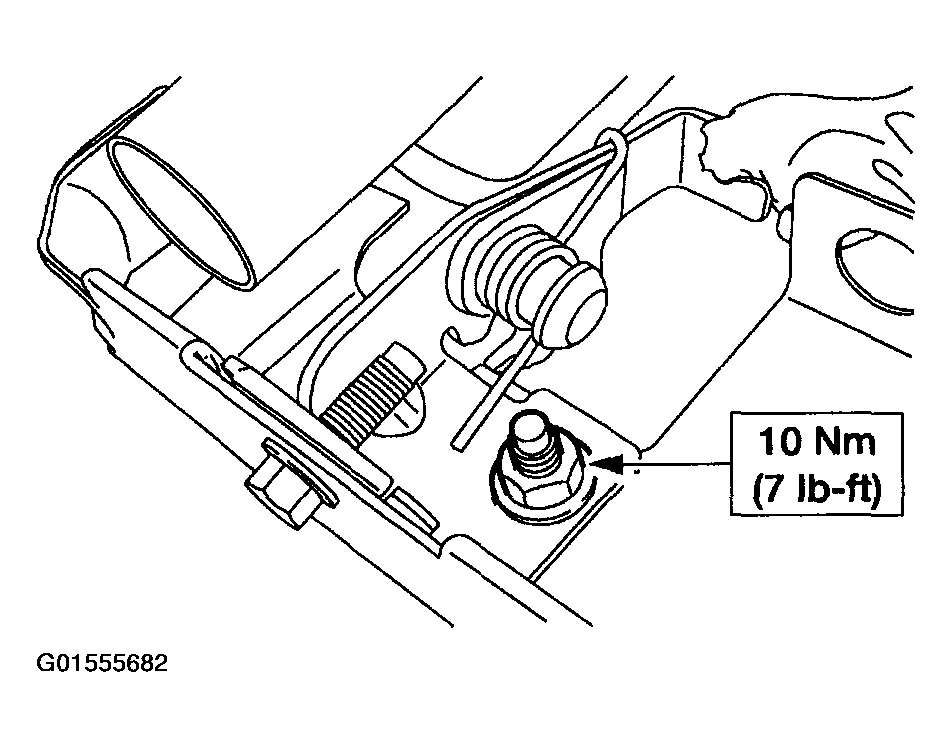

    Fig 2: Removing Nut
    G01555682Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
