Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat backrest. Refer to REAR SEAT BACKREST - Excursion, Second Row .
Remove the seat handle clip and handle.

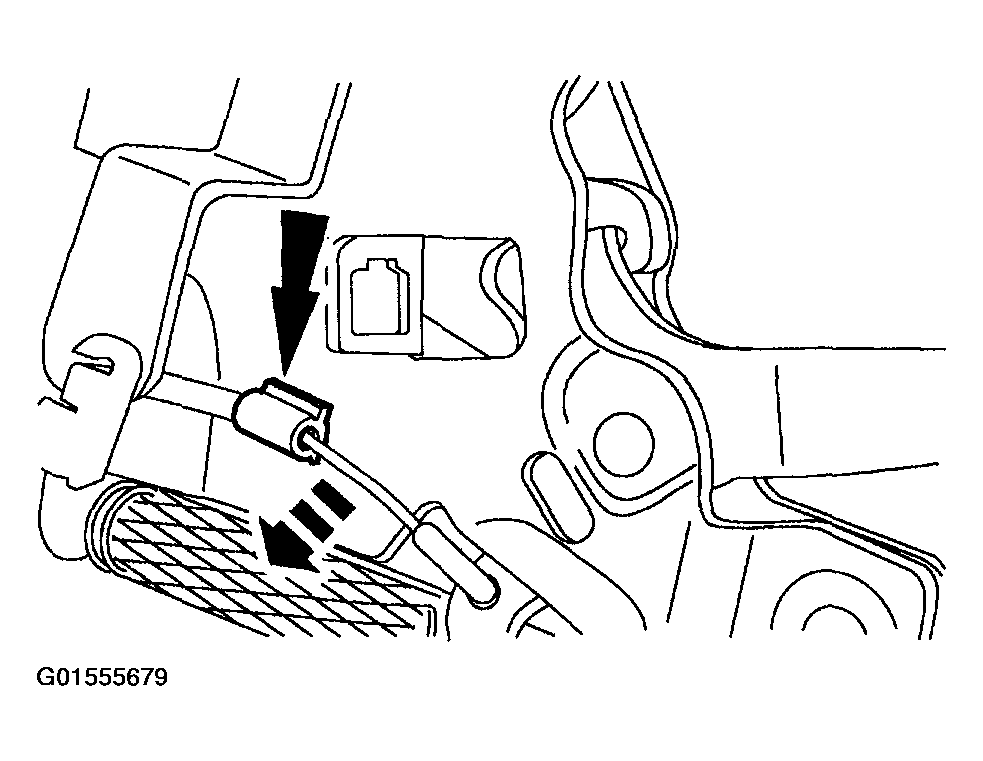

Fig 1: Removing Seat Handle Clip And Handle
Courtesy of FORD MOTOR CO.
Unclip the J-clips.

Fig 2: Uncliping J-Clips
Courtesy of FORD MOTOR CO.
Remove the spring pin and screw.

Fig 3: Removing Spring Pin And Screw
Courtesy of FORD MOTOR CO.
Remove the seat backrest cable retaining clip and the cable.

Fig 4: Removing Seat Backrest Cable Retaining Clip And Cable
Courtesy of FORD MOTOR CO.
Position the upholstery and pad, then remove the bolts.

Fig 5: Removing Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
