Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. Refer to FRONT SEAT BACKREST - Captain's Chair and 40 Percent .
  2. Release the J-clip.

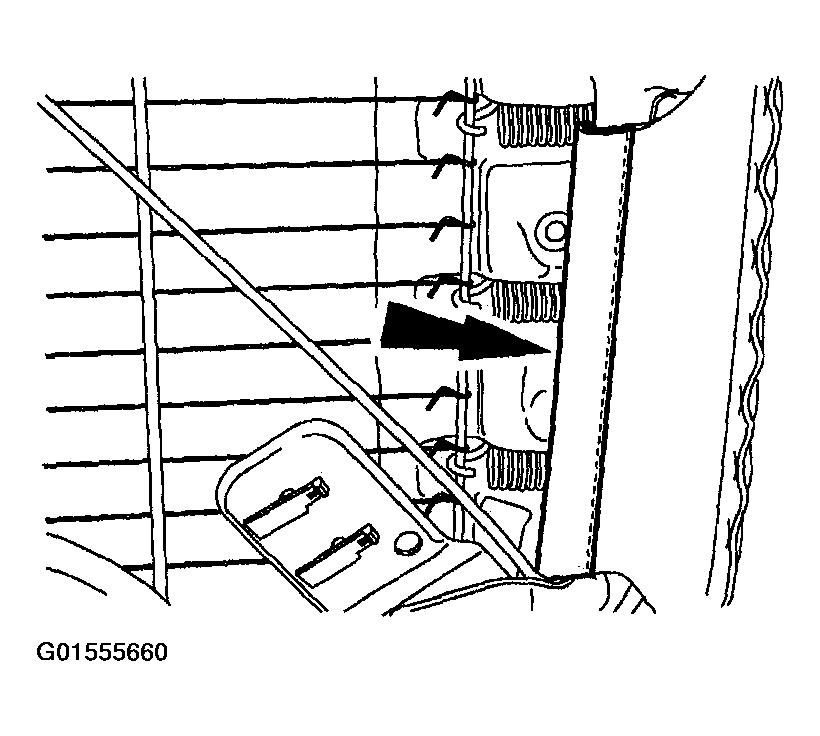

    Fig 1: Releasing J-Clip
    G01555660Courtesy of FORD MOTOR CO.
  3. Remove the seat latch bolts, and remove latch.

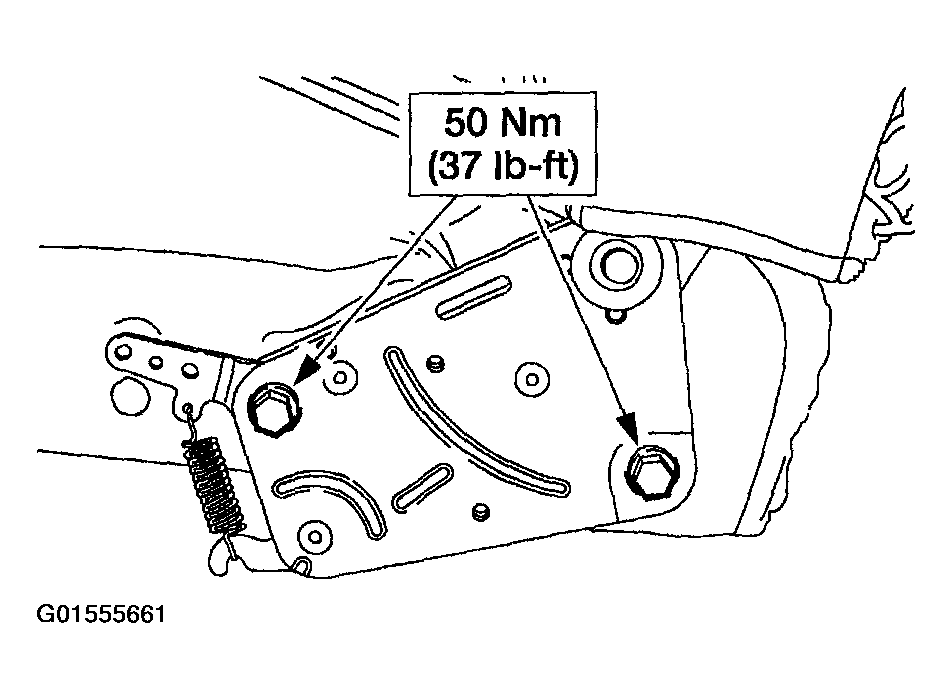

    Fig 2: Removing Seat Latch Bolts
    G01555661Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
