Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All seats

Remove the seat. Refer to FRONT SEAT - Captain's Chair and 40 Percent .
Remove the lumbar knob.

Fig 1: Removing Lumbar Knob
Courtesy of FORD MOTOR CO.
Remove the seat backrest lever.

Fig 2: Removing Seat Backrest Lever
Courtesy of FORD MOTOR CO.
Remove the screws.

Fig 3: Removing Screws
Courtesy of FORD MOTOR CO.
Remove the pin-type retainer.

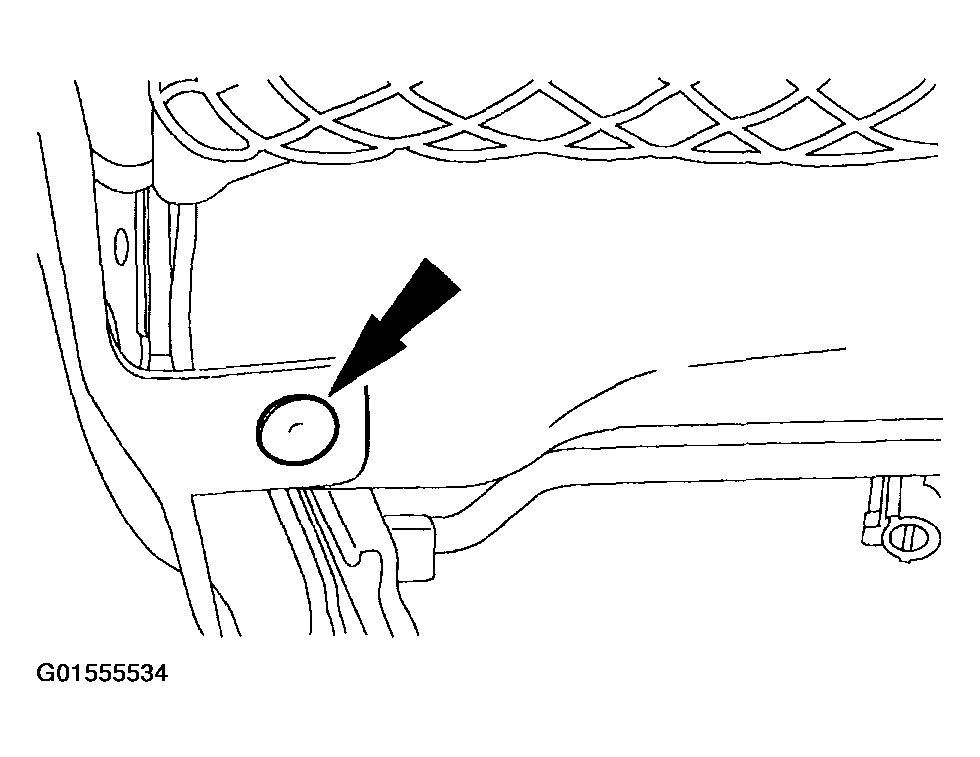

Fig 4: Removing Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Remove the screws.

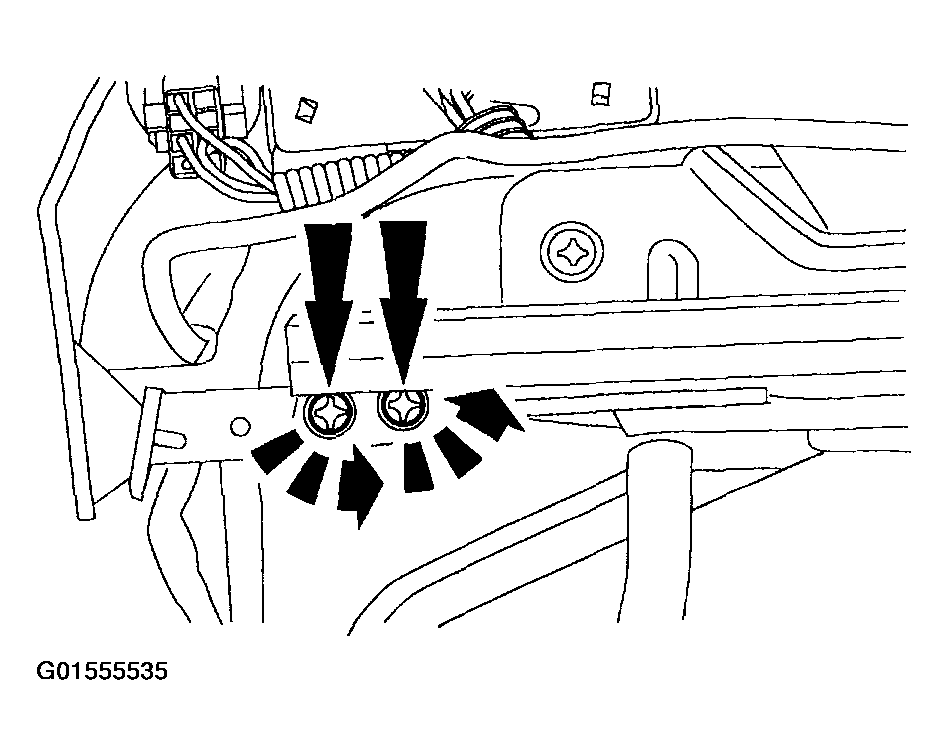

Fig 5: Removing Screws
Courtesy of FORD MOTOR CO.
Remove the screws.

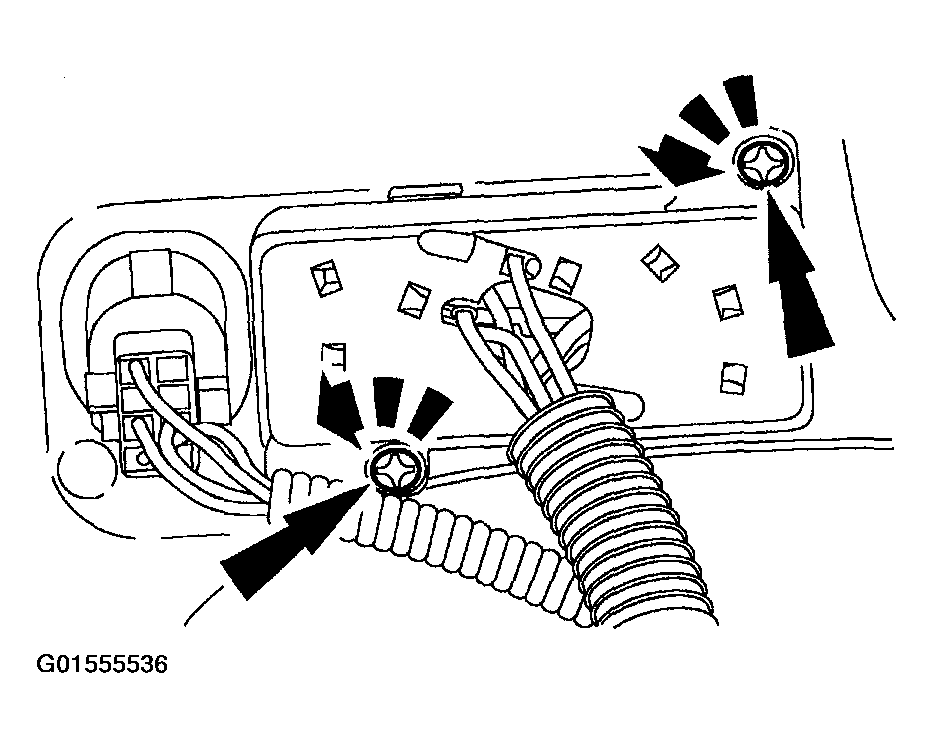

Fig 6: Removing screws
Courtesy of FORD MOTOR CO.

Vehicles with heated seats
Disconnect heated seat switch electrical connector.

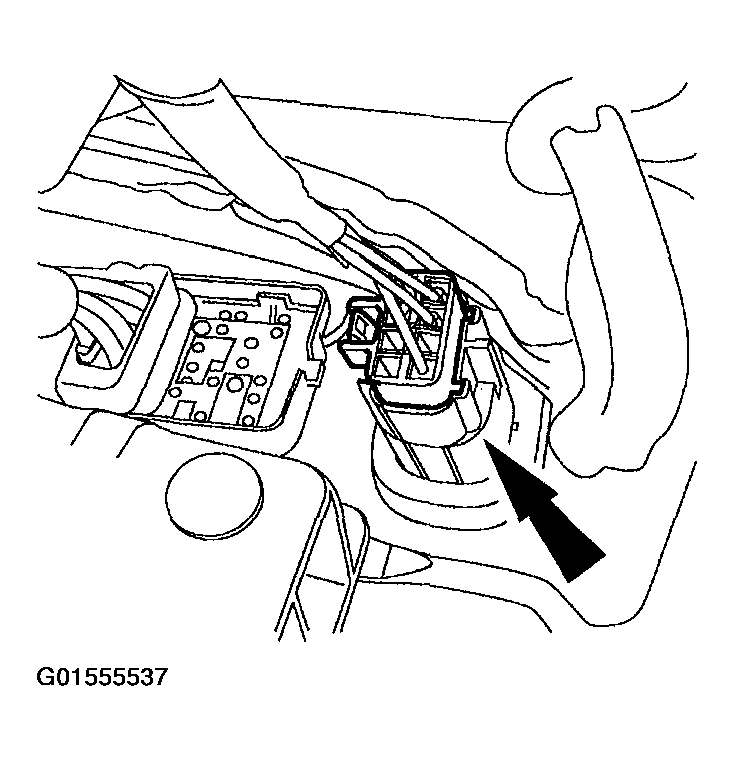

Fig 7: Disconnecting Heated Seat Switch Electrical Connector
Courtesy of FORD MOTOR CO.

All seats
Disconnect the electrical connector and remove the seat control switch.

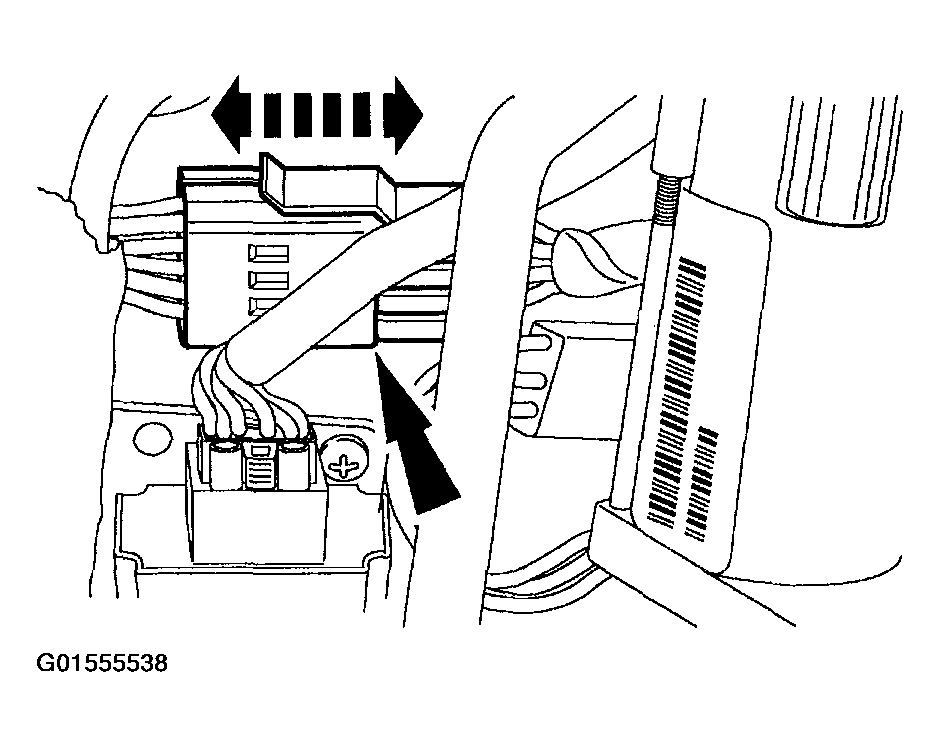

Fig 8: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
