Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to REAR SEAT - Excursion, Second Row .
  2. Remove the access covers.
    Fig 1: Removing Access Covers
    G01555550Courtesy of FORD MOTOR CO.
  3. Remove the screws.
    Fig 2: Removing Screws
    G01555551Courtesy of FORD MOTOR CO.
  4. Remove the bolts from both sides of the armrest.

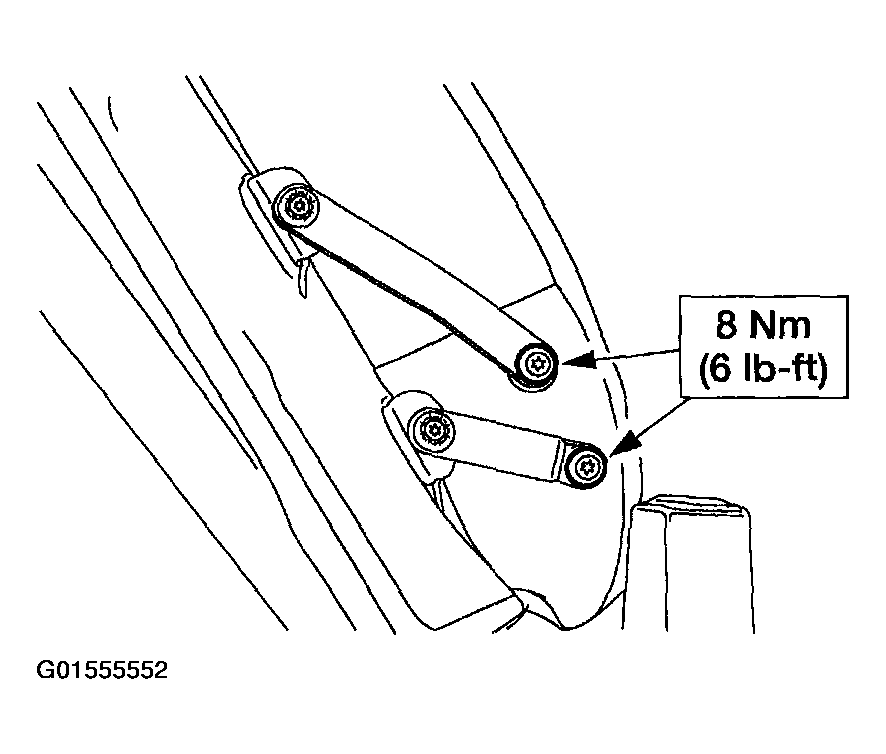

    Fig 3: Removing Bolts From Both Sides Of Armrest
    G01555552Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
  6. Make sure the safety belt and the belt buckle are routed through the access hole in the seat cushion.
    Fig 4: View Of Belt And Belt Buckle
    G01555553Courtesy of FORD MOTOR CO.
