Rear Seat Cushion - Excursion, Second Row: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to REAR SEAT - Excursion, Second Row .
    NOTE: The 60 percent seat is shown, the 40 percent seat is similar.
  2. Remove the four nuts.

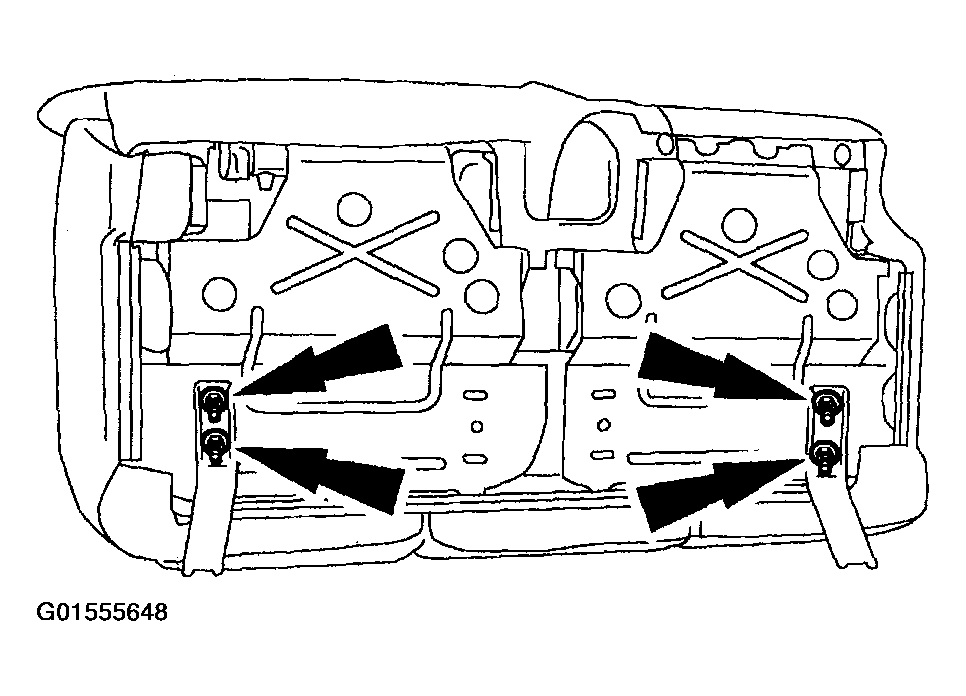

    Fig 1: Removing Four Nuts
    G01555648Courtesy of FORD MOTOR CO.
