Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the bottom of the seat backrest, push the seat backrest upward, then pull the bottom outward and remove from vehicle.

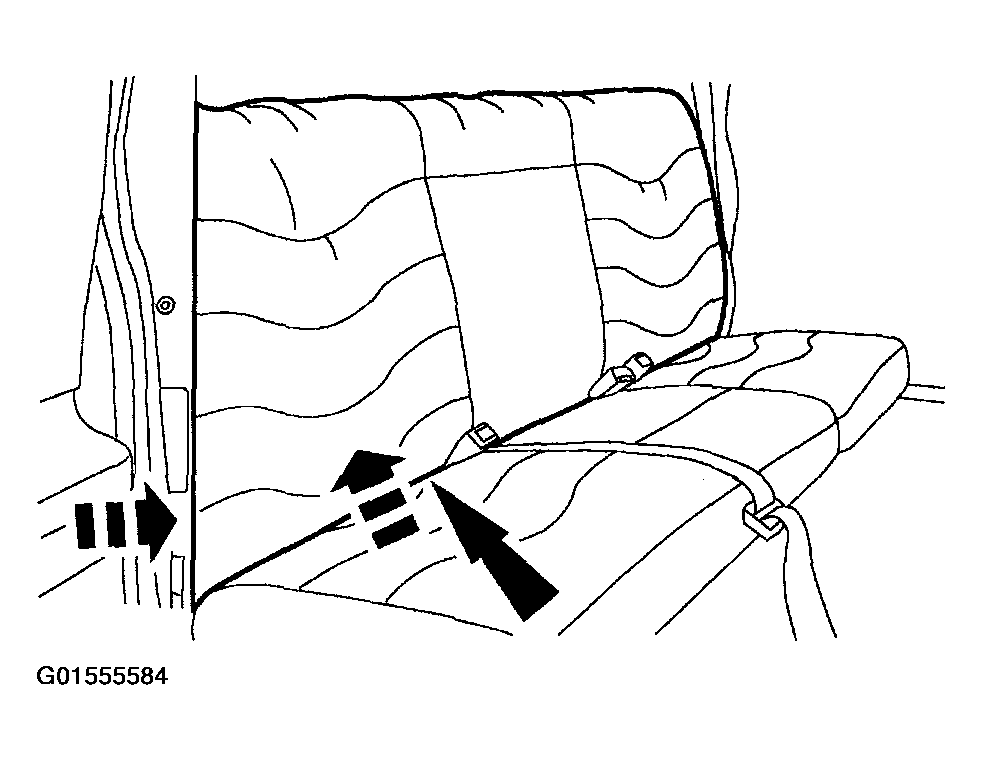

    Fig 1: Pulling Bottom
    G01555584Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
    NOTE: Make sure all seat backrest hooks are in place.
  3. Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .
