Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat. Refer to REAR SEAT - Excursion, Second Row .
Remove the seat cushion handle.

Fig 1: Removing Seat Cushion Handle
Courtesy of FORD MOTOR CO.

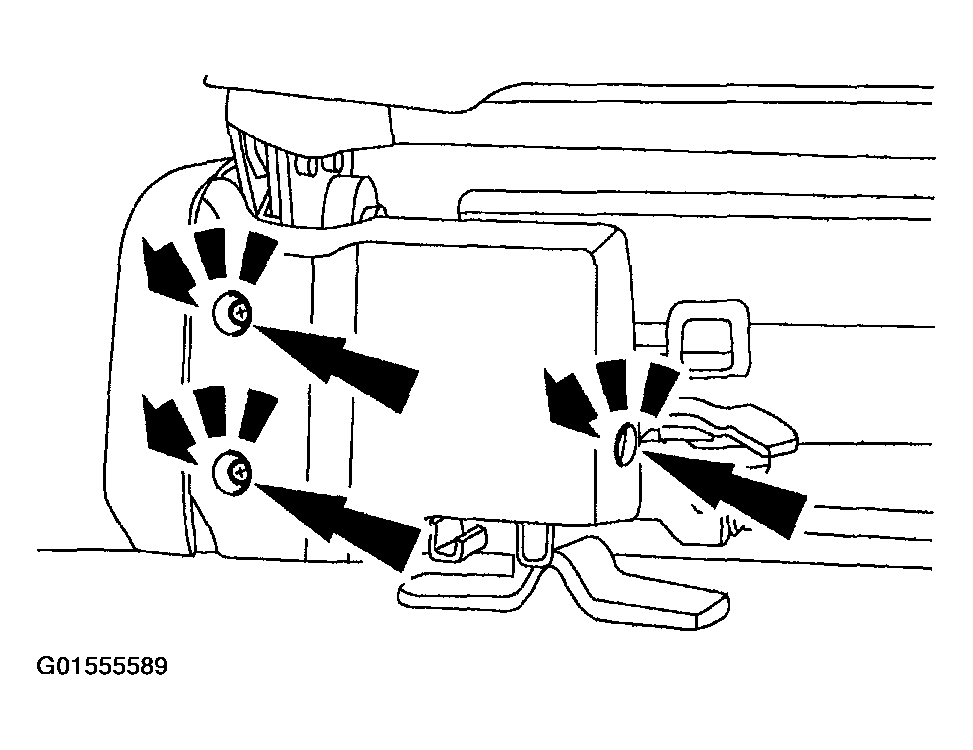

Remove the screws and the left trim cover.

Fig 2: Removing Screws And Left Trim Cover
Courtesy of FORD MOTOR CO.
Remove the screws and the trim cover.

Fig 3: Removing Screws And Trim Cover
Courtesy of FORD MOTOR CO.
Remove the right trim cover.

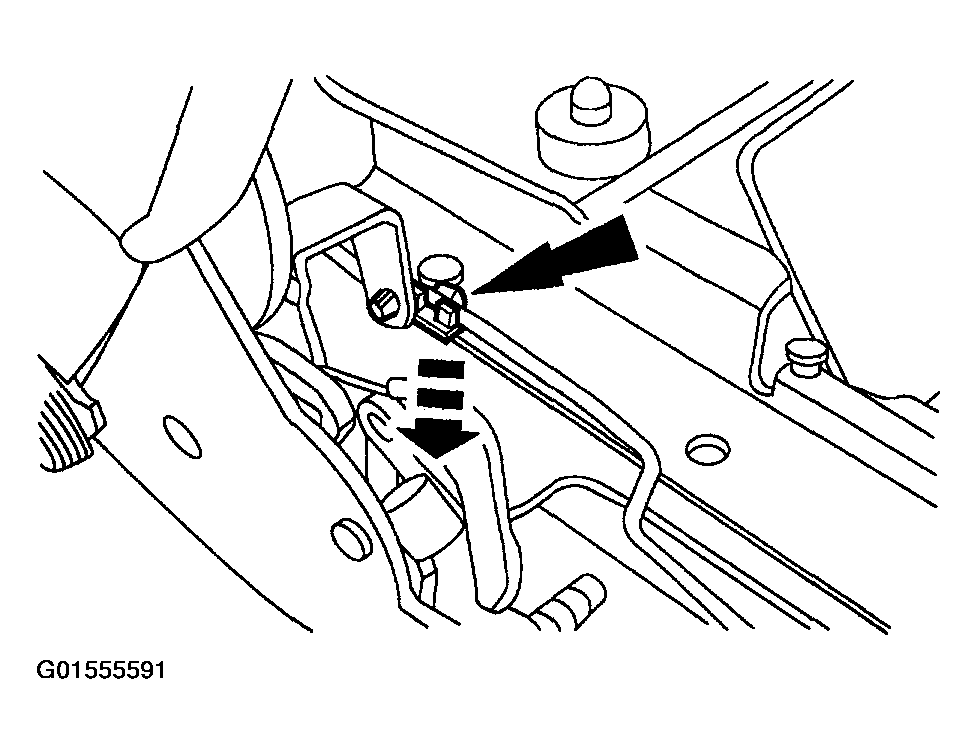

Detach the right seat track linkage clip.

Fig 4: Detaching Right Seat Track Linkage Clip
Courtesy of FORD MOTOR CO.

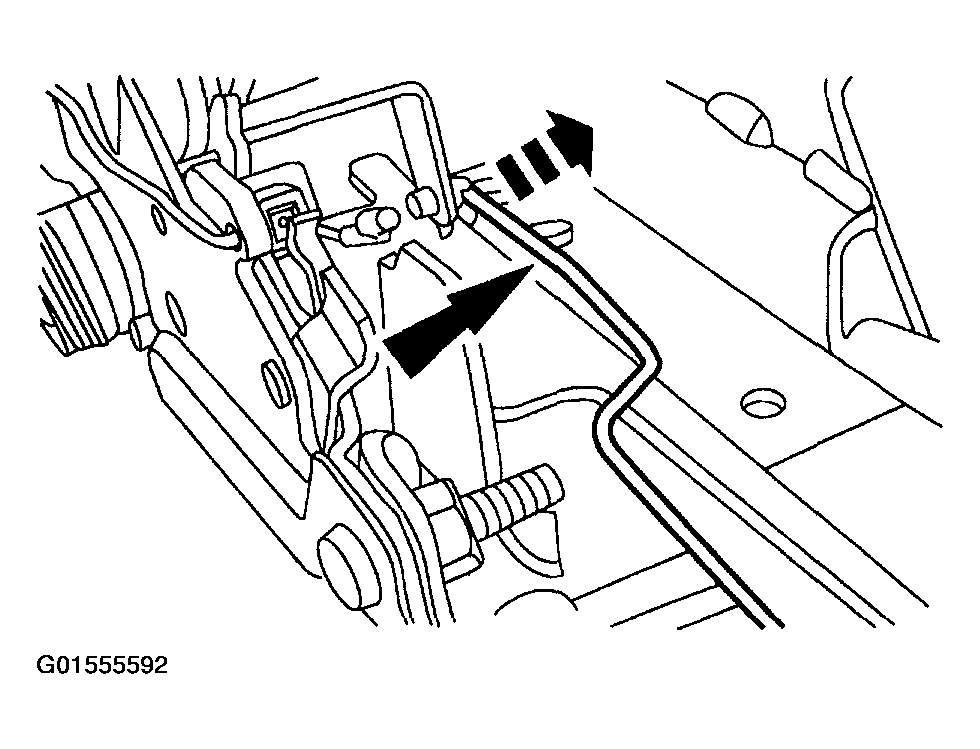

Remove the right seat track linkage.

Fig 5: Removing Right Seat Track Linkage
Courtesy of FORD MOTOR CO.

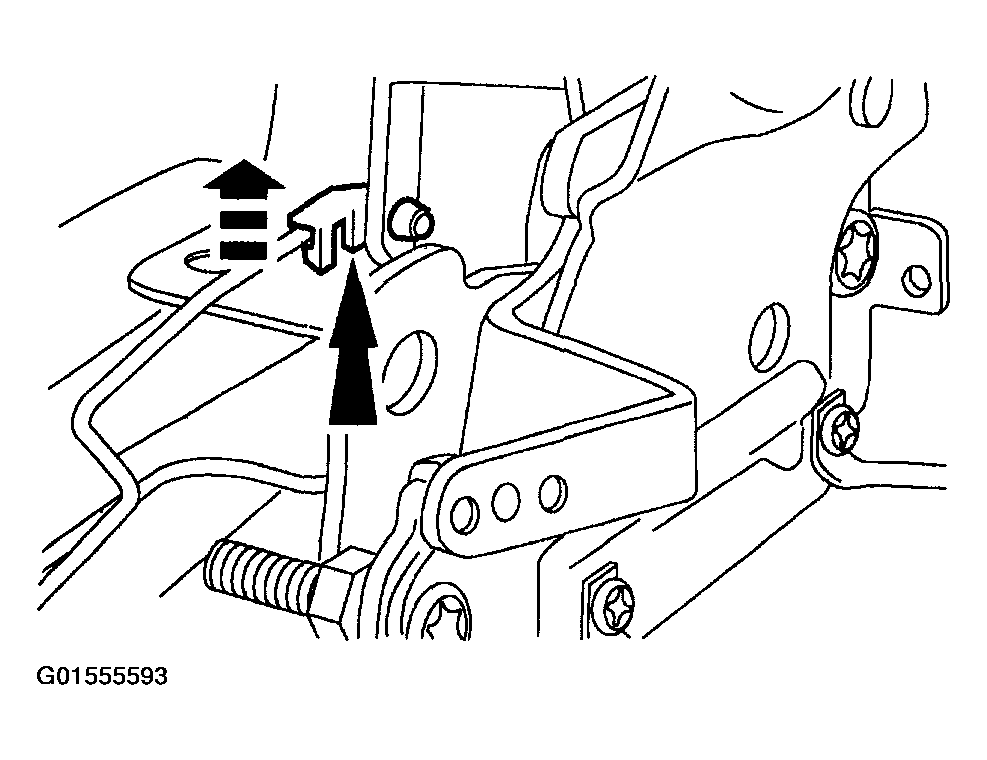

Unclip the left seat track linkage clip and remove the linkage.

Fig 6: Uncliping Left Seat Track Linkage Clip
Courtesy of FORD MOTOR CO.
Release the cable from four cable clips (two shown).

Fig 7: Releasing Cable From Four Cable Clips
Courtesy of FORD MOTOR CO.

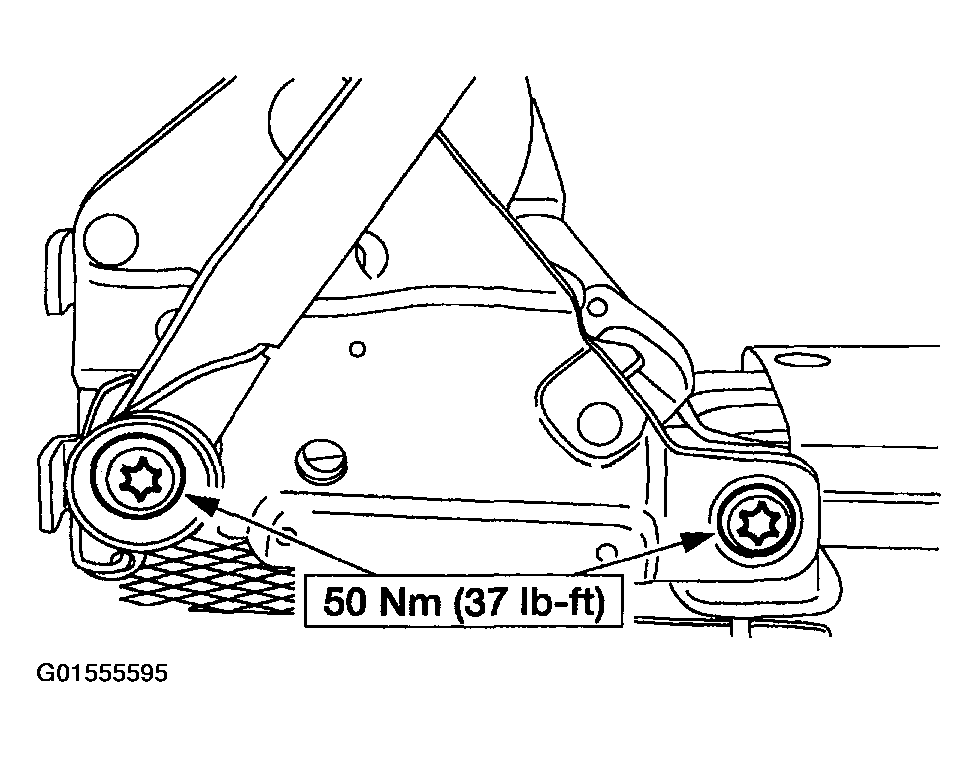

Remove the four bolts.

Fig 8: Removing Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
