Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to REAR SEAT - Bench, Crew Cab .
  2. Separate the seat cover J-clip.
    Fig 1: Removing Seat Cover J-Clip
    G01555585Courtesy of FORD MOTOR CO.
  3. Pull the seat covering to access seat back retaining bolts.

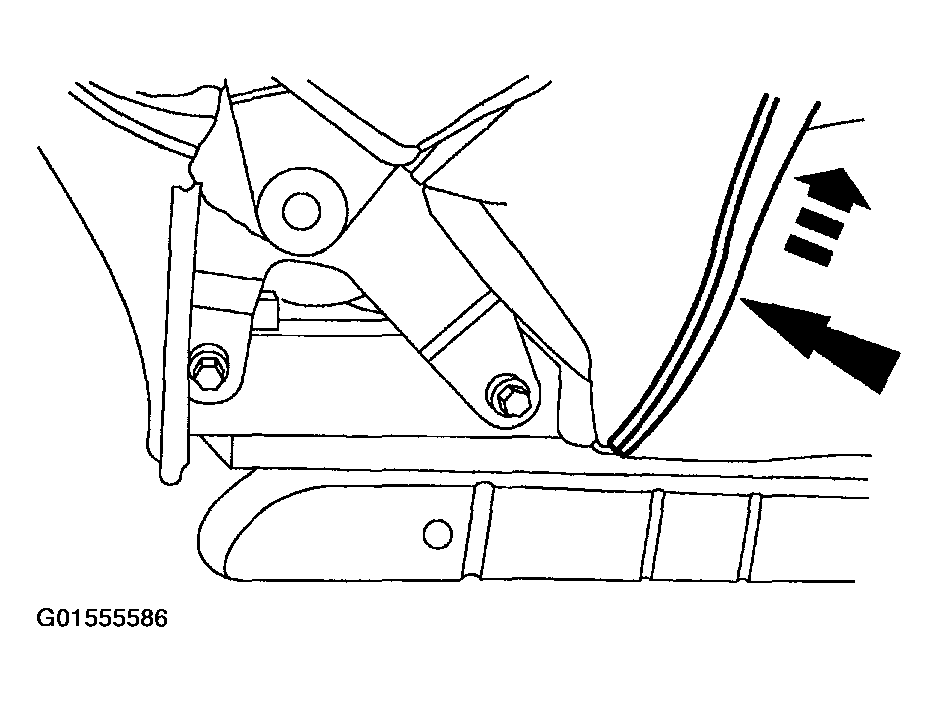

    Fig 2: Pulling Seat Covering To Access Seat Back Retaining Bolts
    G01555586Courtesy of FORD MOTOR CO.
  4. Remove the seat back bolts.

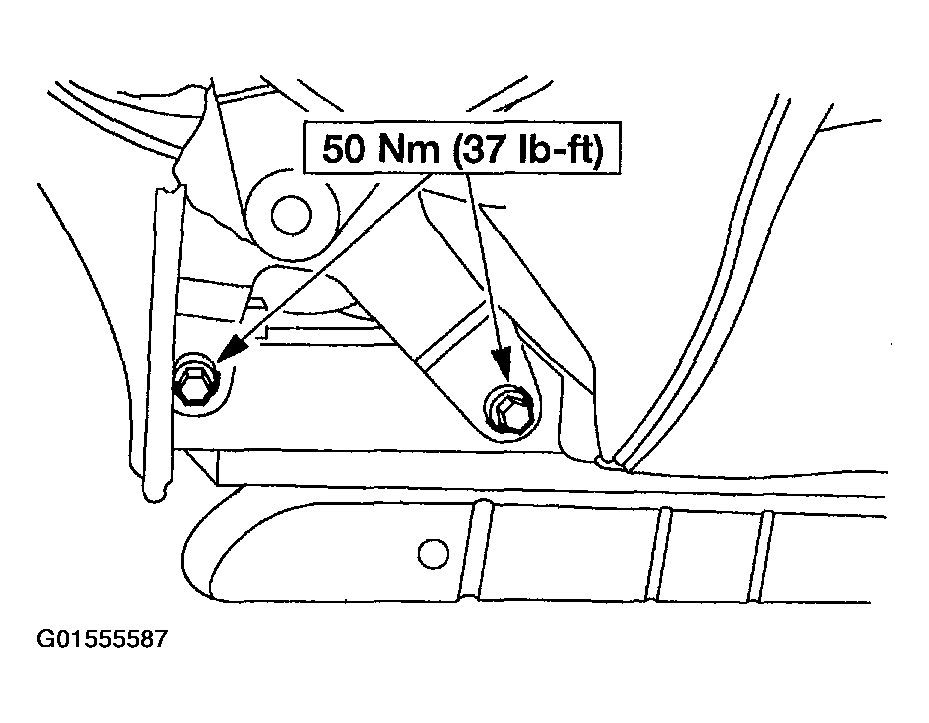

    Fig 3: Removing Seat Back Bolts
    G01555587Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
