Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

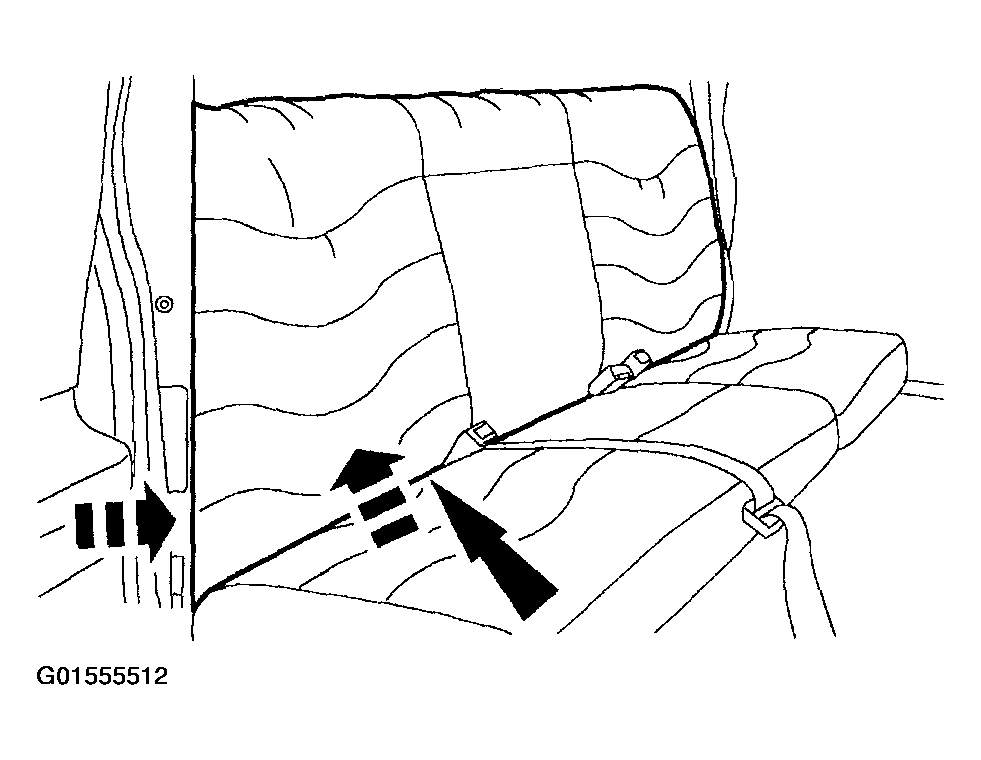

From the bottom of the seat backrest, push the seat backrest upward, then pull the bottom outward and remove from vehicle.

Fig 1: Pulling Bottom
Courtesy of FORD MOTOR CO.

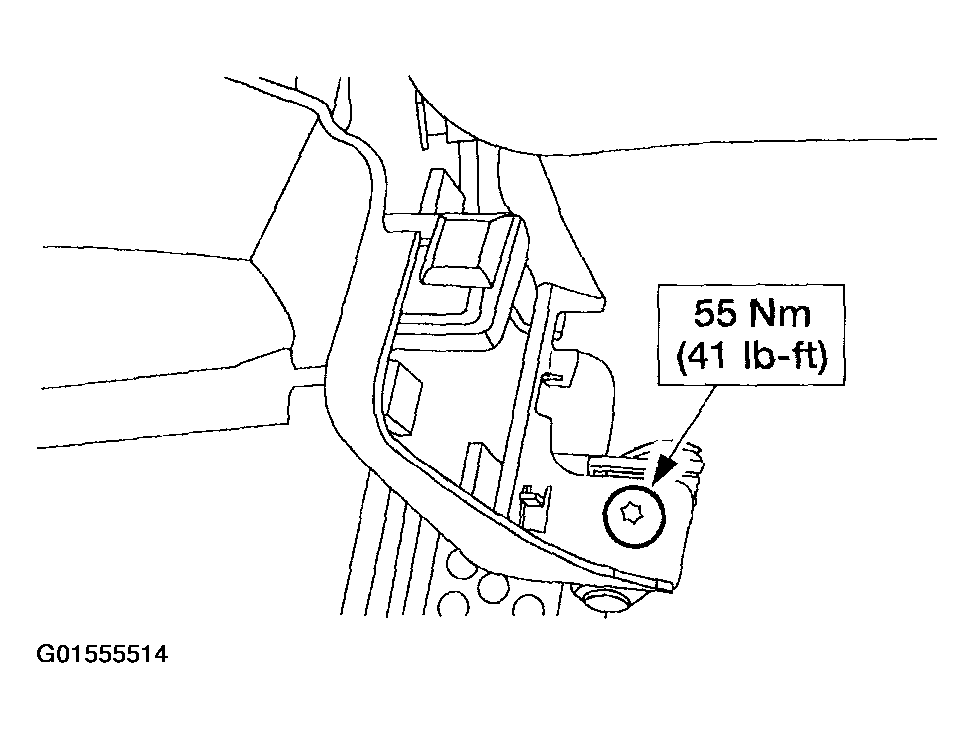

Position the seat cushions back, then remove the bolts.

Fig 2: Positioning Seat Cushions Back
Courtesy of FORD MOTOR CO.
Remove the bolt.

Fig 3: Removing Bolt
Courtesy of FORD MOTOR CO.

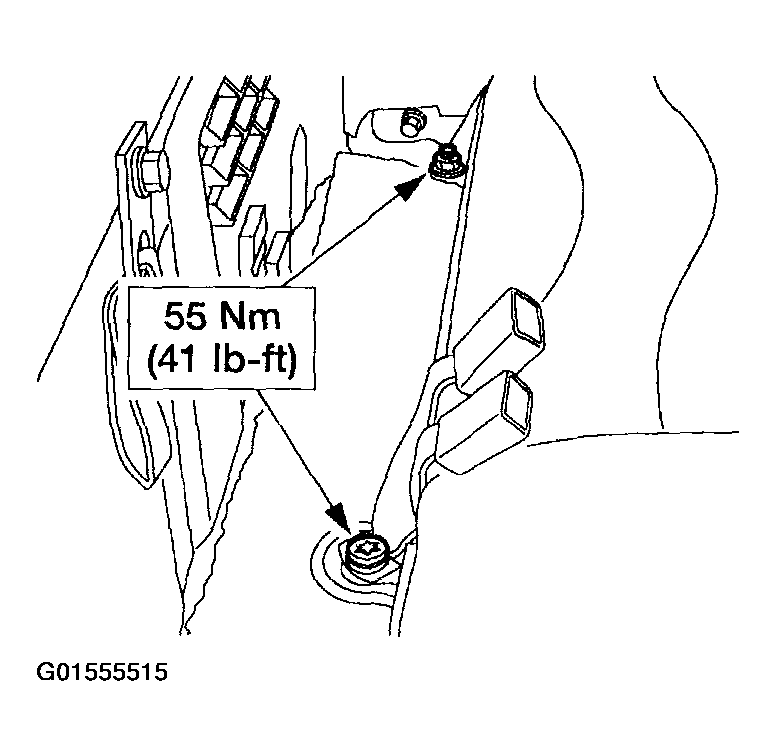

Remove the nut and bolt.

Fig 4: Removing Nut And Bolt
Courtesy of FORD MOTOR CO.
Remove the nut.

Fig 5: Removing Nut
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .
- Make sure the safety belt webbing is not twisted prior to installation.
