Rear Seat - Excursion, Second Row: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat rearward and remove the trim cover pin-type retainers and remove covers, and remove the bolts.
    NOTE: The right-side seat is shown. The left-side seat is similar.

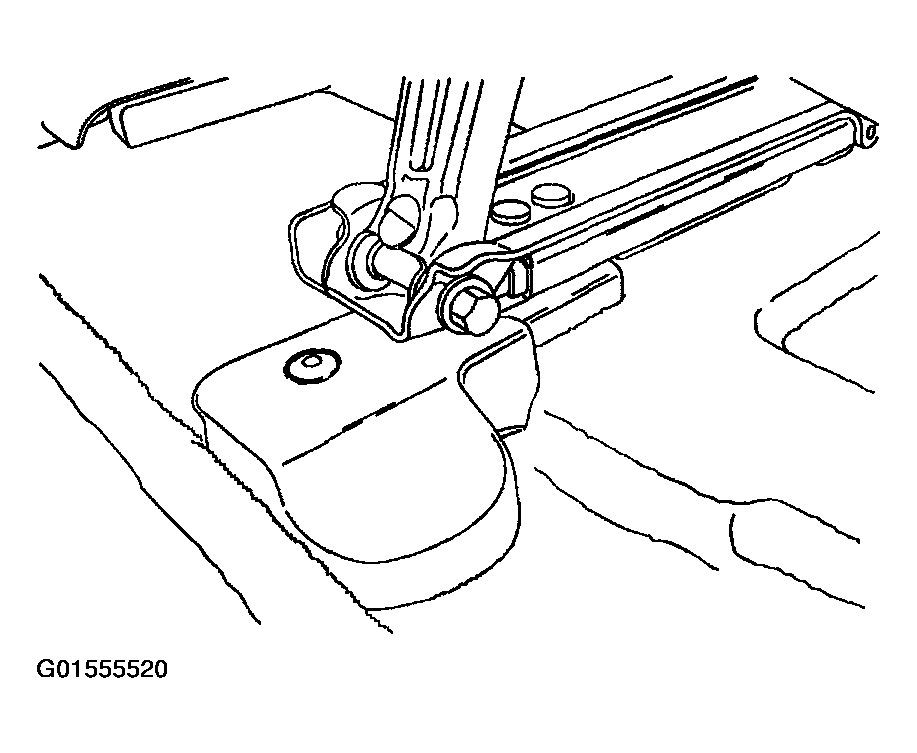

    Fig 1: Removing Trim Cover Pin-Type Retainers And Covers
    G01555520Courtesy of FORD MOTOR CO.
  2. Position the seat forward and remove the bolts.

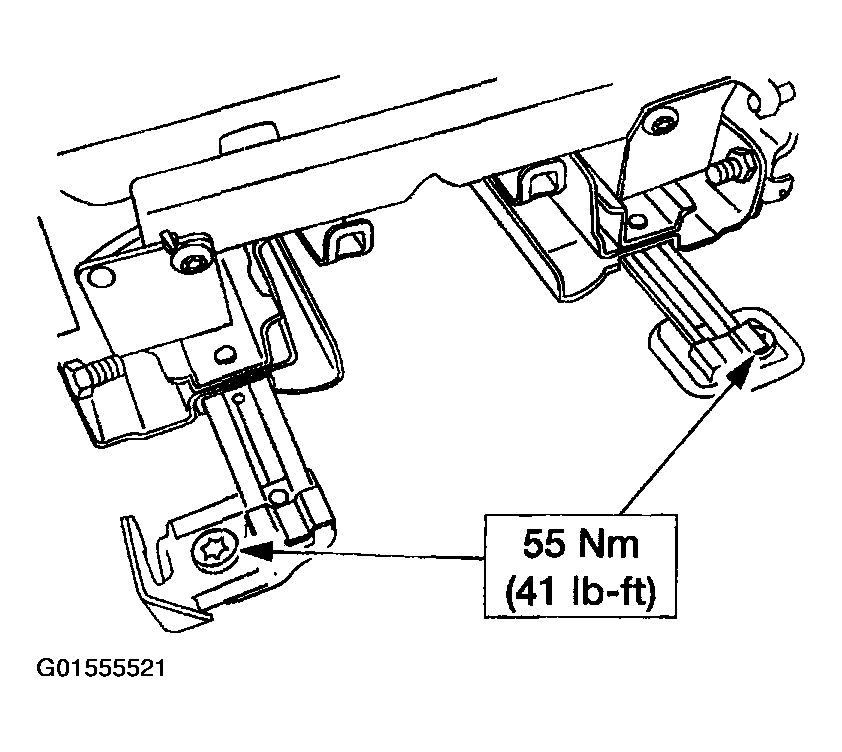

    Fig 2: Removing Bolts
    G01555521Courtesy of FORD MOTOR CO.
