Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retainers and the rear seat.
    NOTE: Removing the rear seat requires more than one technician.

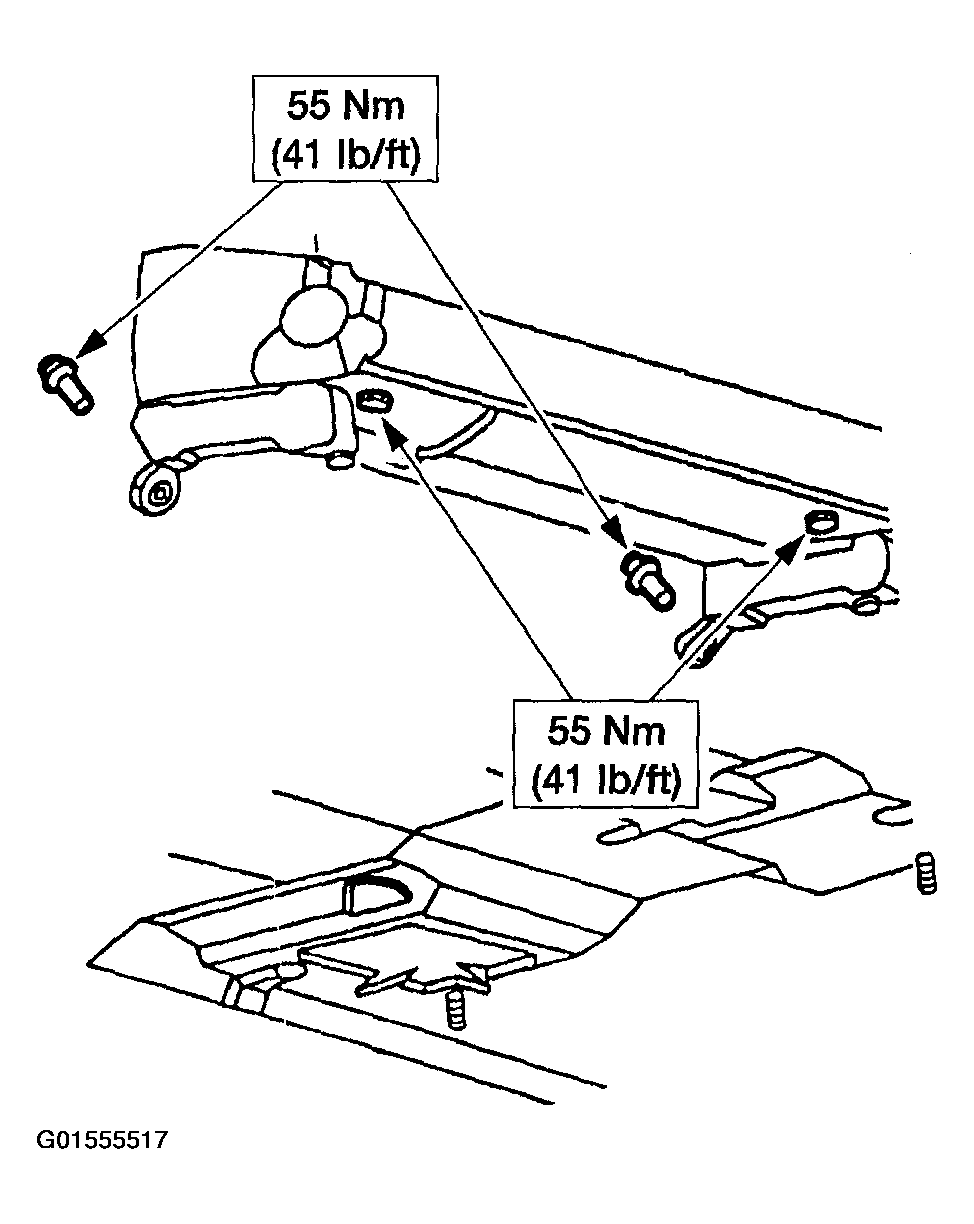

    Fig 1: Removing Retainers And Rear Seat
    G01555517Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
    NOTE: When installing the seat, tighten the two front mounting bolts, then the rear two mounting nuts.
  3. Check the active restraint system for correct operation.
    • Make sure the safety belt is not twisted prior to installation.
