Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to FRONT SEAT - Captain's Chair and 40 Percent .
  2. Disconnect the electrical connector.

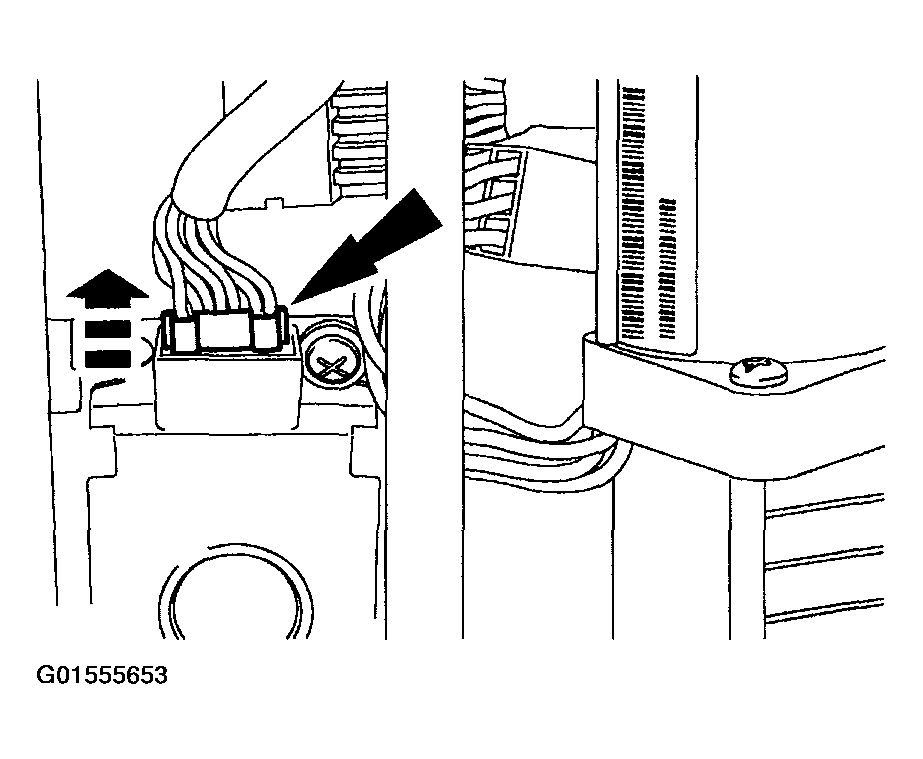

    Fig 1: Disconnecting Electrical Connector
    G01555653Courtesy of FORD MOTOR CO.
  3. Release the seat module locking tabs then remove the seat module.

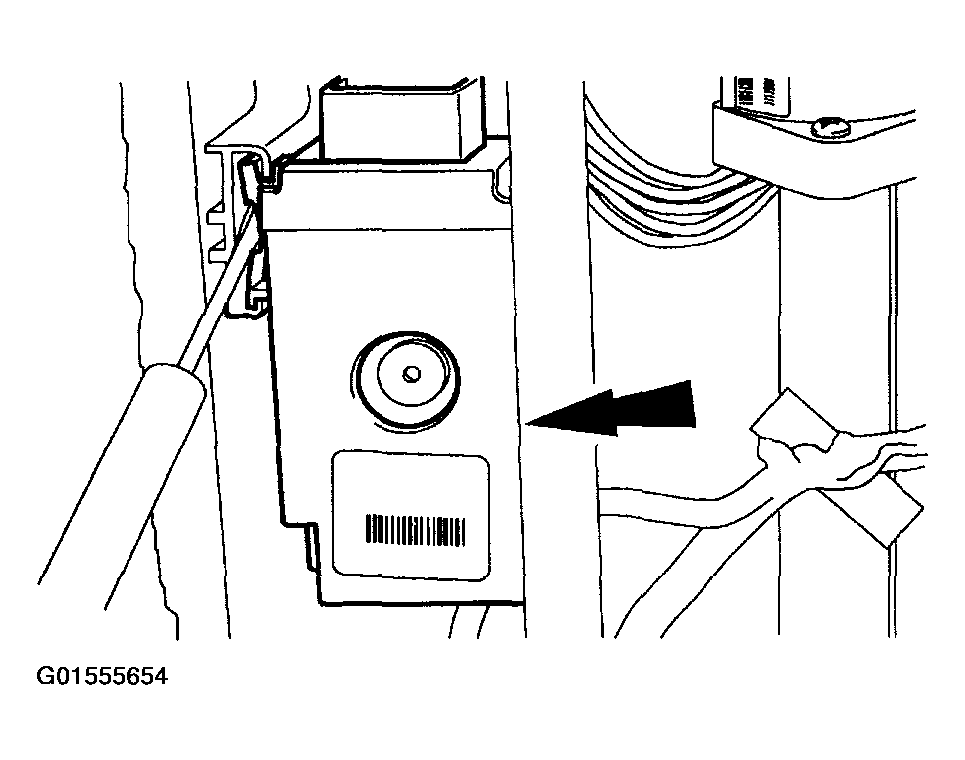

    Fig 2: Releasing Seat Module Locking Tabs
    G01555654Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
