Front Seat Cushion - With Seat Integrated Restraints (SIR): Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generated combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: The safety belt buckle pretensioner and safety belt retractor pretensioner are pyrotechnic devices. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner.
WARNING: The safety belt buckle pretensioner and safety belt retractor pretensioner are pyrotechnic devices. Never probe pretensioner electrical connectors. Doing so could result in pretensioner or air bag deployment and could result in personal injury.

All seats

  1. Disconnect the battery ground cable (14301) and wait at least one minute. Refer to BATTERY, MOUNTING AND CABLES .
    WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

    The side impact sensors are located at or near the base of the B-pillar.

    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

  2. Deactivate the supplemental restraint system (SRS). Refer to Supplemental Restraint System (SRS) Deactivation and Reactivation .
    WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
  3. Remove the affected seat. Refer to FRONT SEAT - With Seat Integrated Restraints (SIR) .
    WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
  4. Remove the seat adjuster control knobs, covers and the seat side trim panel screws.
    1. Remove the seat recliner lever cover screw and cover.
    2. Pull to remove the lumbar control knob.
    3. Remove the three seat side trim panel attachment screws.
      Fig 1: Removing Three Seat Side Trim Panel Attachment Screws
      G01555629Courtesy of FORD MOTOR CO.
  5. Remove the two screws securing the lumbar adjustor control to the seat track riser.
    • Push lumbar adjuster control inward to provide clearance for trim panel removal.
      Fig 2: Removing Screws Lumbar Adjustor Control To Seat Track Riser
      G01555630Courtesy of FORD MOTOR CO.
  6. Pull the rearward lower corner of the side shield to disengage the metal retaining clip.
  7. Remove the side trim cover.
    CAUTION: Bend the side shield slightly to insure the shield is not scratched by the recliner lever.

    Heated seats

  8. Disconnect the heater switch electrical connector.
  9. Disconnect the seat heater mats and the heated seat module electrical connectors. Release the electrical connectors from their cushion pan attachments.

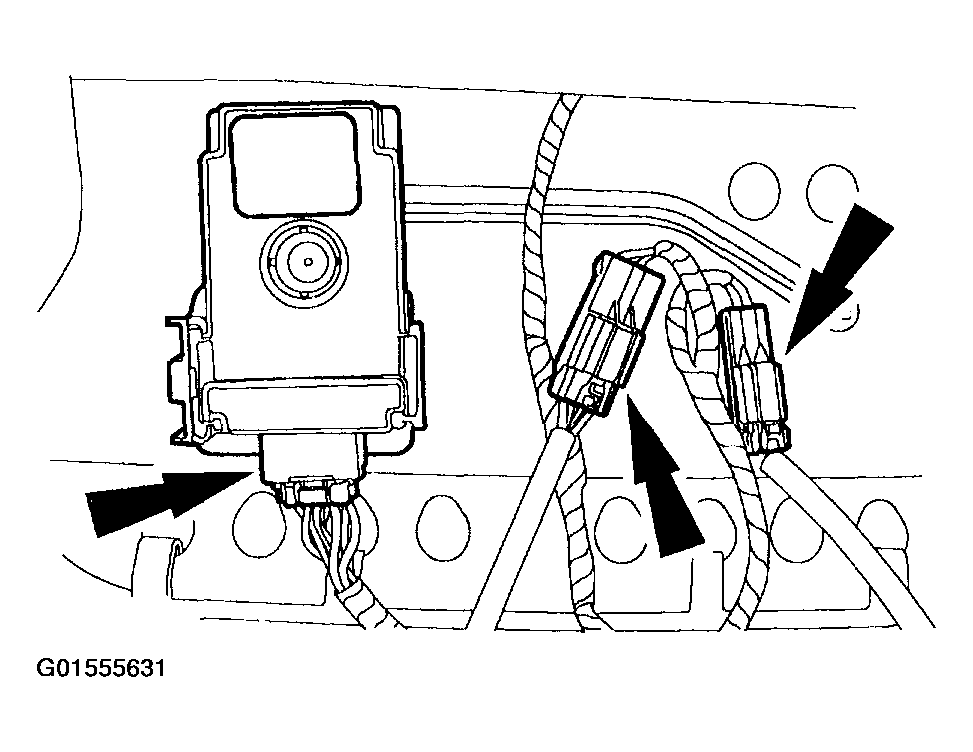

    Fig 3: Disconnecting Seat Heater Mats And Heated Seat Module Electrical Connectors
    G01555631Courtesy of FORD MOTOR CO.

    Power seats

  10. Remove the three trim support wire screws securing the trim cover side face to the seat track riser.

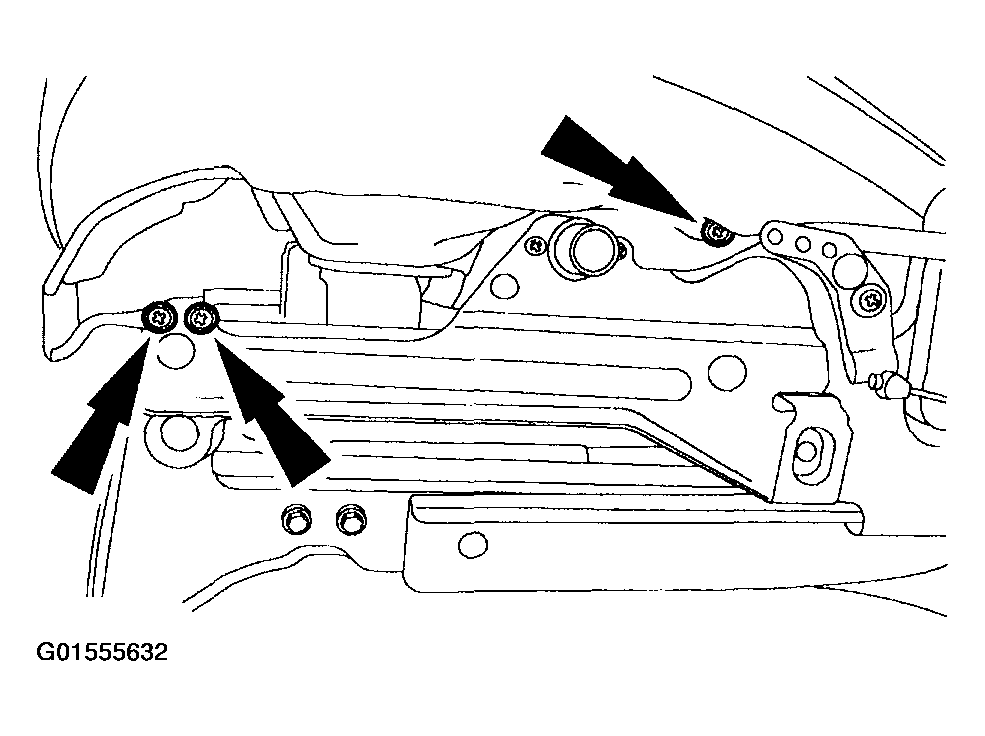

    Fig 4: Removing Three Trim Support Wire Screws
    G01555632Courtesy of FORD MOTOR CO.
  11. Disconnect power seat switch electrical connector and the seat actuator motors electrical connector. Release the electrical connectors from their cushion pan attachments.

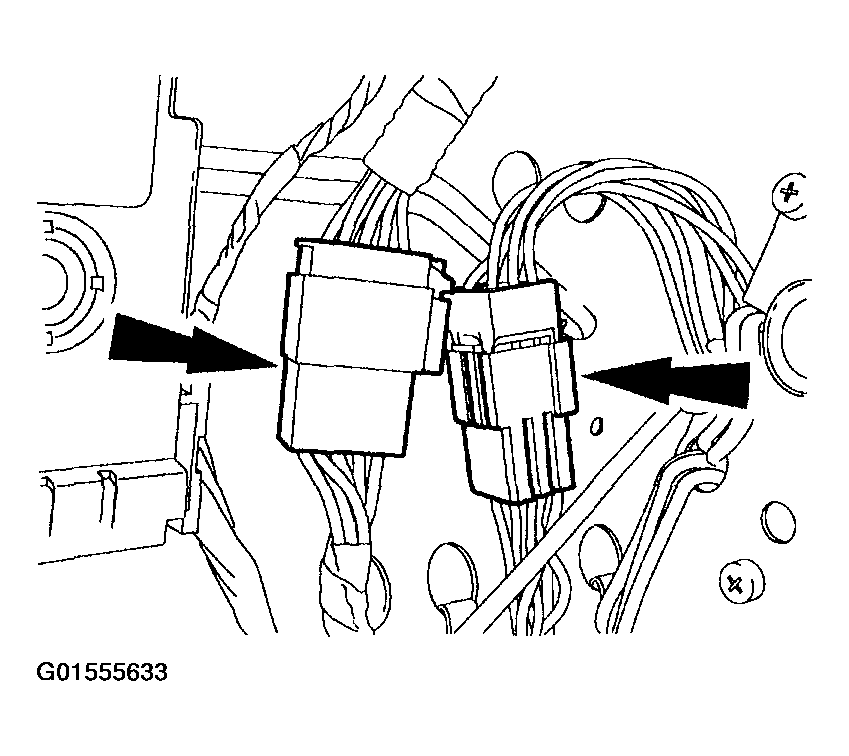

    Fig 5: Disconnecting Power Seat Switch Electrical Connector And Seat Actuator Motors Electrical Connector
    G01555633Courtesy of FORD MOTOR CO.

    All seats

  12. Remove the four seat cushion pan attachment bolts. Lift off the seat cushion assembly.

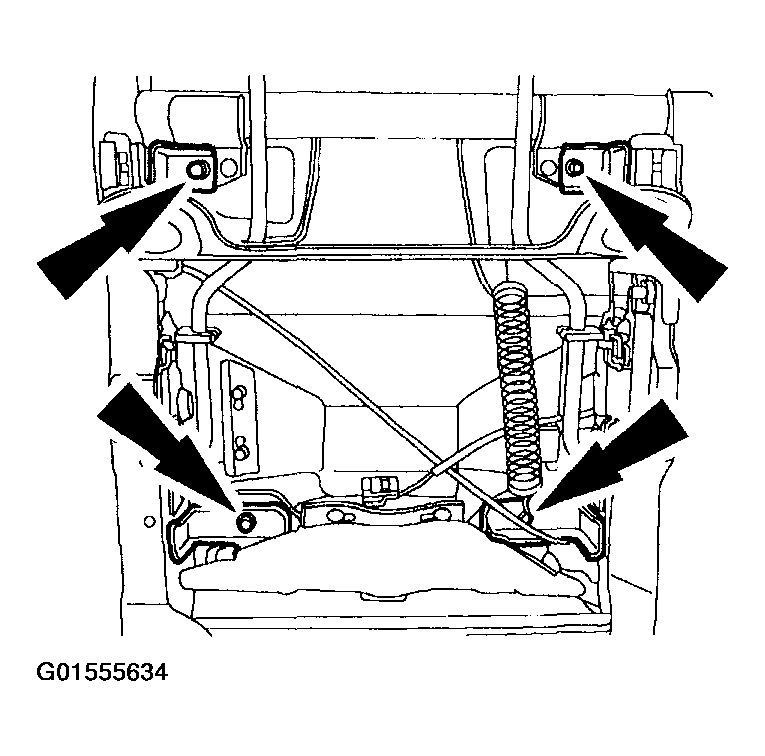

    Fig 6: Removing Four Seat Cushion Pan Attachment Bolts
    G01555634Courtesy of FORD MOTOR CO.
