Front Seat Cushion - With Seat Integrated Restraints (SIR): Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All seats

  1. Position the seat cushion. Install the four seat cushion bolts.
    NOTE: Make sure loose square reinforcement stampings are inserted between cushion pan front attachments and support brackets.

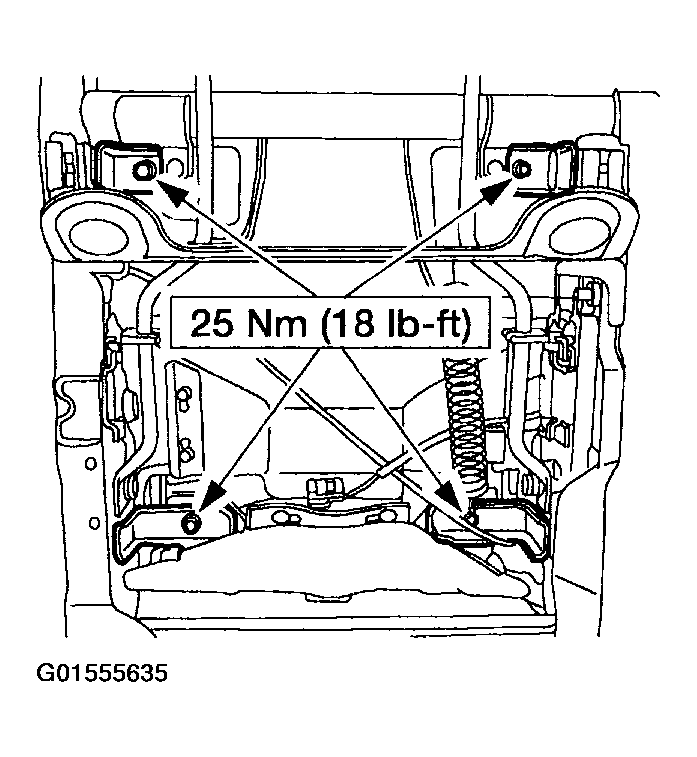

    Fig 1: Installing Seat Cushion Bolts
    G01555635Courtesy of FORD MOTOR CO.

    Power seats

  2. Connect power seat switch electrical connector and the seat actuator motors electrical connector. Attach the connectors to the cushion pan.

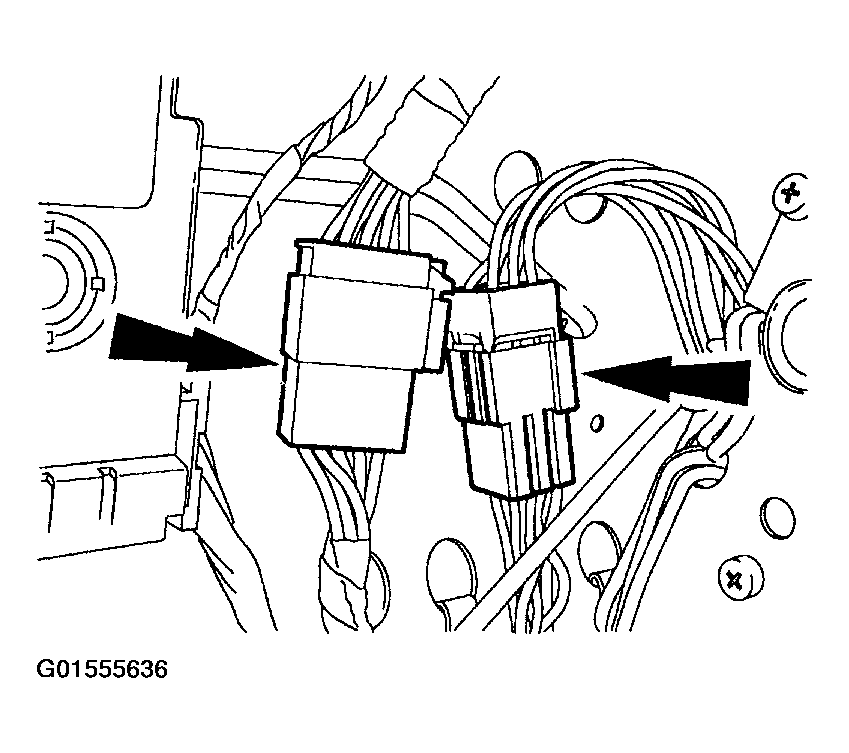

    Fig 2: Connecting Power Seat Switch Electrical Connector And Seat Actuator Motors Electrical Connector
    G01555636Courtesy of FORD MOTOR CO.
  3. Attach the three trim support wire screws that secure the trim cover side face to the seat track riser.

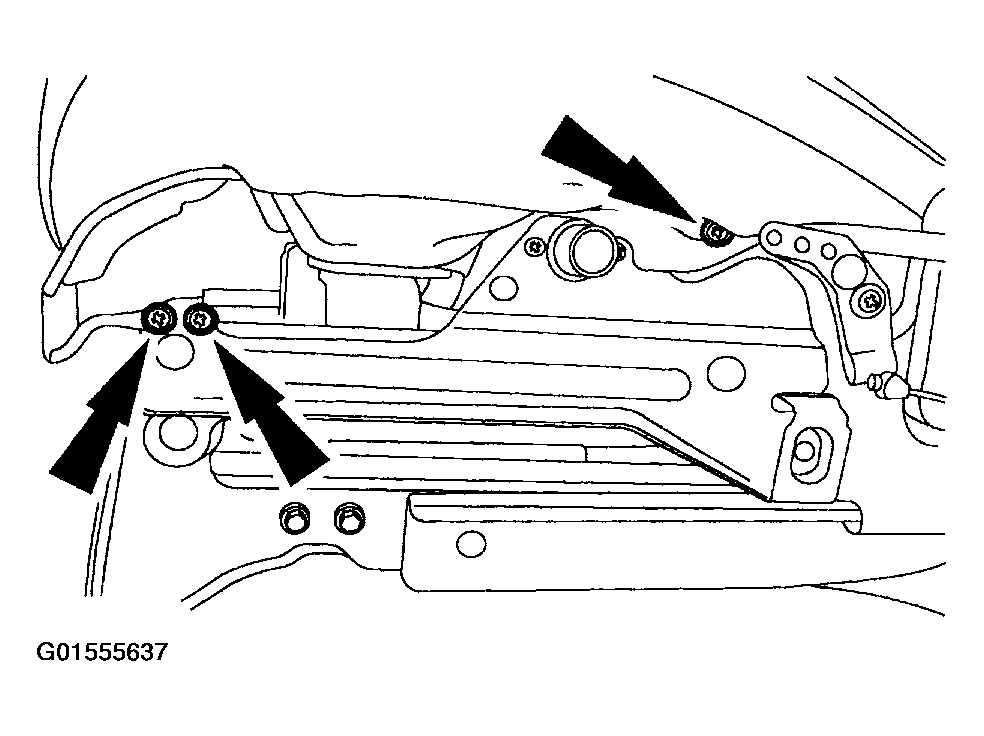

    Fig 3: Attaching Trim Support Wire Screws Trim Cover Side Face To Seat Track Riser
    G01555637Courtesy of FORD MOTOR CO.

    Heated seats

  4. Attach the components to the seat cushion pan. Connect seat heater mats and the heated seat module.

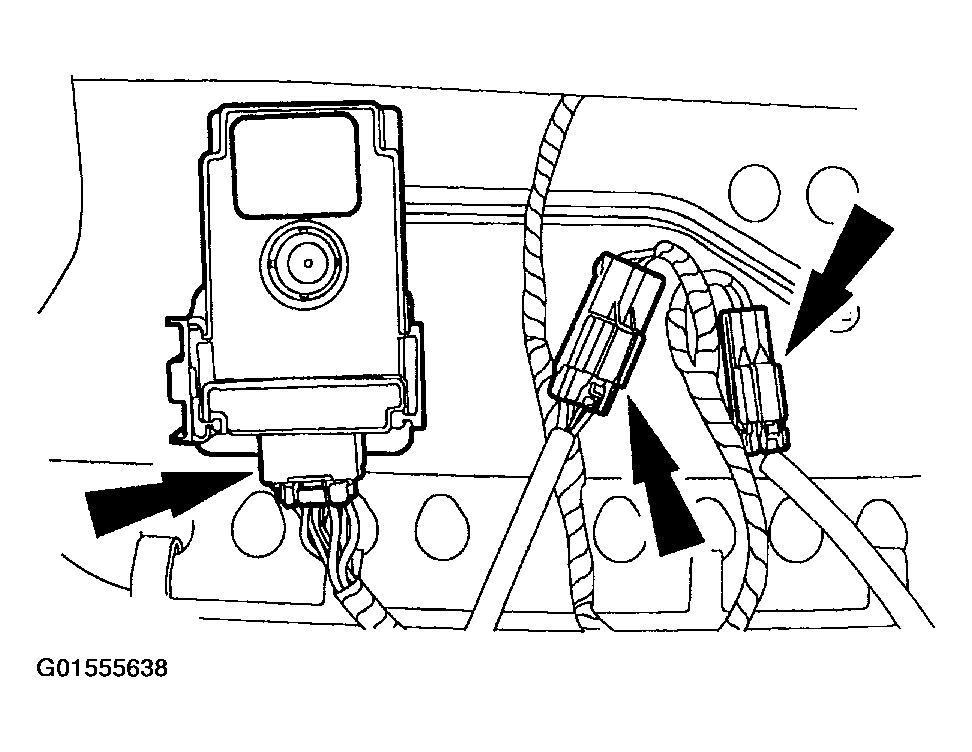

    Fig 4: Attaching Components To Seat Cushion Pan. Connect Seat Heater Mats And Heated Seat Module
    G01555638Courtesy of FORD MOTOR CO.
  5. Connect the heated seat control switch electrical connector.

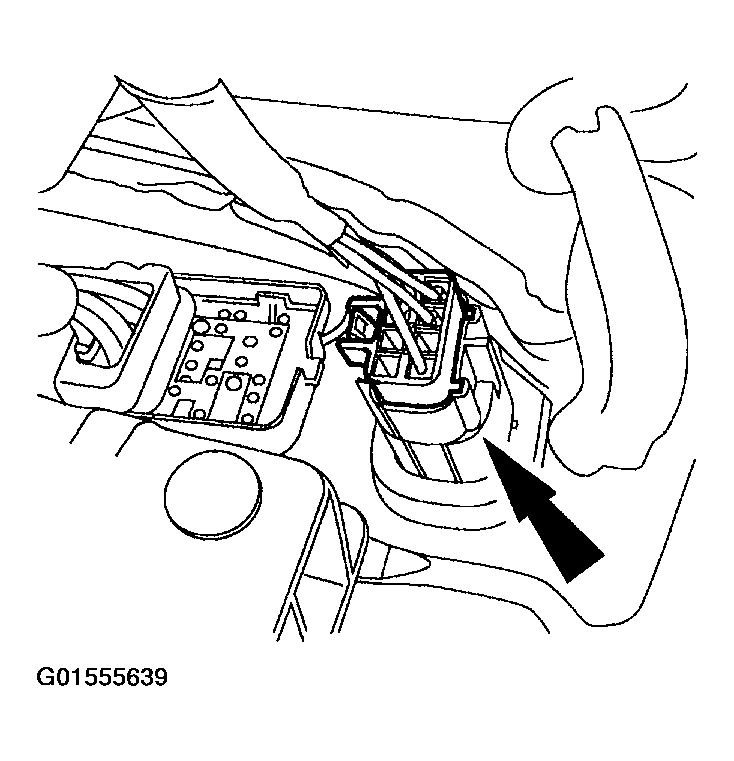

    Fig 5: Connecting Heated Seat Control Switch Electrical Connector
    G01555639Courtesy of FORD MOTOR CO.

    Power seats

  6. Position the seat control switch on the side trim panel. Install the two screws.

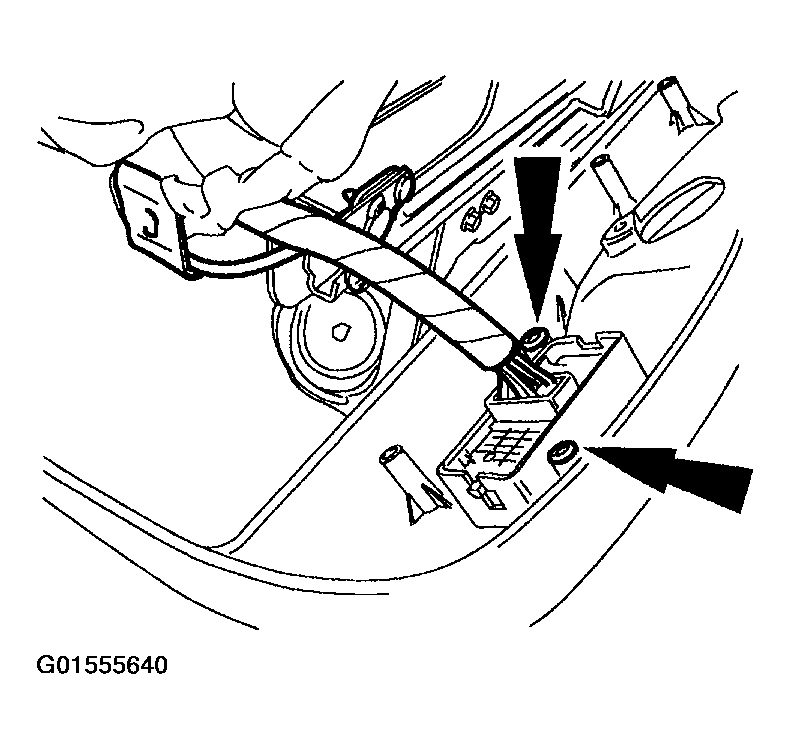

    Fig 6: Positioning Seat Control Switch On Side Trim Panel
    G01555640Courtesy of FORD MOTOR CO.

    Heated seats

  7. Connect the heated seat control switch electrical connector.
    Fig 7: Connecting Heated Seat Control Switch Electrical Connector
    G01555641Courtesy of FORD MOTOR CO.

    All seats

  8. Position the side trim cover. Install the three trim cover screws.
    • The seat backrest pivot bolt shaft must be inserted into the cover standoff.
      Fig 8: Installing Three Trim Cover Screws
      G01555642Courtesy of FORD MOTOR CO.
  9. Push the rearward lower corner of the side shield to engage the metal retaining clip.
  10. Position the lumbar adjuster control and install the two mounting screws. Install the adjuster knob.
    Fig 9: Installing Two Mounting Screws
    G01555643Courtesy of FORD MOTOR CO.
  11. Position the seat back recliner lever cover and install the screw.
    Fig 10: Positioning Seat Back Recliner Lever Cover
    G01555644Courtesy of FORD MOTOR CO.
  12. Install the front seat. Refer to FRONT SEAT - With Seat Integrated Restraints (SIR) .
    WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.
  13. Reactivate the supplemental restraint system (SRS). Refer to Supplemental Restraint System (SRS) Deactivation and Reactivation .
    WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
  14. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Refer to AIR BAG RESTRAINT SYSTEMS .
    WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  15. Check the active restraints for correct operation. Refer to SAFETY BELT SYSTEM .
