Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to FRONT SEAT - Bench .
  2. RH side shown, LH side similar.
    NOTE: Unclip the J-clips at the seat back hinge area.

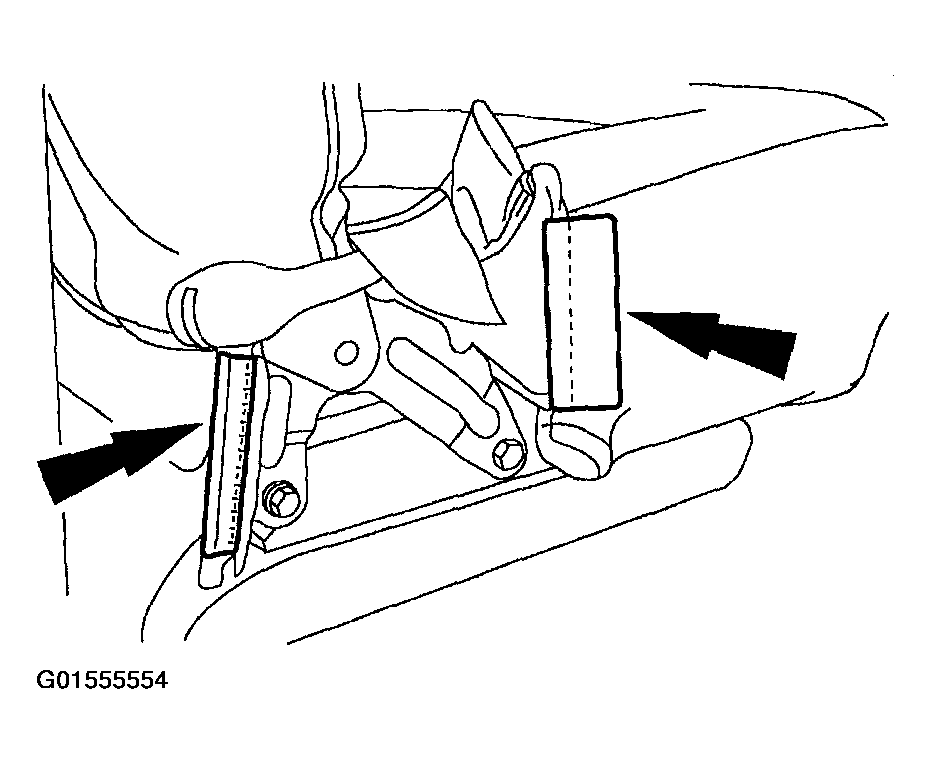

    Fig 1: Uncliping J-Clips At Seat Back Hinge Area
    G01555554Courtesy of FORD MOTOR CO.
  3. Remove the front seat back retaining bolts.
    NOTE: RH side shown, LH side similar.
    1. Remove the two bolts and the seat back.
      Fig 2: Removing Two Bolts And Seat Back
      G01555555Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
    Fig 3: Installing Bolts
    G01555556Courtesy of FORD MOTOR CO.
