Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front safety belts from the front seat. Refer to SAFETY BELT SYSTEM .
  2. Remove the retainers, disconnect the safety belt buckle electrical connector, and remove the front seat.
    NOTE: Removing the front seat requires more than one technician.

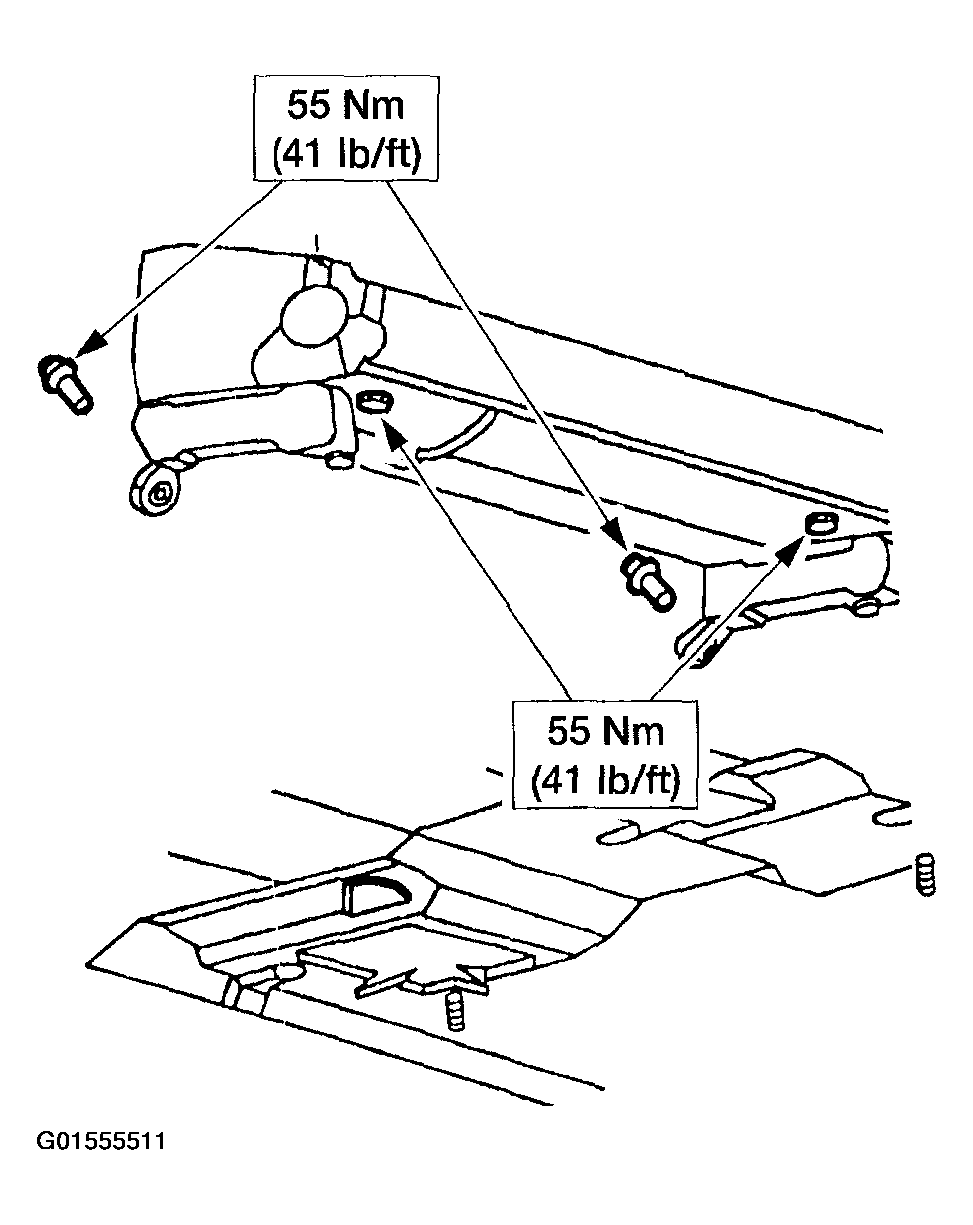

    Fig 1: Removing Retainers, Disconnect Safety Belt Buckle Electrical Connector
    G01555511Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    NOTE: When installing the seat, tighten the front mounting bolts, then the rear mounting nuts.
    • Adjust the seat to the full forward and rear ward positions a few times to assure safety belt and buckle accessibility.
    • Make sure the safety belt is not twisted prior to installation.
  4. Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .
