Rear Seat Cushion - Third Row: Disassembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble the third row seat. Refer to REAR SEAT BACKREST - Excursion, Third Row .

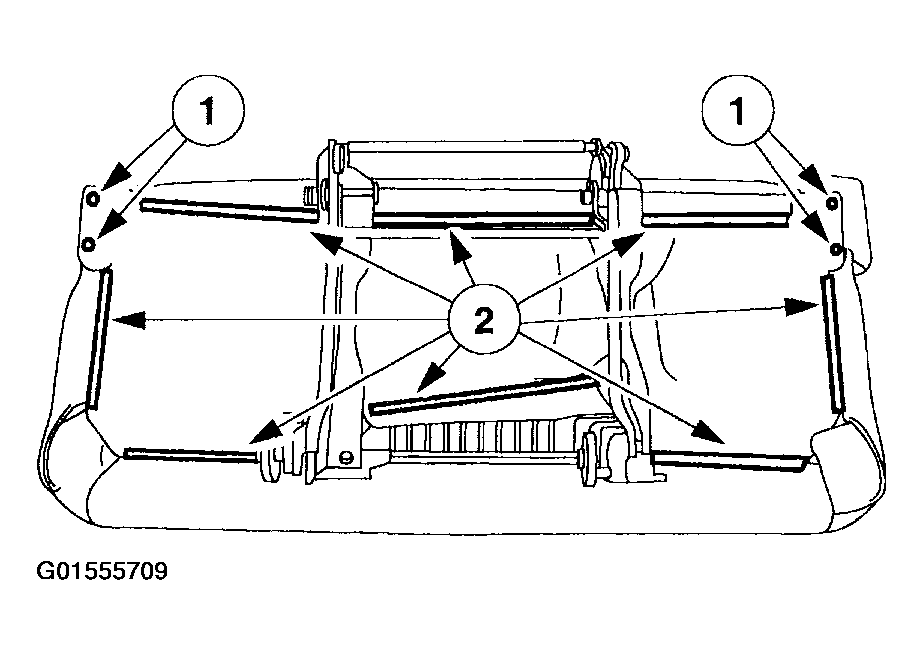

Remove the seat bottom cover.
1. Remove the four pin-type retainers.
2. Release the eight J-clips.

  Fig 1: Removing Seat Bottom Cover
  Courtesy of FORD MOTOR CO.

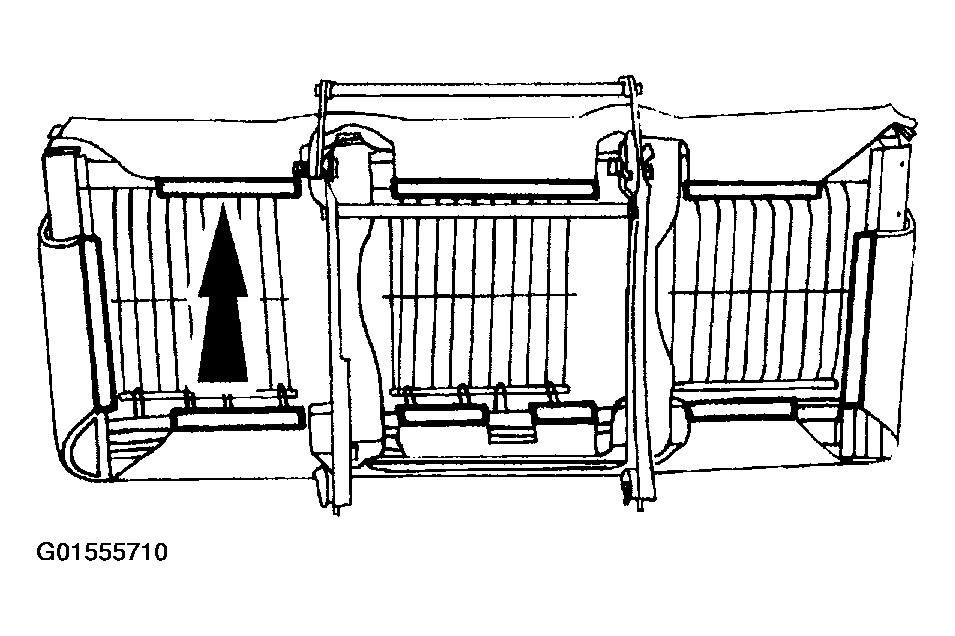

Remove the seat cushion trim cover and foam pad from the seat cushion frame.
- Unhook the J-clips.

  Fig 2: Removing Seat Cushion Trim Cover And Foam Pad From Seat Cushion Frame
  Courtesy of FORD MOTOR CO.
Position the upholstery back and remove the hog rings.

Fig 3: Removing Hog Rings
Courtesy of FORD MOTOR CO.
Remove the seat cushion trim cover from the seat cushion foam pad.
Remove the safety belts.
- Using the special tool, remove the two bolts.

  Fig 4: Removing Seat Cushion Trim Cover From Seat Cushion Foam Pad
  Courtesy of FORD MOTOR CO.

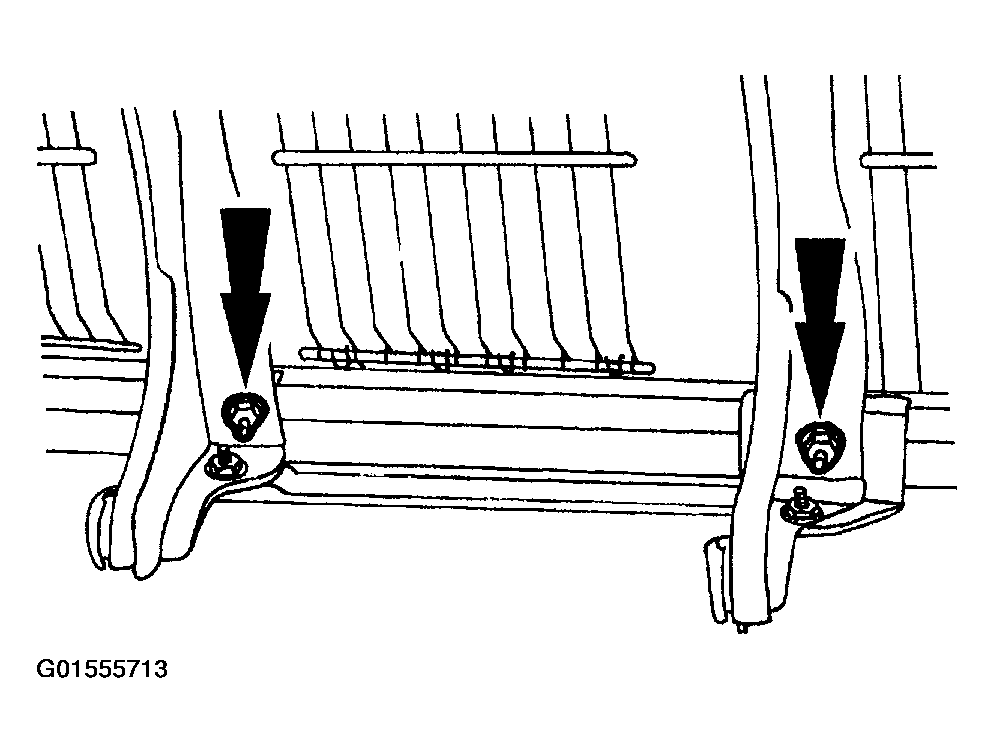

Remove the seat riser.
- Remove the nuts.

  Fig 5: Removing Nuts
  Courtesy of FORD MOTOR CO.

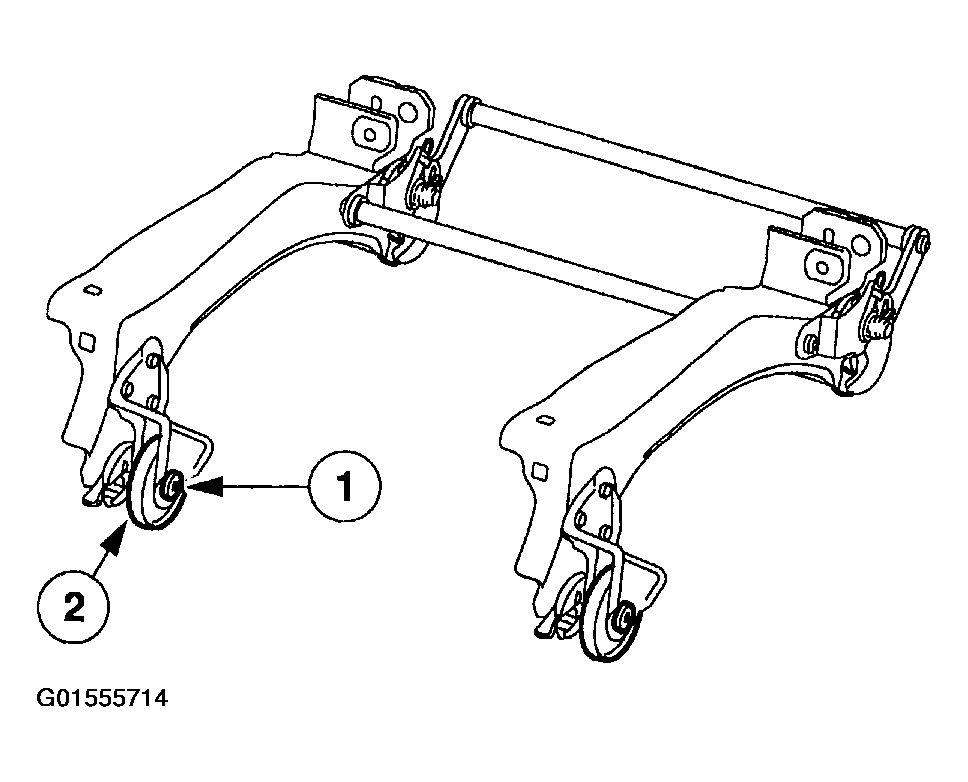

Remove the four seat rollers.
1. Remove the four bolts.
2. Remove the four wheels.

  Fig 6: Removing Four Seat Rollers
  Courtesy of FORD MOTOR CO.
