Rear Seat Cushion - Third Row: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

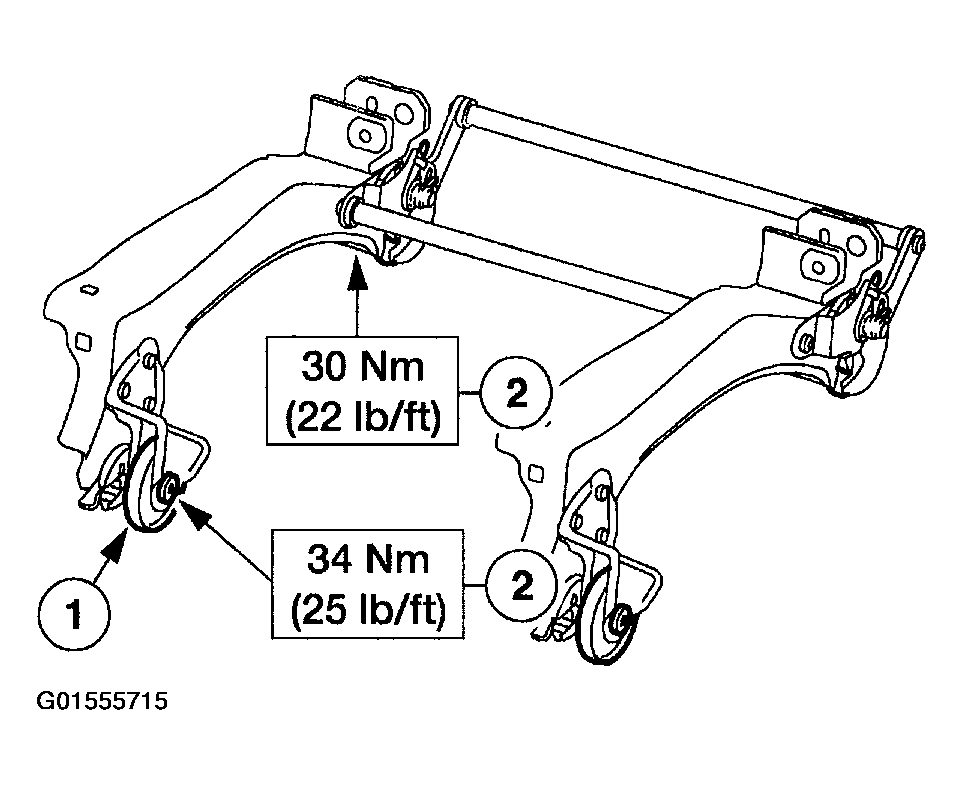

Install the four seat rollers.
NOTE: The front wheels are larger than the rear wheels.
1. Position the four rollers.
2. Install the four bolts.

  Fig 1: Installing Seat Rollers
  Courtesy of FORD MOTOR CO.

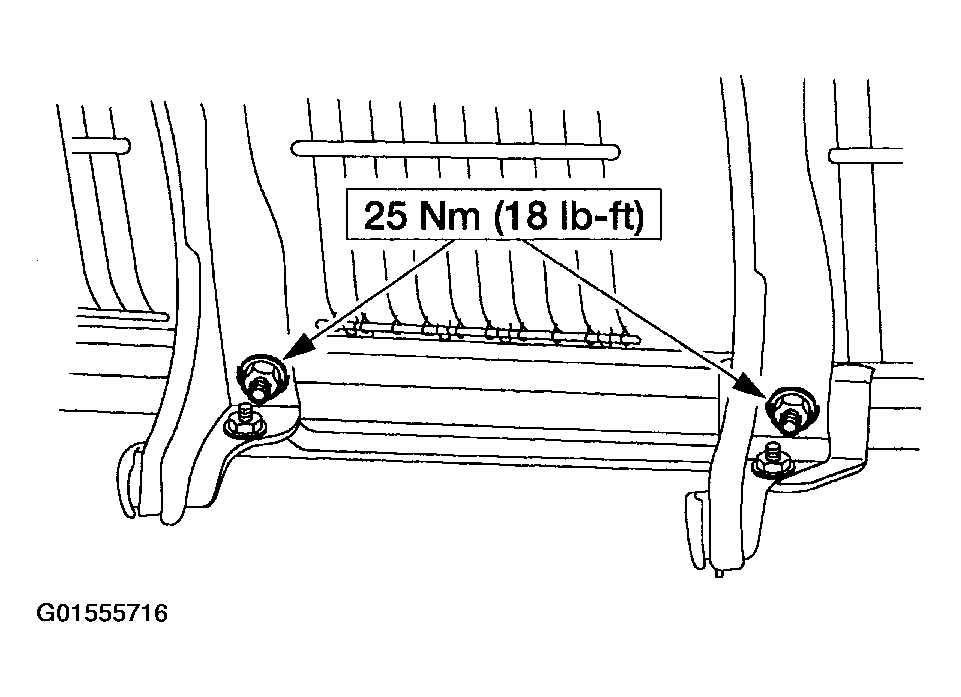

Install the seat riser.
- Install the nuts.

  Fig 2: Installing Seat Riser
  Courtesy of FORD MOTOR CO.

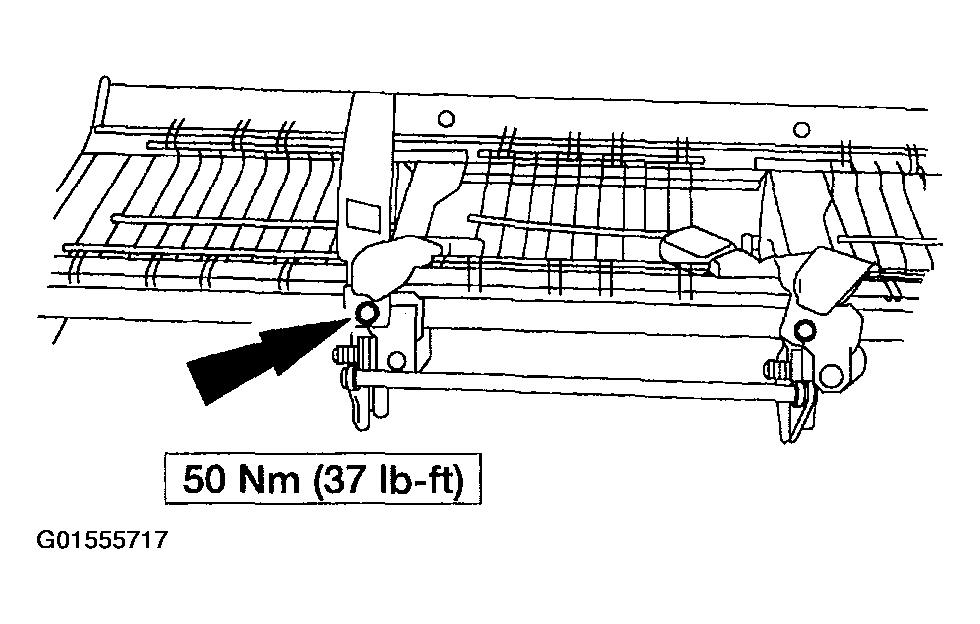

Install the safety belts.
- Using the special tool, install the bolts.

  Fig 3: Installing Bolts
  Courtesy of FORD MOTOR CO.
Install the seat cushion trim cover onto the seat cushion foam pad.
Install the hog rings.

Fig 4: Installing Seat Cushion Trim Cover Onto Seat Cushion Foam Pad
Courtesy of FORD MOTOR CO.

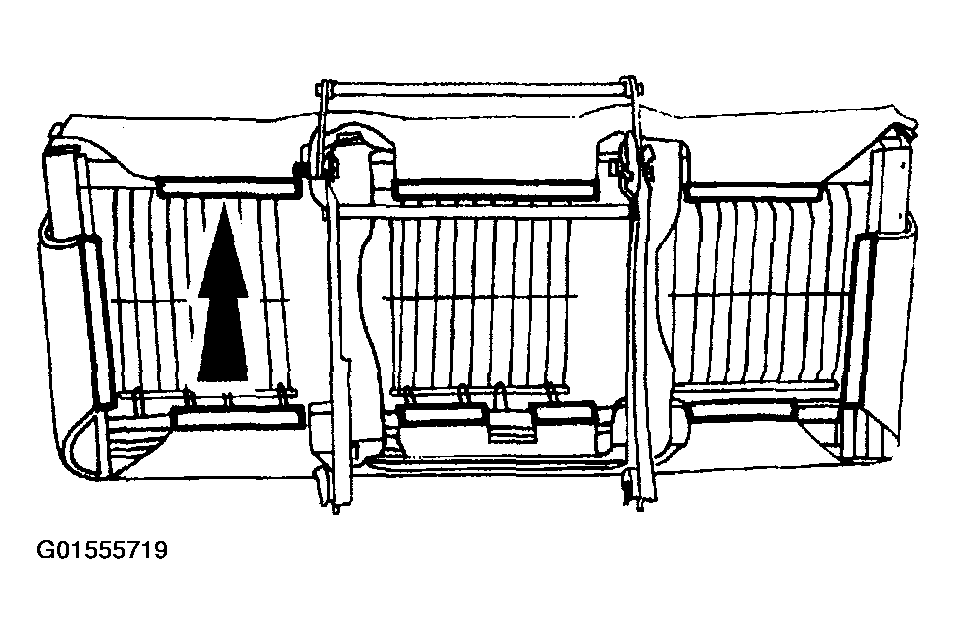

Install the seat cushion frame into the seat cushion trim cover and foam pad.
- Connect the J-clips.

  Fig 5: Installing Seat Cushion Frame Into Seat Cushion Trim Cover And Foam Pad
  Courtesy of FORD MOTOR CO.

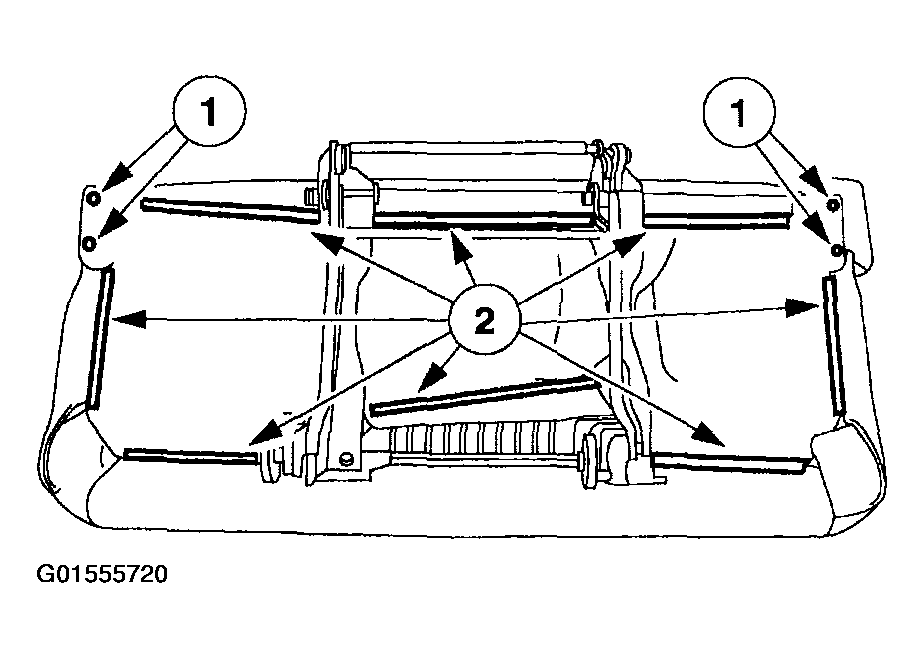

Install the seat bottom cover.
1. Connect the J-clips.
2. Install the four pin-type retainers.

  Fig 6: Installing Seat Bottom Cover
  Courtesy of FORD MOTOR CO.
Assemble the third row seat. Refer to REAR SEAT BACKREST - Excursion, Third Row .
