Rear Seat Cushion - Excursion, Second Row, 60 Percent: Disassembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat cushion. Refer to REAR SEAT CUSHION - Excursion, Second Row .
Unclip the J-clips and remove the hog rings.

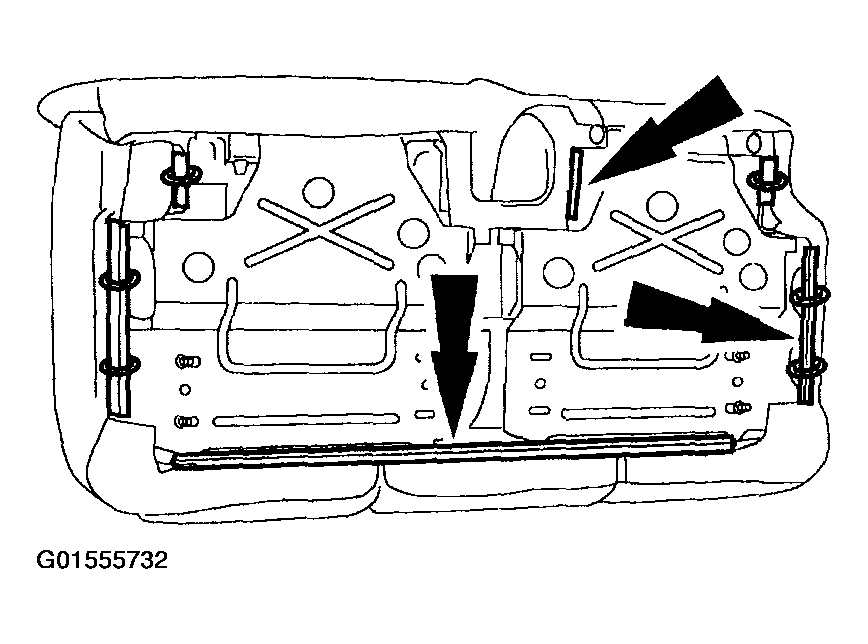

Fig 1: Uncliping J-Clips
Courtesy of FORD MOTOR CO.
Remove the guide pins.

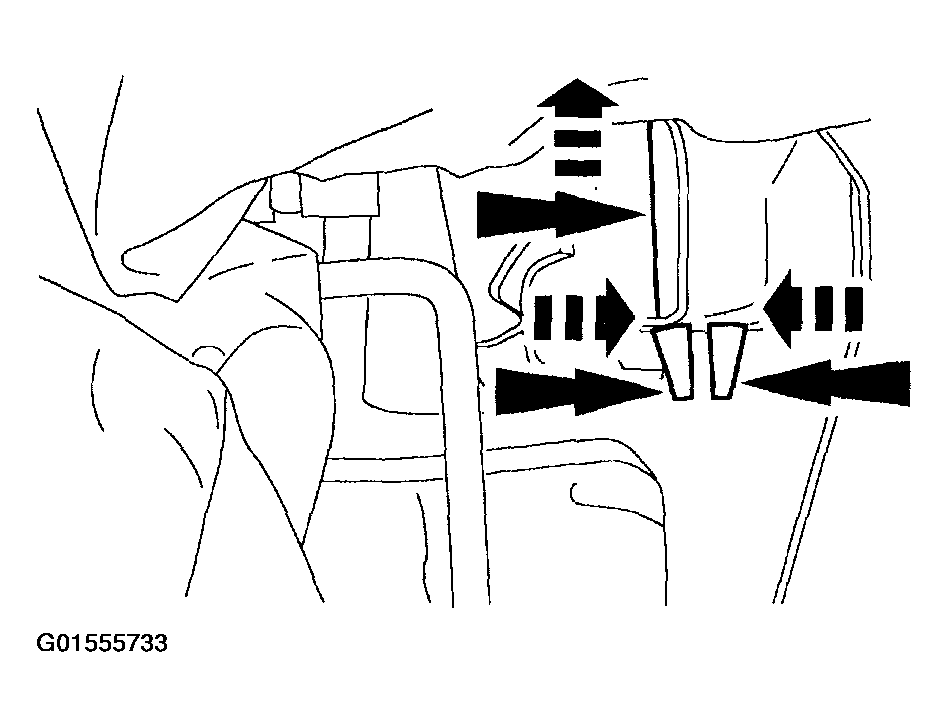

Fig 2: Removing Guide Pins
Courtesy of FORD MOTOR CO.
Remove the seat cushion foam pad from the seat frame.
Position the upholstery back and remove the hog rings.

Fig 3: Removing Hog Rings
Courtesy of FORD MOTOR CO.
Remove the upholstery from the seat cushion foam pad.
