Disassembly and Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cushion. Refer to REAR SEAT CUSHION - Excursion, Second Row .
  2. Position the seat bottom cover, then unclip the J-clips and remove the hog rings.

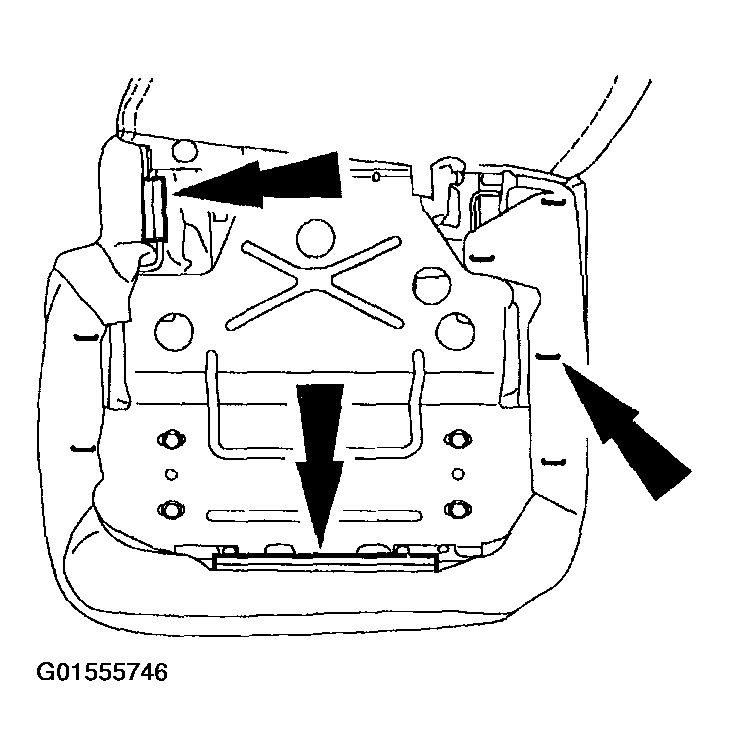

    Fig 1: Uncliping J-Clips
    G01555746Courtesy of FORD MOTOR CO.
  3. Remove the headrest guide pins.

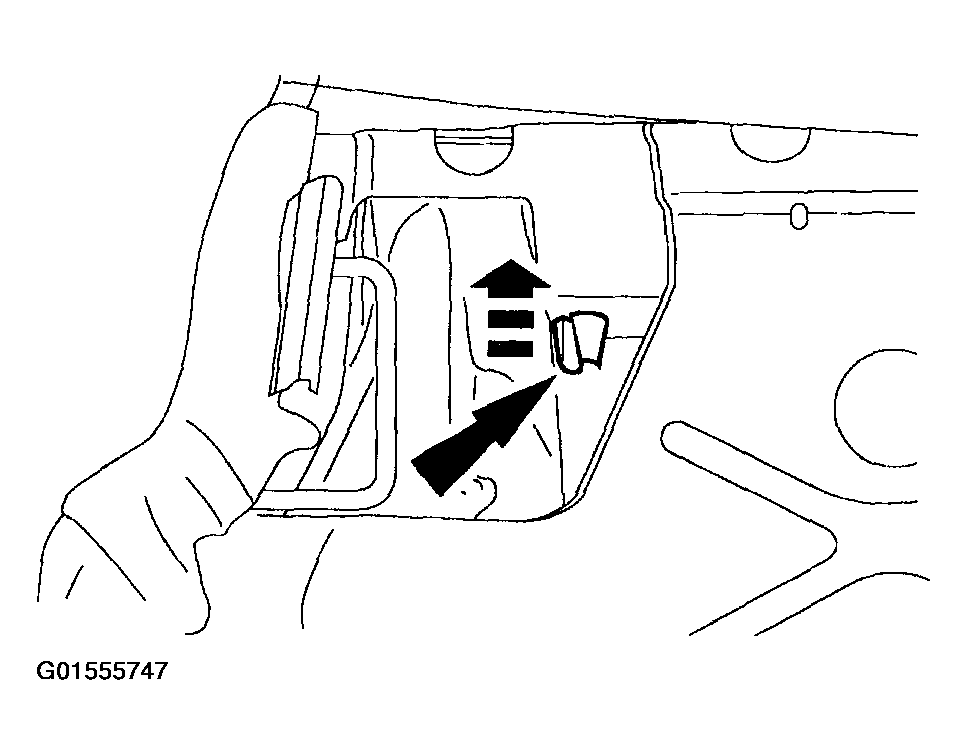

    Fig 2: Removing Headrest Guide Pins
    G01555747Courtesy of FORD MOTOR CO.
  4. Remove the seat cushion from the seat frame.
  5. Position the upholstery back and remove the hog rings.
    Fig 3: Removing Seat Cushion From Seat Frame
    G01555748Courtesy of FORD MOTOR CO.
  6. Remove the upholstery from the seat cushion foam pad.
  7. To assemble, reverse the disassembly procedure.
